Multiport Fuel Injection System
>>
System Diagram
System Diagram

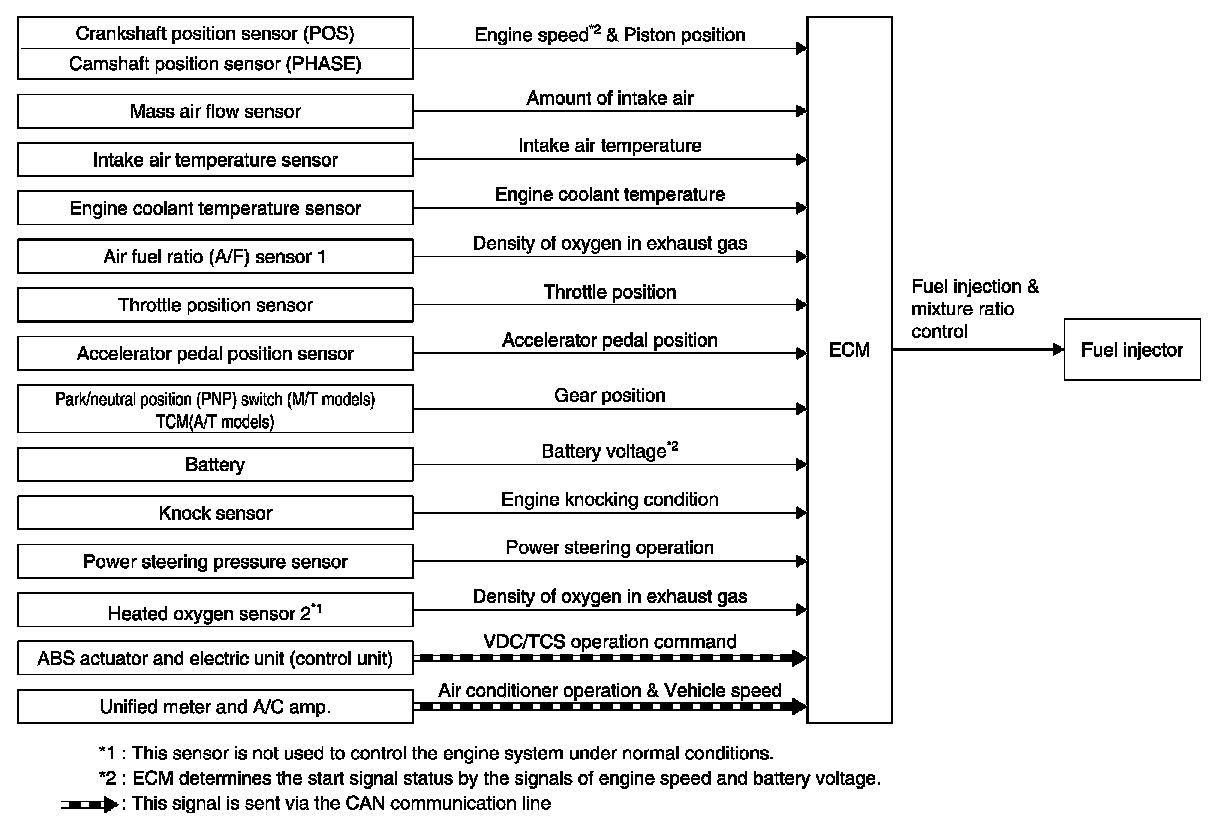

MULTIPORT FUEL INJECTION SYSTEM
System Diagram
