Reading and Clearing Diagnostic Trouble Codes

TROUBLE DIAGNOSIS


Self-Diagnosis

If communication signals cannot be transmitted or received among units communicating via CAN communication line, CAN communication-related DTC is displayed on the CONSULT-III "Self Diagnostic Result" screen.

NOTE:

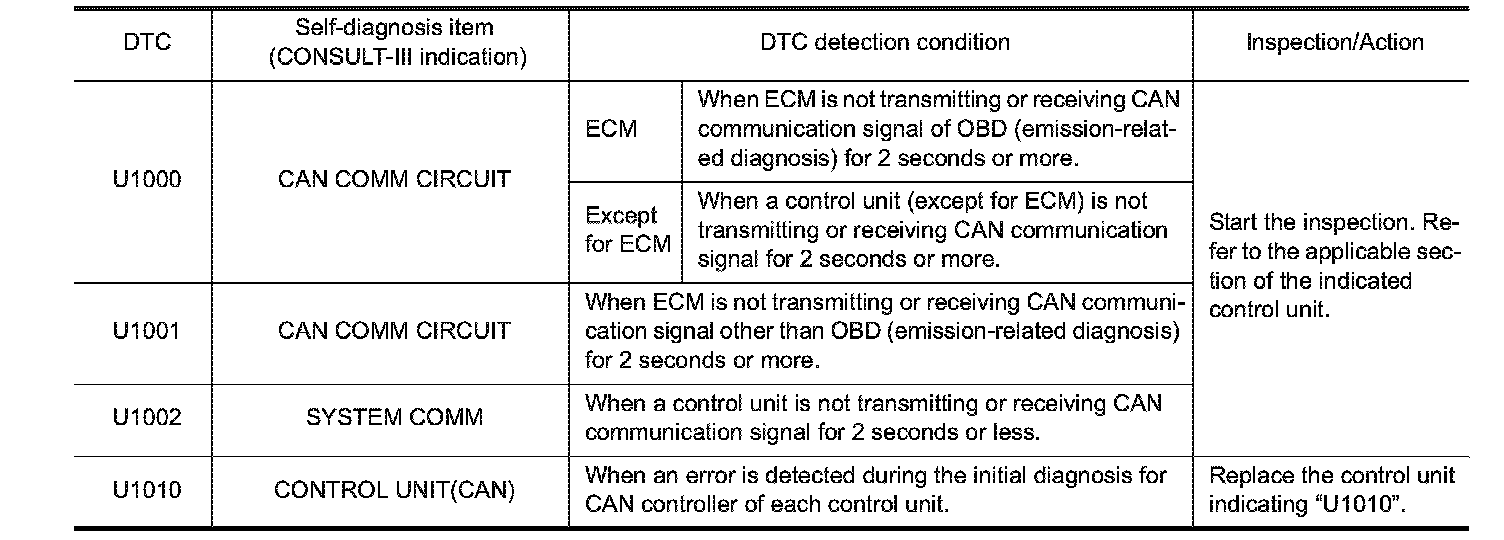

The following table shows examples of CAN communication-related DTC. For other DTC, refer to the applicable sections.
