CAN Diagnostic Support Monitor

TROUBLE DIAGNOSIS


CAN Diagnostic Support Monitor

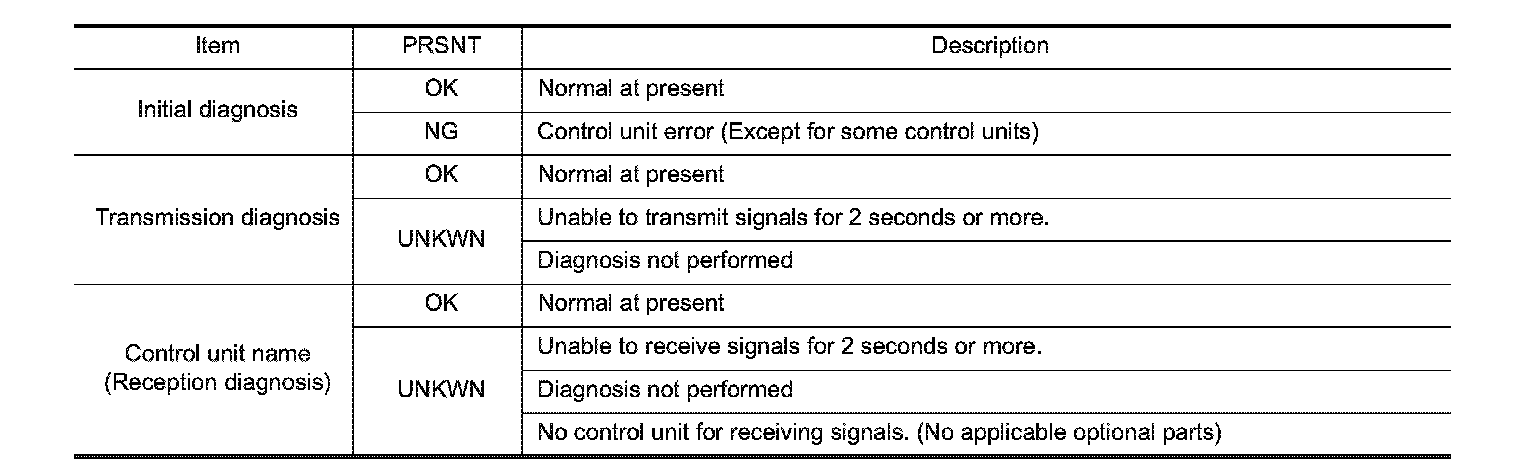

MONITOR ITEM (CONSULT-III)

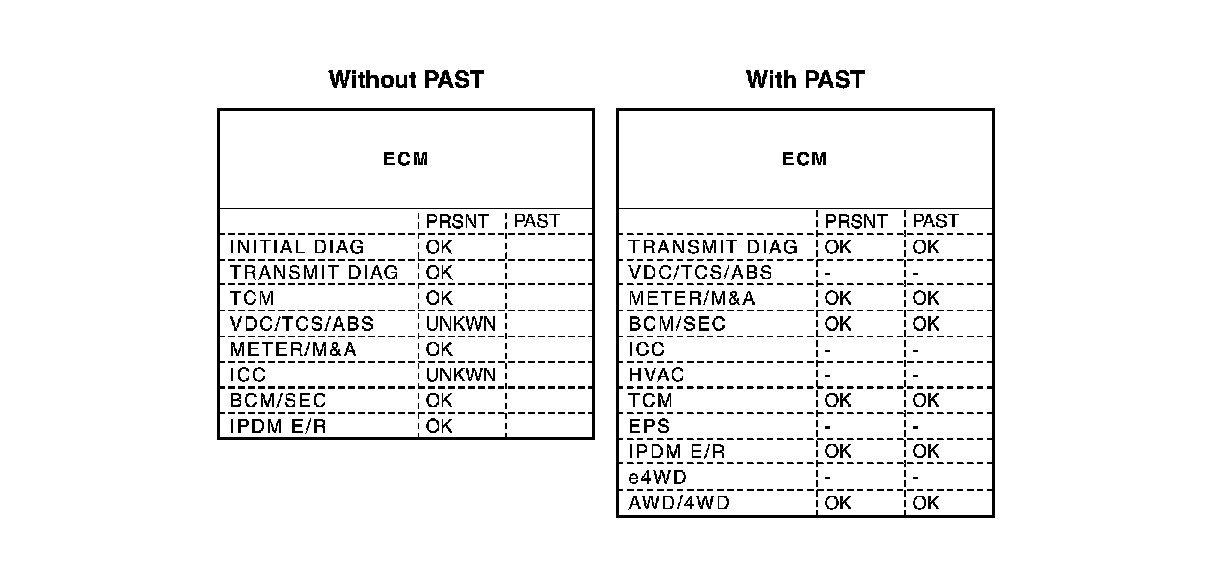

Example: CAN DIAG SUPPORT MNTR indication






Without PAST

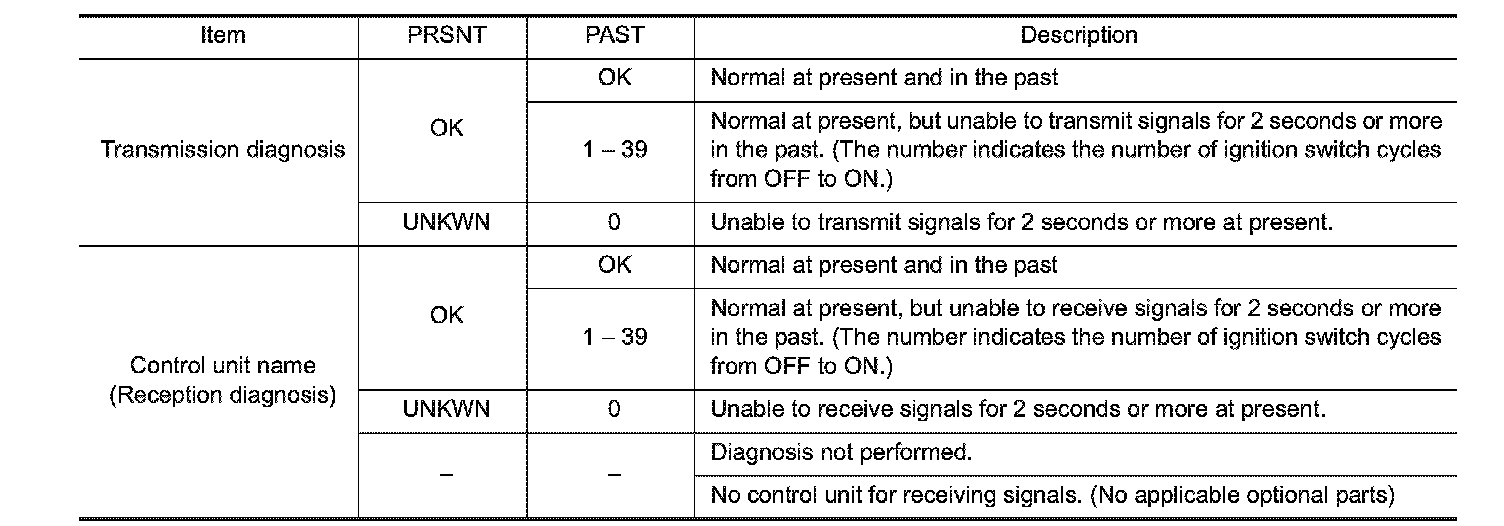

With PAST

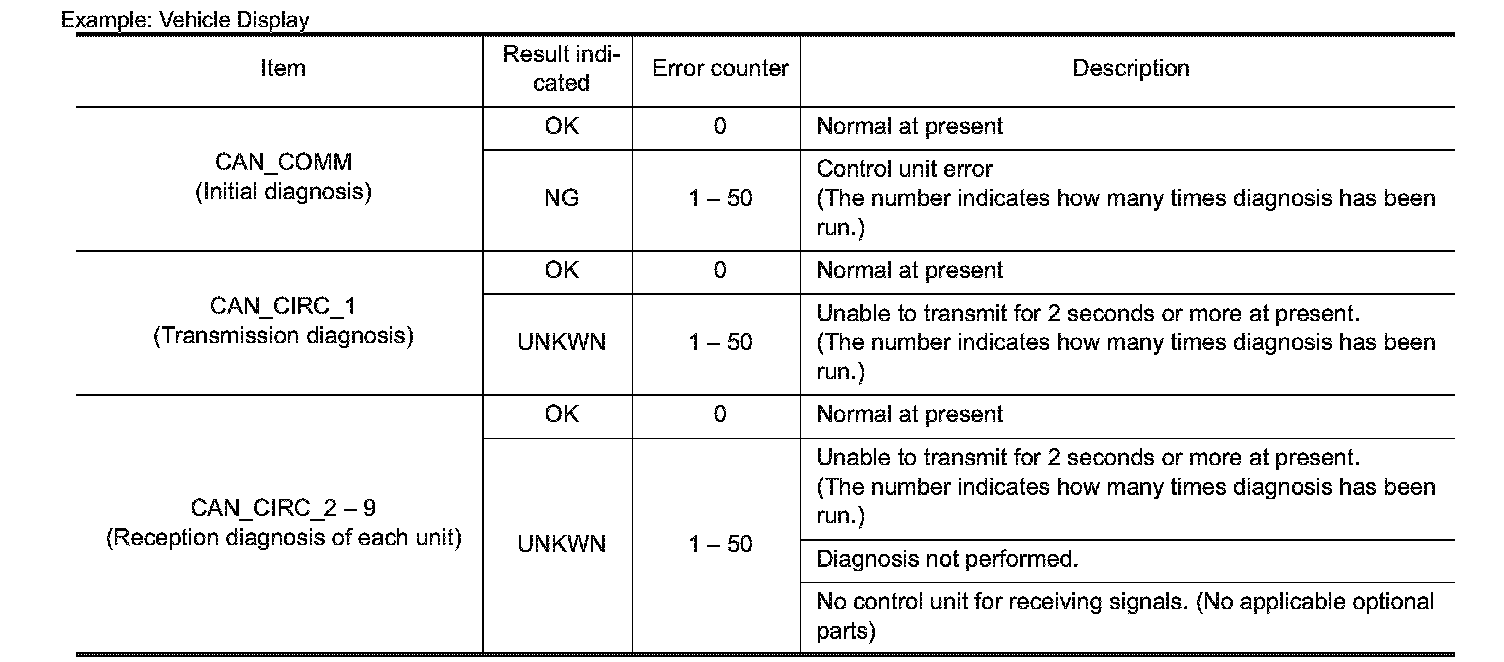

MONITOR ITEM (ON-BOARD DIAGNOSIS)

NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor.
