Removal And Installation

POWER SOCKET


FRONT POWER SOCKET : Removal and Installation


REMOVAL
1. Remove console finisher assembly. .

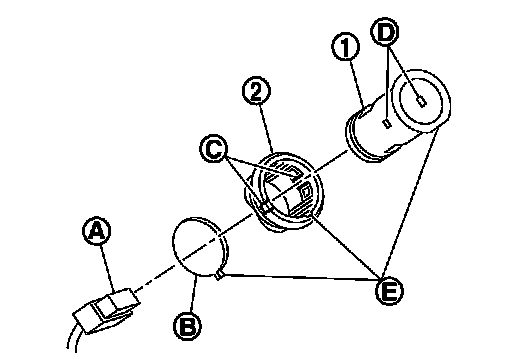

2. Disconnect power socket connector (A).

B : Hole for power socket (Console finisher assembly)
E : Cut out

3. Pull out inner socket (1) by pushing the ring pawl (C) from the inner socket hole (square) (D).
4. Remove ring (2) from console finisher assembly while pressing pawls.

INSTALLATION
Install in the reverse order of removal.

NOTE:
Align the cut outs of inner socket, ring and console finisher assembly.
