Exploded View

CIGARETTE LIGHTER

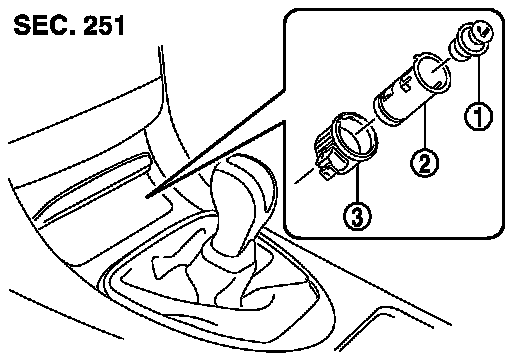

Exploded View

1 : Cigarette lighter
2 : Cigarette lighter socket
3 : Cigarette lighter ring
