Removal And Installation

SPARK PLUG


Removal and Installation


REMOVAL
1. Remove engine cover with power tool. Exploded View.
2. Remove air cleaner case and air duct (RH and LH). Exploded View.
3. Remove electric throttle control actuator. Exploded View.
4. Remove ignition coil. Removal And Installation.

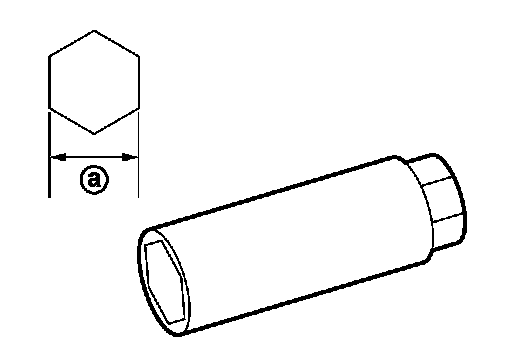

5. Remove spark plug with a spark plug wrench (commercial service tool).

a : 14 mm (0.55 in)


INSTALLATION
Installation is the reverse order of removal.
