Low-Pressure Pipe 1 And High-Pressure Pipe 2 Removal And Installation

COOLER PIPE AND HOSE


LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2 LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2 : Removal and Installation


REMOVAL
1. Set the temperature at 18.0�C (60�F).

CAUTION:
The angle may be out, when installing the air mix door motor to the air mix door, unless the above procedure is performed.
2. Disconnect the battery cable from the negative terminal.
3. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
4. Remove cowl top cover. Exploded View.
5. Disconnect one-touch joint between low-pressure pipe 1 and low-pressure pipe 2 with disconnector (SST:
J-45815).

CAUTION:
Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.
6. Disconnect one-touch joints between high-pressure pipe 1 and high-pressure pipe 2 with disconnector
(SST: J-45815).

CAUTION:
Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.
7. Remove foot grille (right). Exploded View.
8. Remove blower unit. Exploded View.
9. Remove air mix door motor (passenger side). Door Motor.
10. Remove mode door motor. Door Motor.
11. Remove main link (right) and max. cool door link (right). Door Motor.

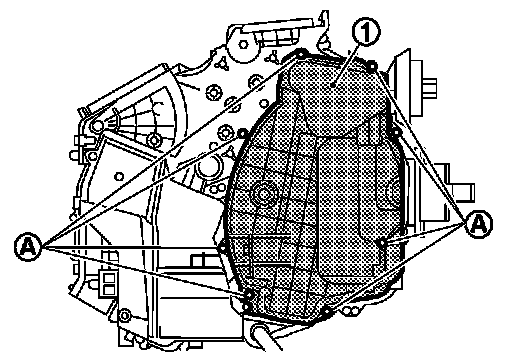

12. Remove mounting screws (A), and then remove evaporator cover (1).
13. Remove mounting bolt, and then remove low-pressure pipe 1 and high-pressure pipe 2.

CAUTION:
Cap or wrap the joint of the A/C piping and expansion valve with suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Replace O-rings with new ones. Then apply compressor oil to them when installing.
- Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping straight in axial direction.
- Insert piping securely until a click is heard.
- After piping connection is completed, pull male-side piping by hand to check that connection does not come loose.
- Check for leakages when recharging refrigerant.
