With Daytime Running Light System

PARKING LAMP CIRCUIT - WITH DAYTIME RUNNING LIGHT SYSTEM





Component Function Check
1.CHECK PARKING LAMP OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Activate IPDM E/R auto active test. Diagnosis Description.
2. Check that the parking lamp is turned ON.
CONSULT-III ACTIVE TEST
1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.
2. With operating the test items, check that the parking lamp is turned ON.

TAIL : Parking lamp ON
Off : Parking lamp OFF

Is the parking lamp turned ON?
YES - Parking lamp circuit is normal.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK PARKING LAMP BULB AND FRONT SIDE MARKER LAMP
Check the applicable lamp bulb.
Is the bulb normal?
YES - GO TO 2.
NO - Replace the bulb.
2.CHECK PARKING LAMP OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Remove the daytime running light relay.
3. Disconnect the front combination lamp connector.
4. Check continuity between the daytime running light relay harness connector and the front combination lamp harness connector.





Does continuity exist?
YES - GO TO 3.
NO - Repair the harnesses or connectors.
3.CHECK PARKING LAMP SHORT CIRCUIT

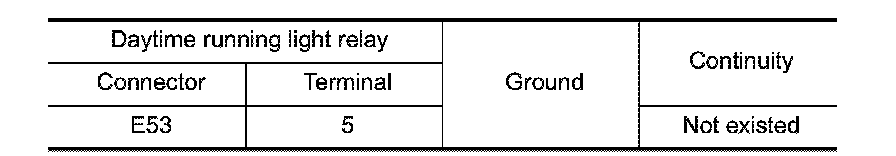

Check continuity between the daytime running light relay harness connector and the ground.





Does continuity exist?
YES - Repair the harnesses or connectors.
NO - GO TO 4.
4.CHECK PARKING LAMP GROUND OPEN CIRCUIT

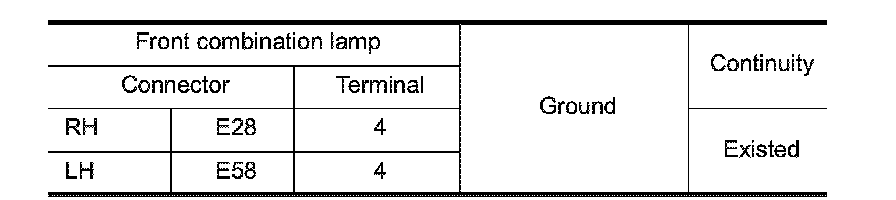

Check continuity between the front combination lamp harness connector and the ground.





Does continuity exist?
YES - Check corresponding bulb socket and harness. Repair or replace if necessary.
NO - Repair the harnesses or connectors.
