Exterior Lamp Fuse

EXTERIOR LAMP FUSE





Description









Diagnosis Procedure
1.CHECK FUSE

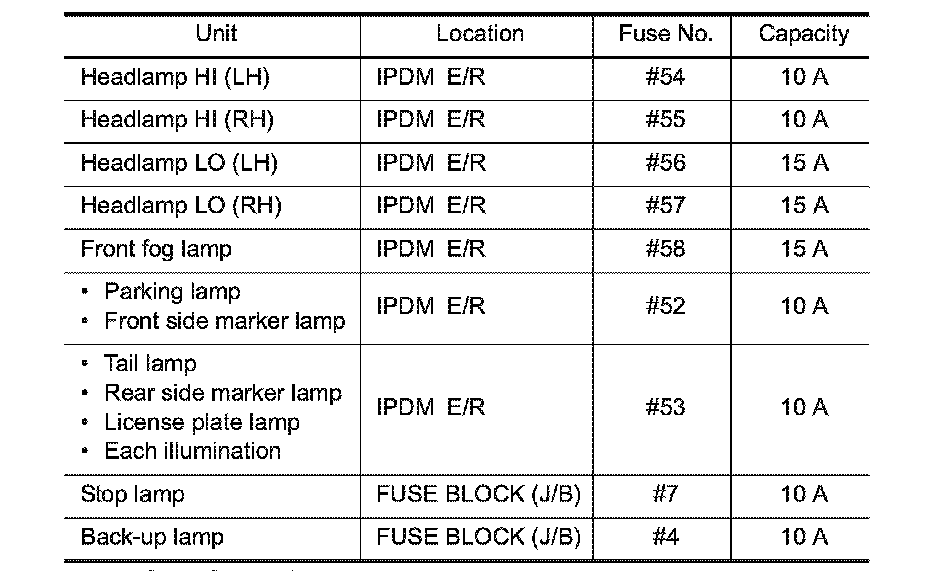

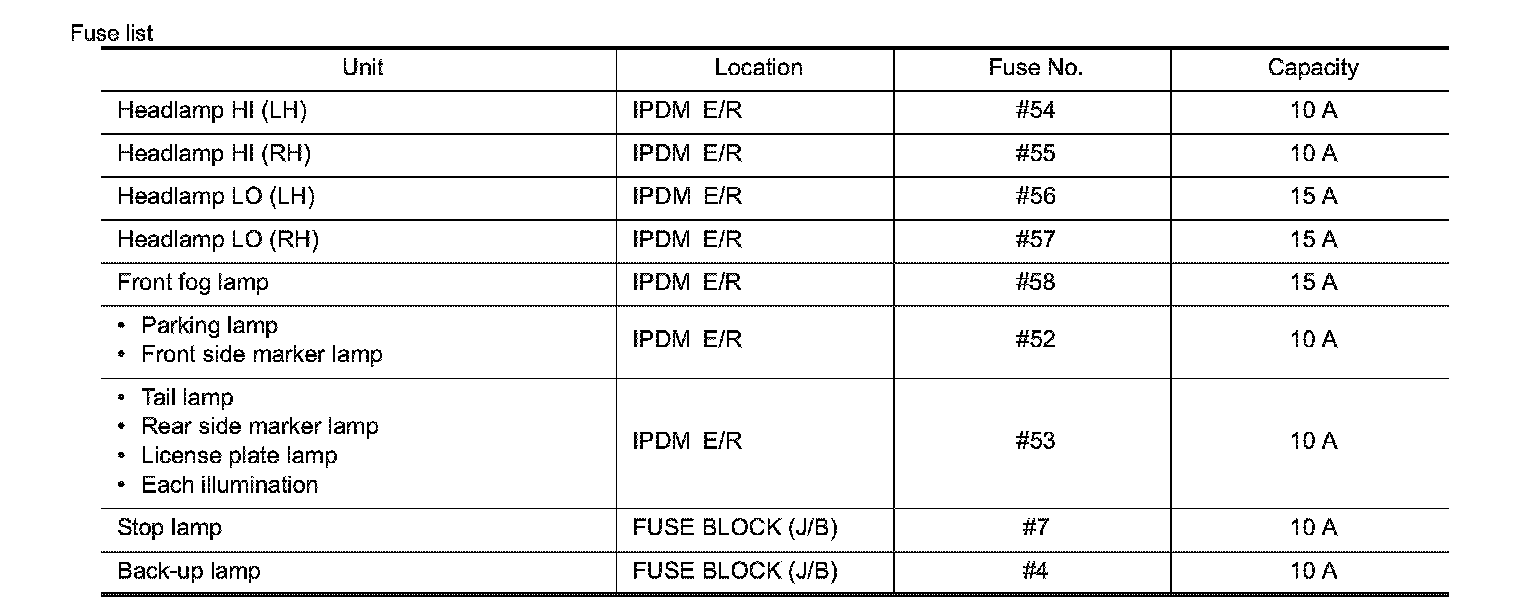

Check that the following fuses are not fusing.





Is the fuse fusing?
YES - Repair the applicable circuit. And then replace the fuse.
NO - The fuse is normal.
