Removal And Installation





MAP LAMP


Removal and Installation


REMOVAL

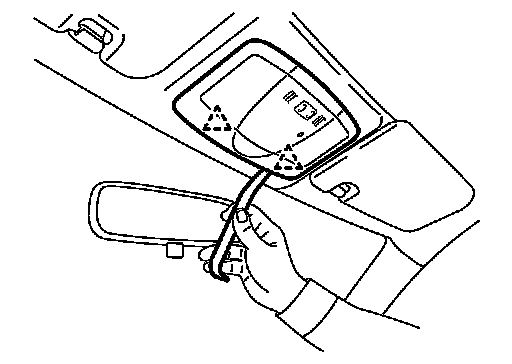

1. Insert any appropriate tool the gap between the map lamp and the roof front finisher.





Triangle: Metal clip

2. Disconnect the connector. Remove the map lamp.

INSTALLATION
Install in the reverse order of removal.
