Disassembly And Assembly

MAP LAMP


Disassembly and Assembly


DISASSEMBLY

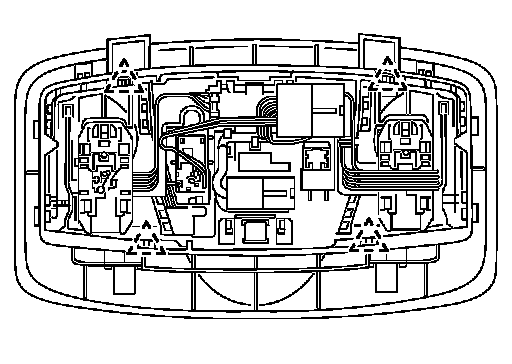

1. Disengage pawls.





Triangle: Pawl

2. Remove the map lamp housing.
3. Remove the lens.
4. Remove the bulb.

ASSEMBLY
Assemble in the reverse order of disassembly.
