Both Side Headlamps (Lo) Are Not Turned On

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON





Description
The headlamps (both sides) are not turned ON in any condition.




Diagnosis Procedure
1.COMBINATION SWITCH INSPECTION
Check the combination switch. Symptom Related Diagnostic Procedures.
Is the combination switch normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning part.
2.CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR

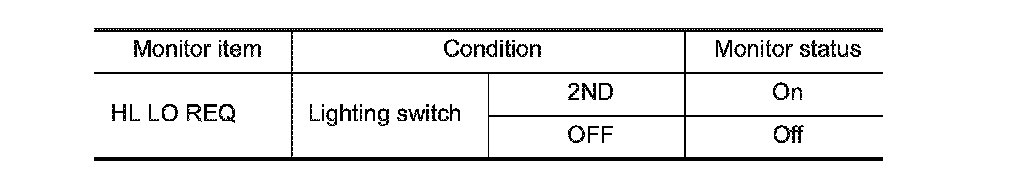

1. Select "HL LO REQ" of IPDM E/R data monitor item.
2. With operating the lighting switch, check the monitor status.





Is the item status normal?
YES - GO TO 3.
NO - Replace BCM.
3.HEADLAMP (LO) CIRCUIT INSPECTION
Check the headlamp (LO) circuit. Headlamp (Lo) Circuit Headlamp (Lo) Circuit Headlamp (Lo) Circuit.
Is the headlamp (LO) circuit normal?
YES - Replace IPDM E/R.
NO - Repair or replace the malfunctioning part.
