System Diagram Xenon Type





AUTO LIGHT SYSTEM


System Diagram

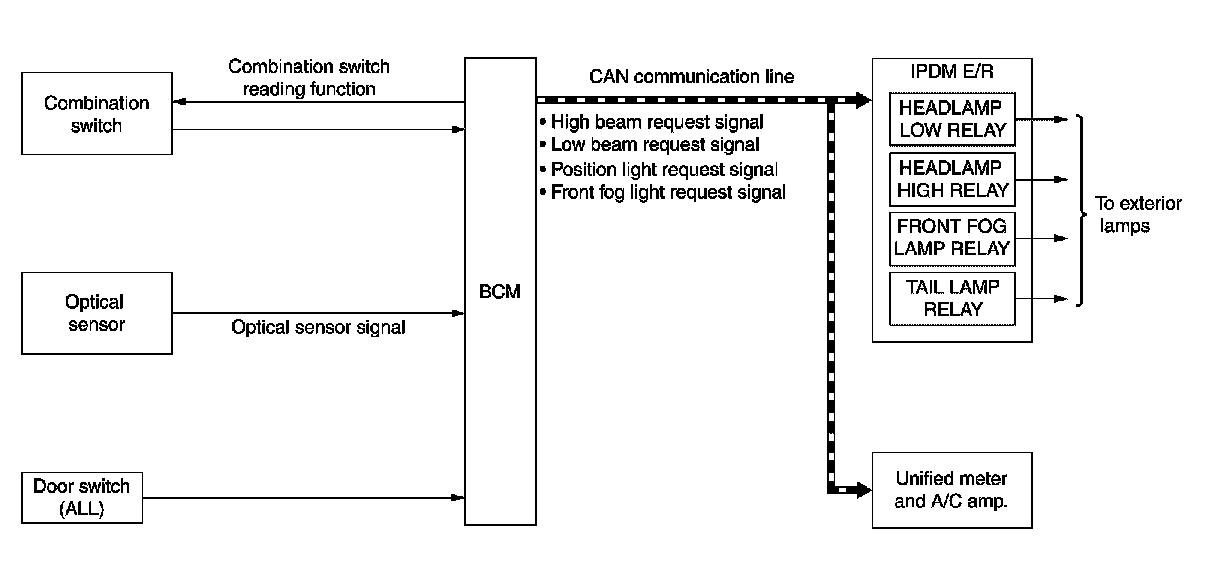

Without daytime running light

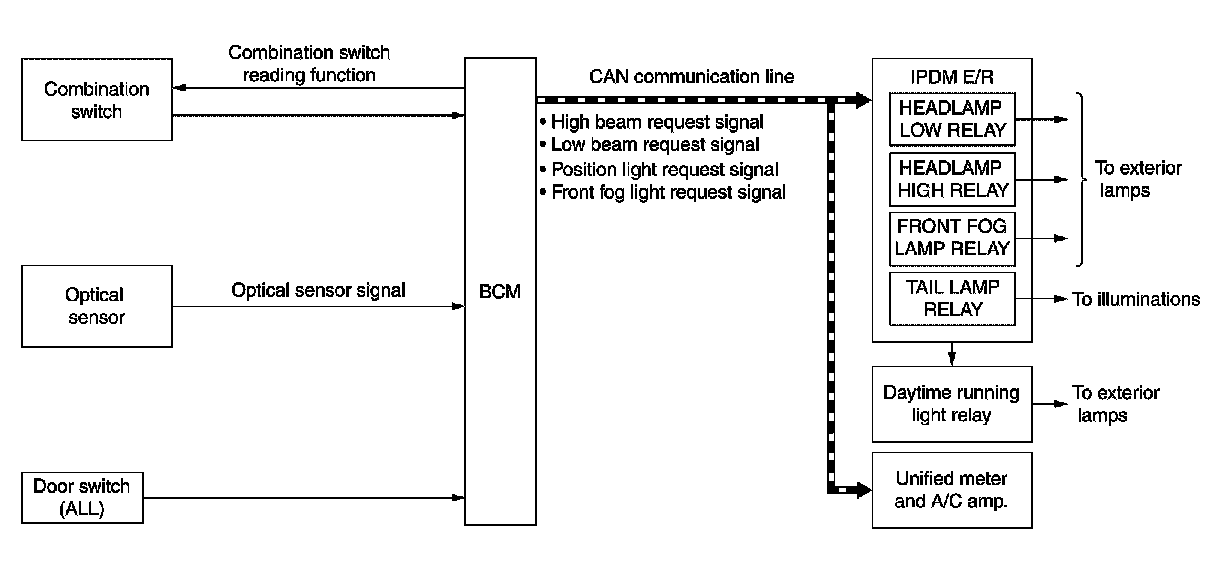

With daytime running light
