Consult-III Function (Meter/M & A)

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)


CONSULT-III Function (METER/M&A)

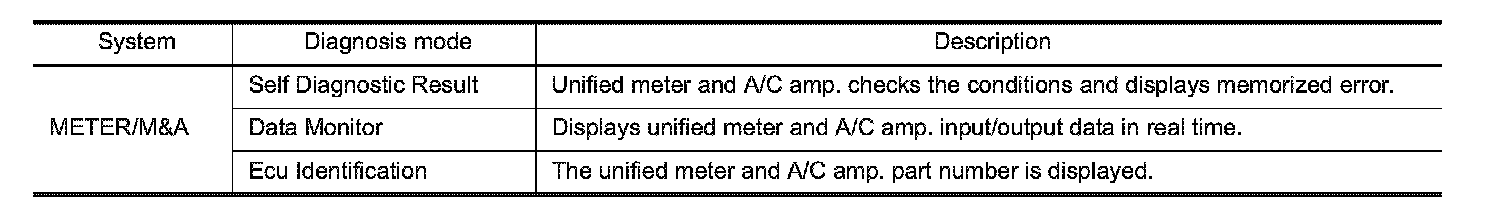

CONSULT-III APPLICATION ITEMS
CONSULT-III can perform the following diagnosis modes with CAN communication with the unified meter and
A/C amp.






SELF DIAG RESULT
Testing and Inspection.

DATA MONITOR

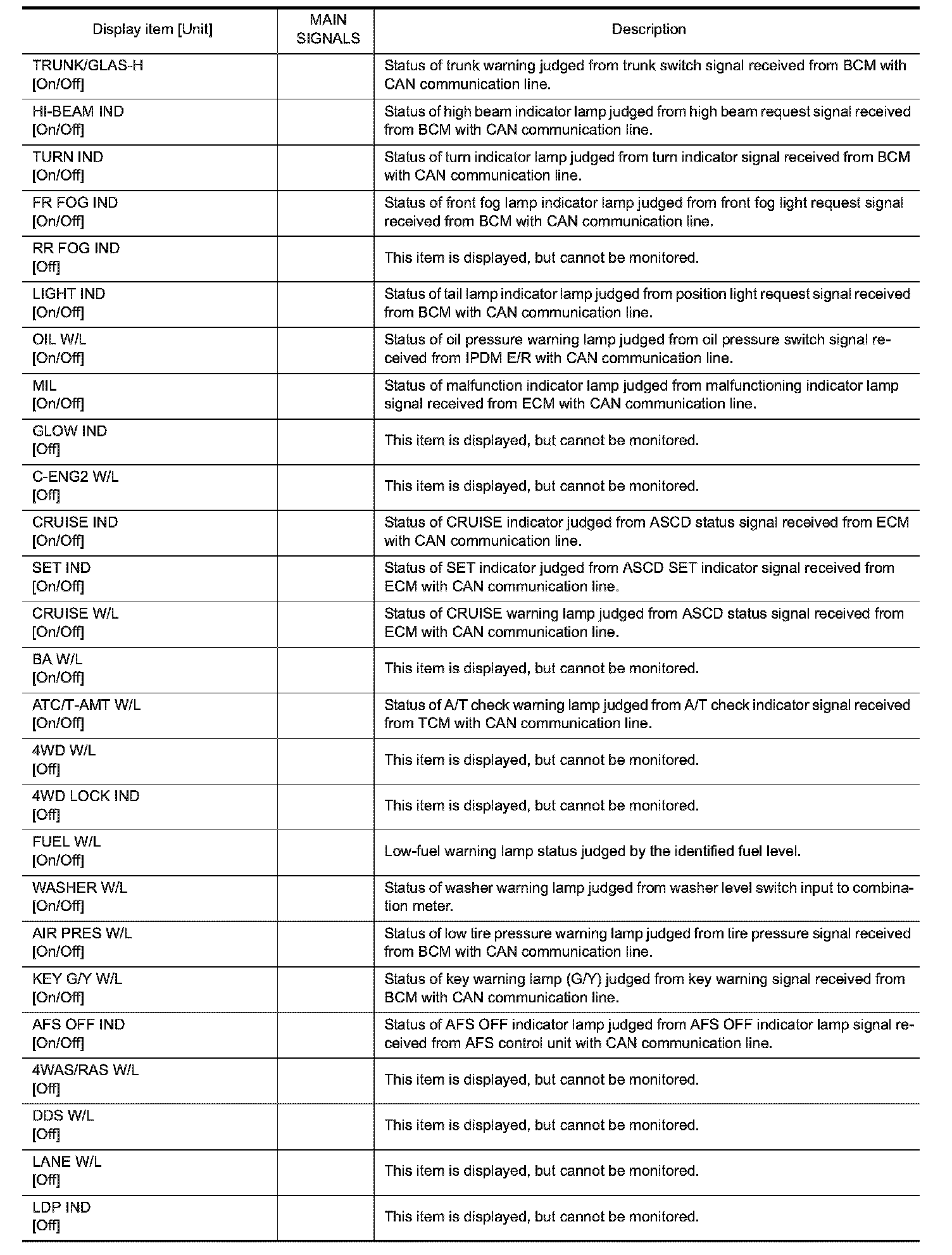

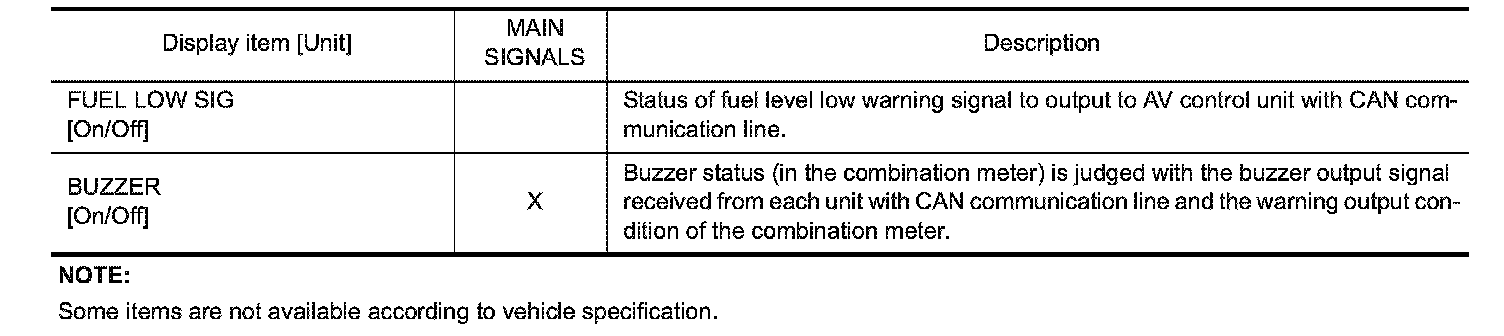

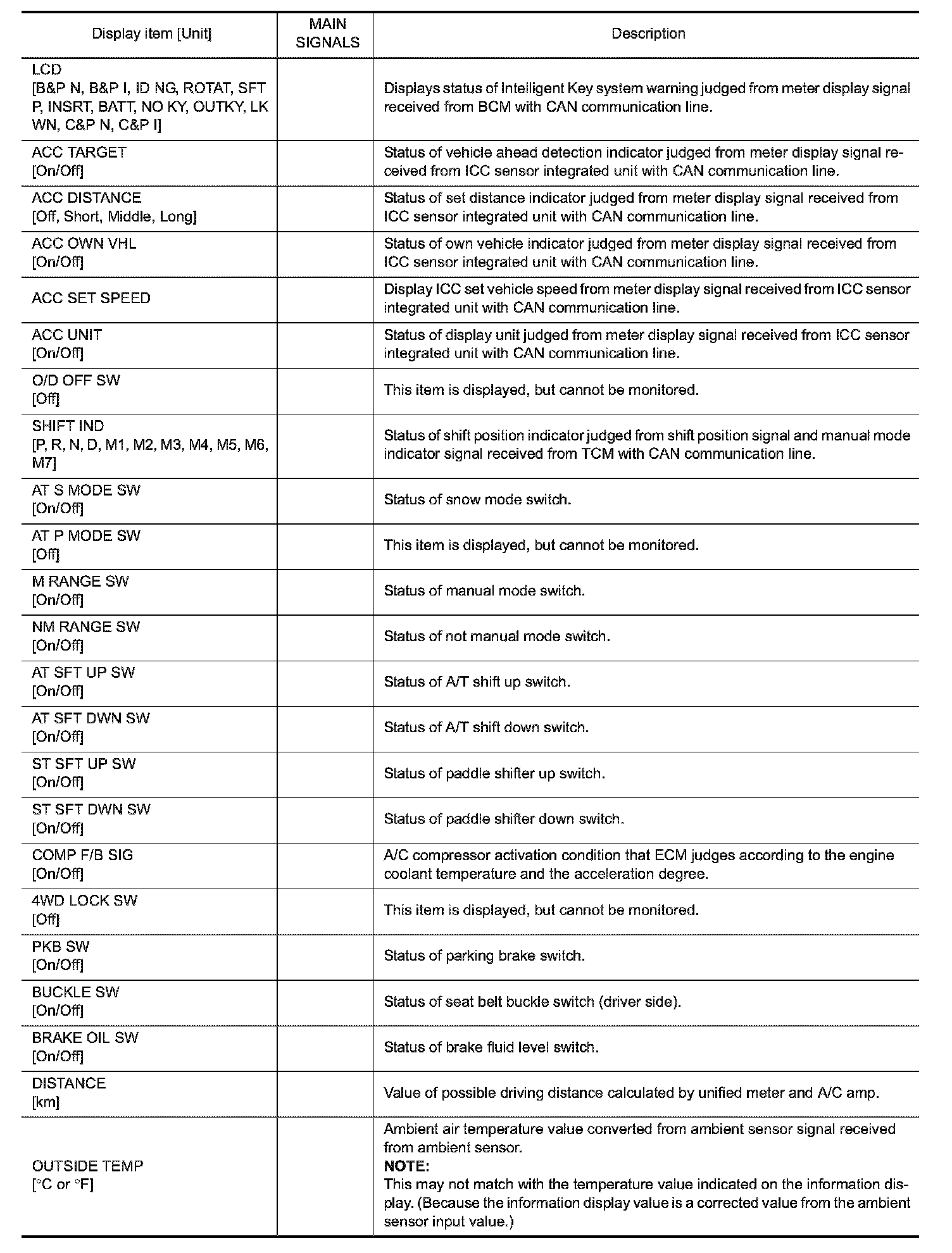

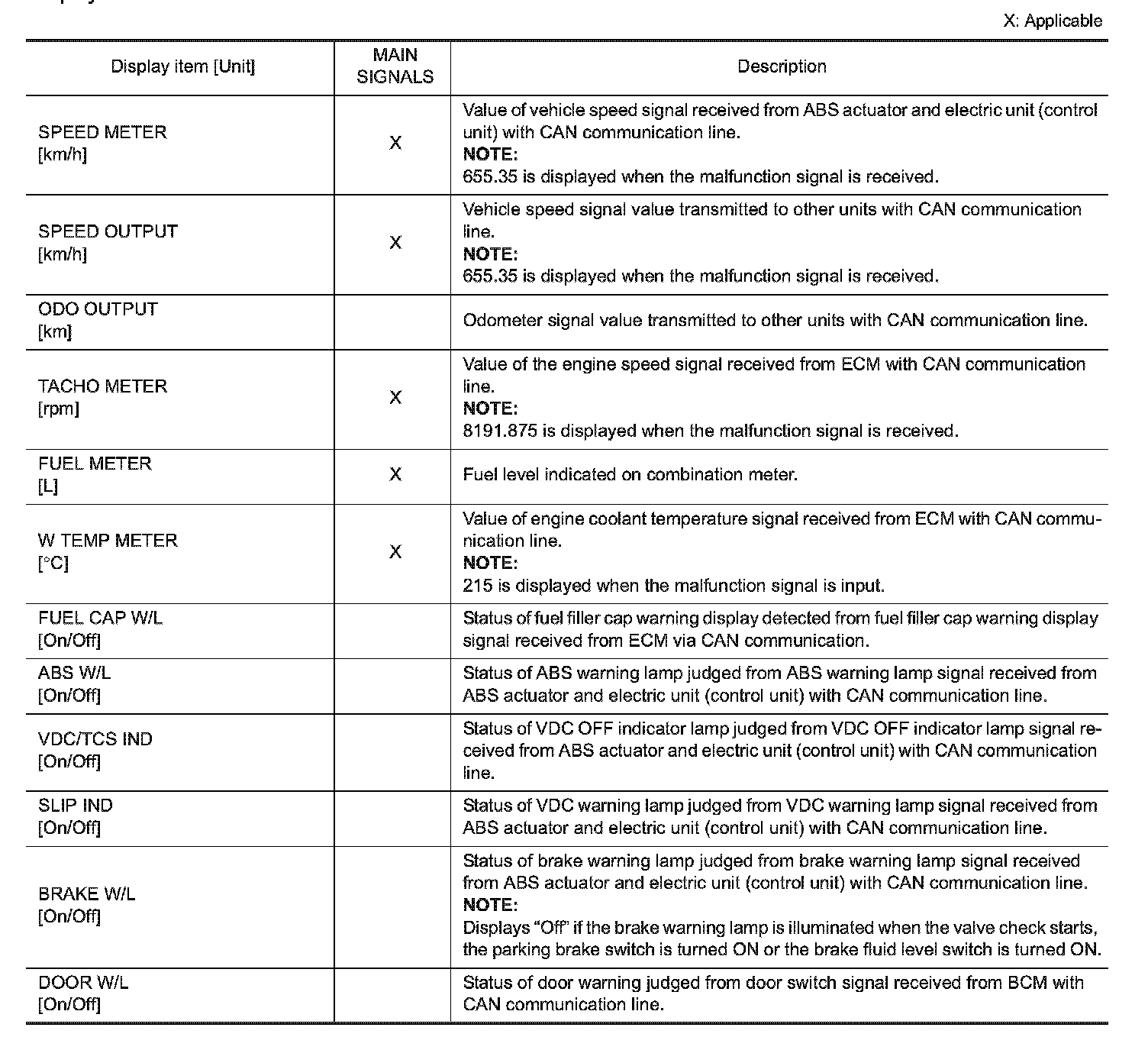

Display Item List
