Unified Meter And A/C Amp





UNIFIED METER AND A/C AMP.


Reference Value

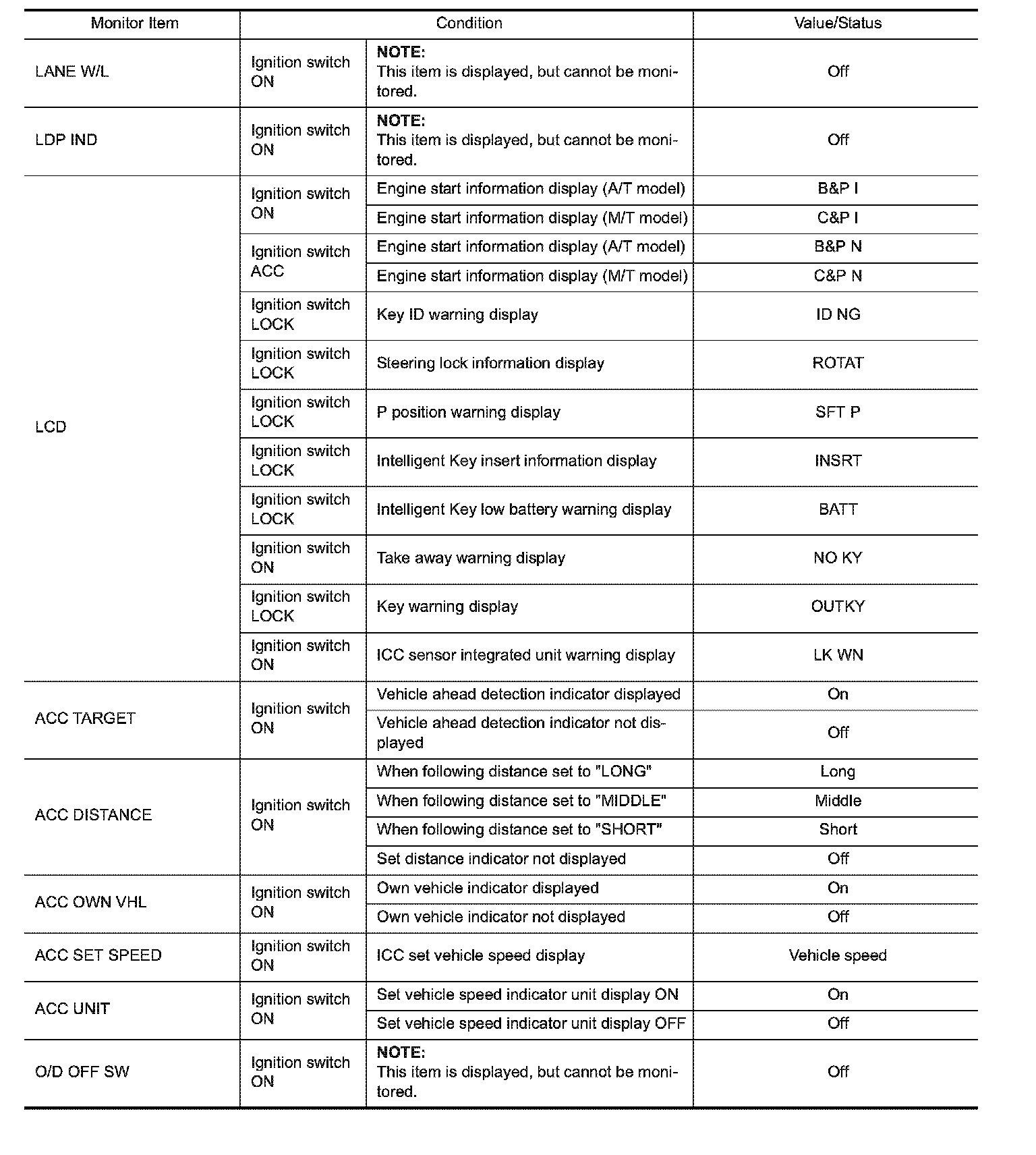

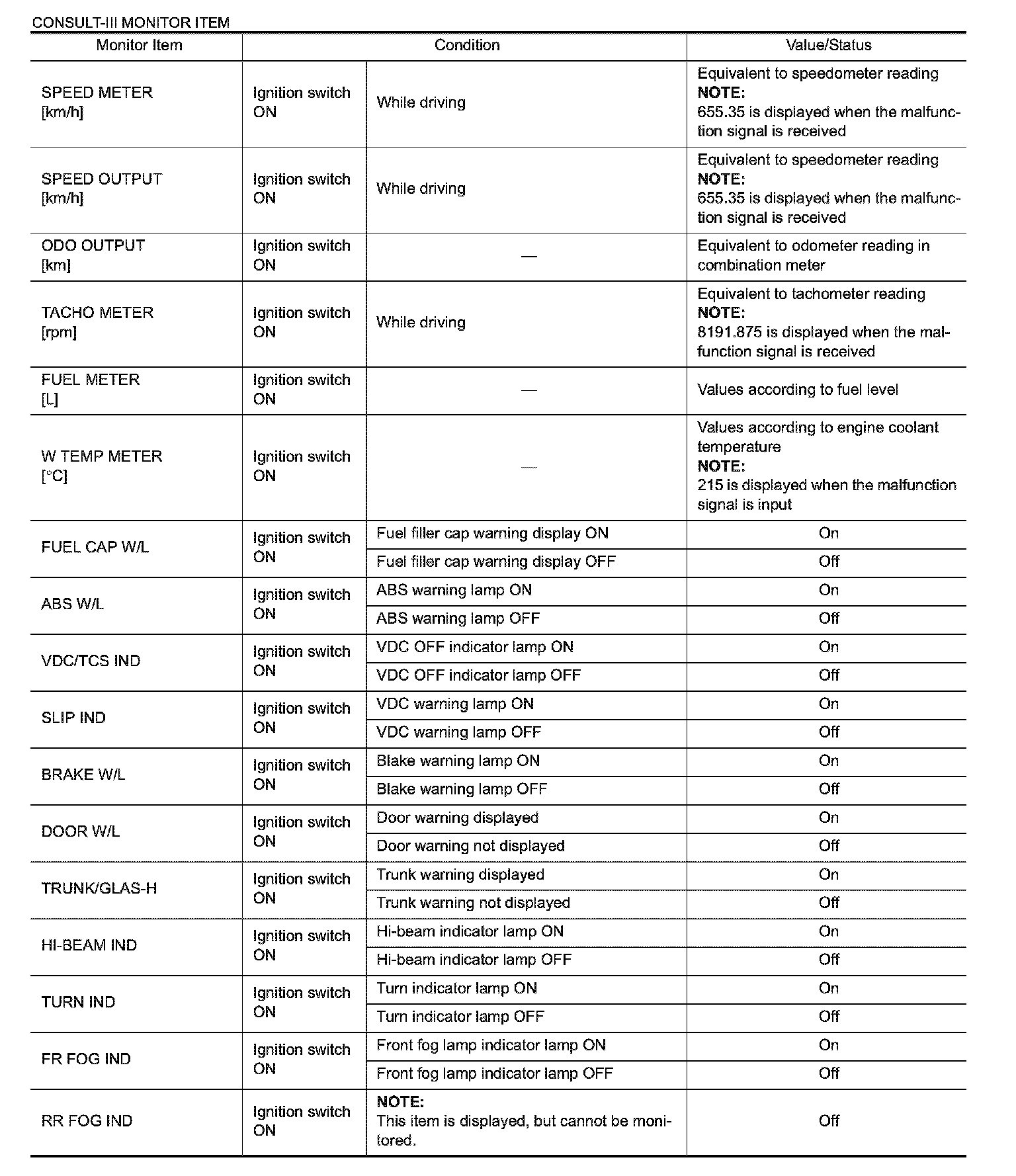

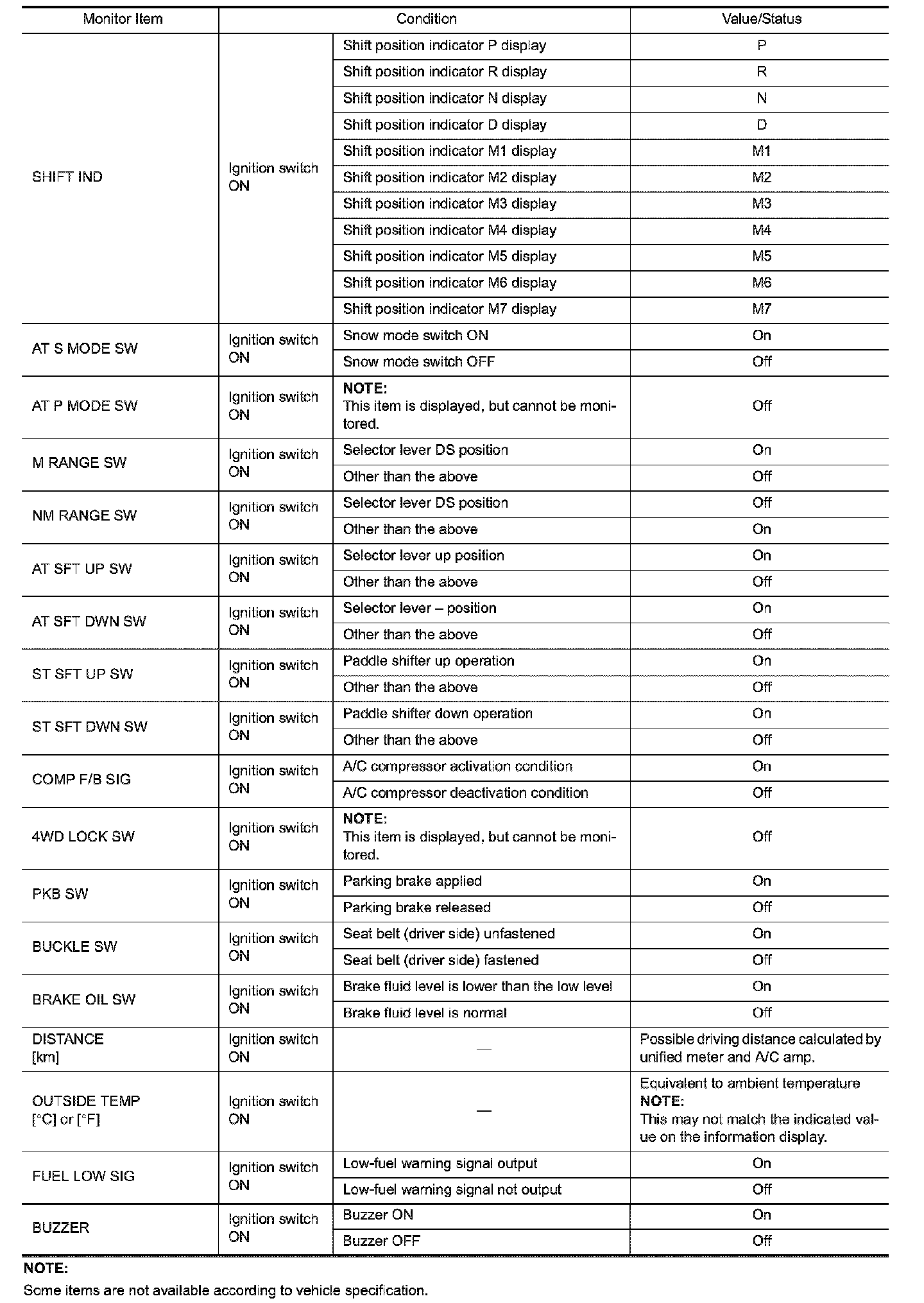

VALUES ON THE DIAGNOSIS TOOL

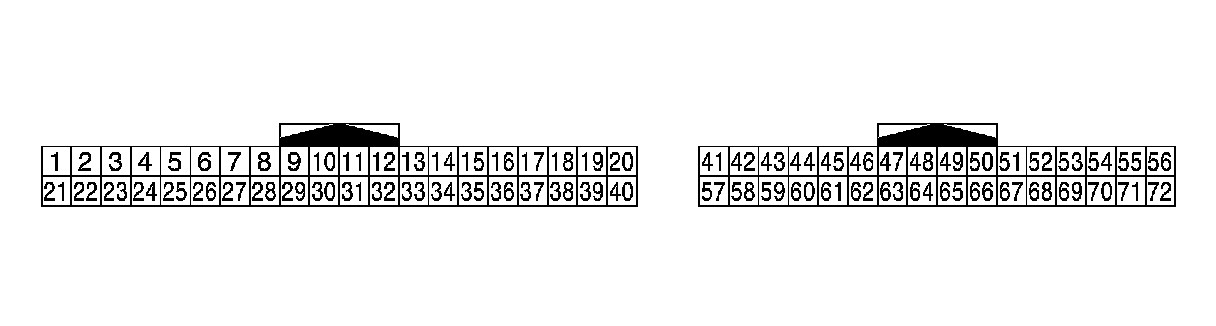

TERMINAL LAYOUT

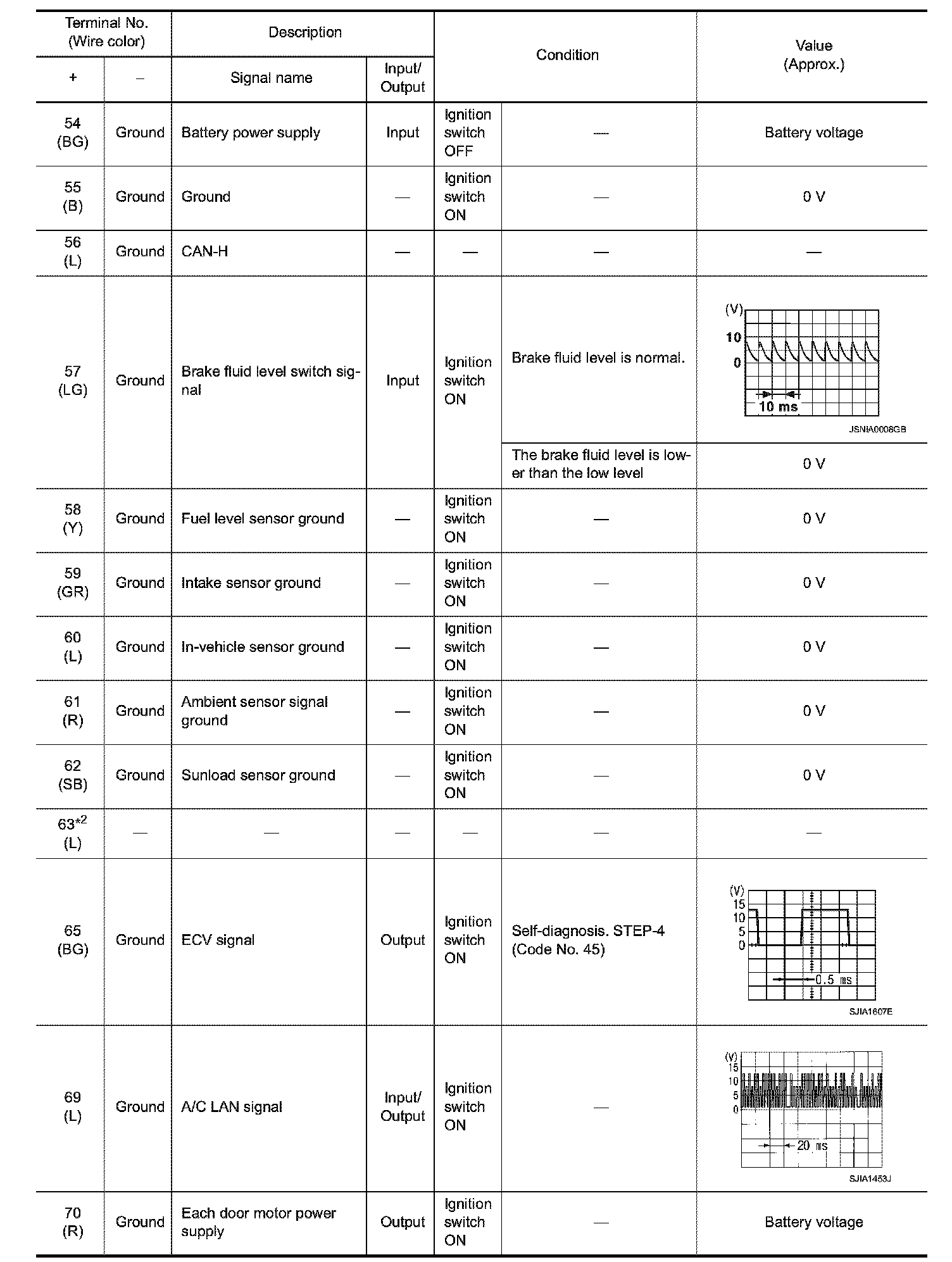

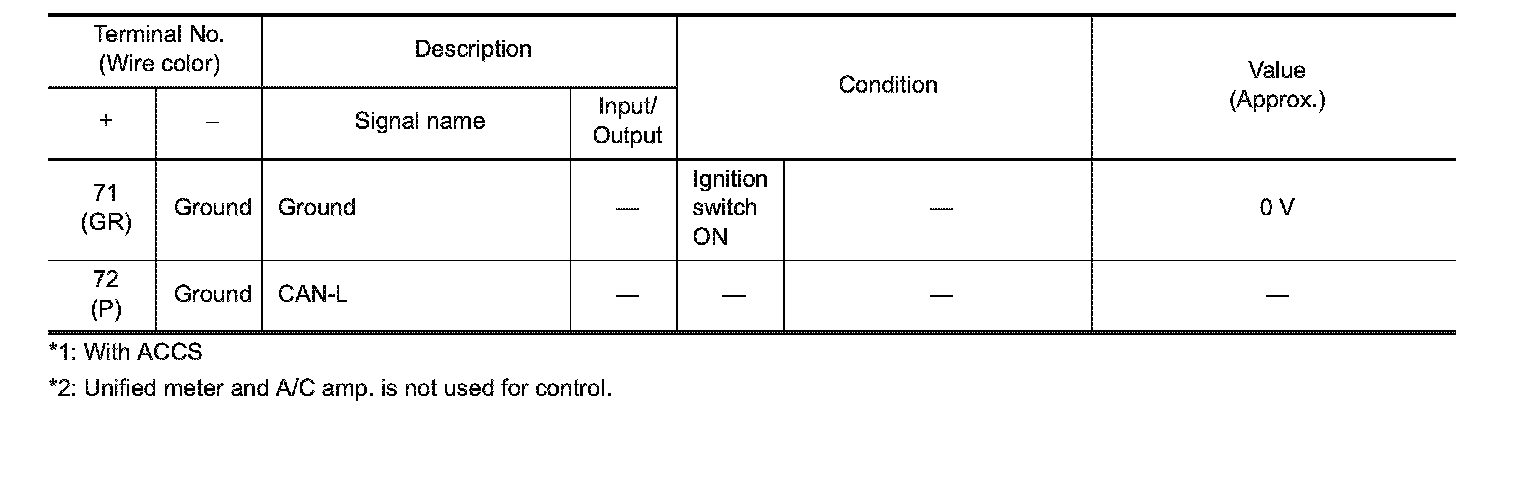

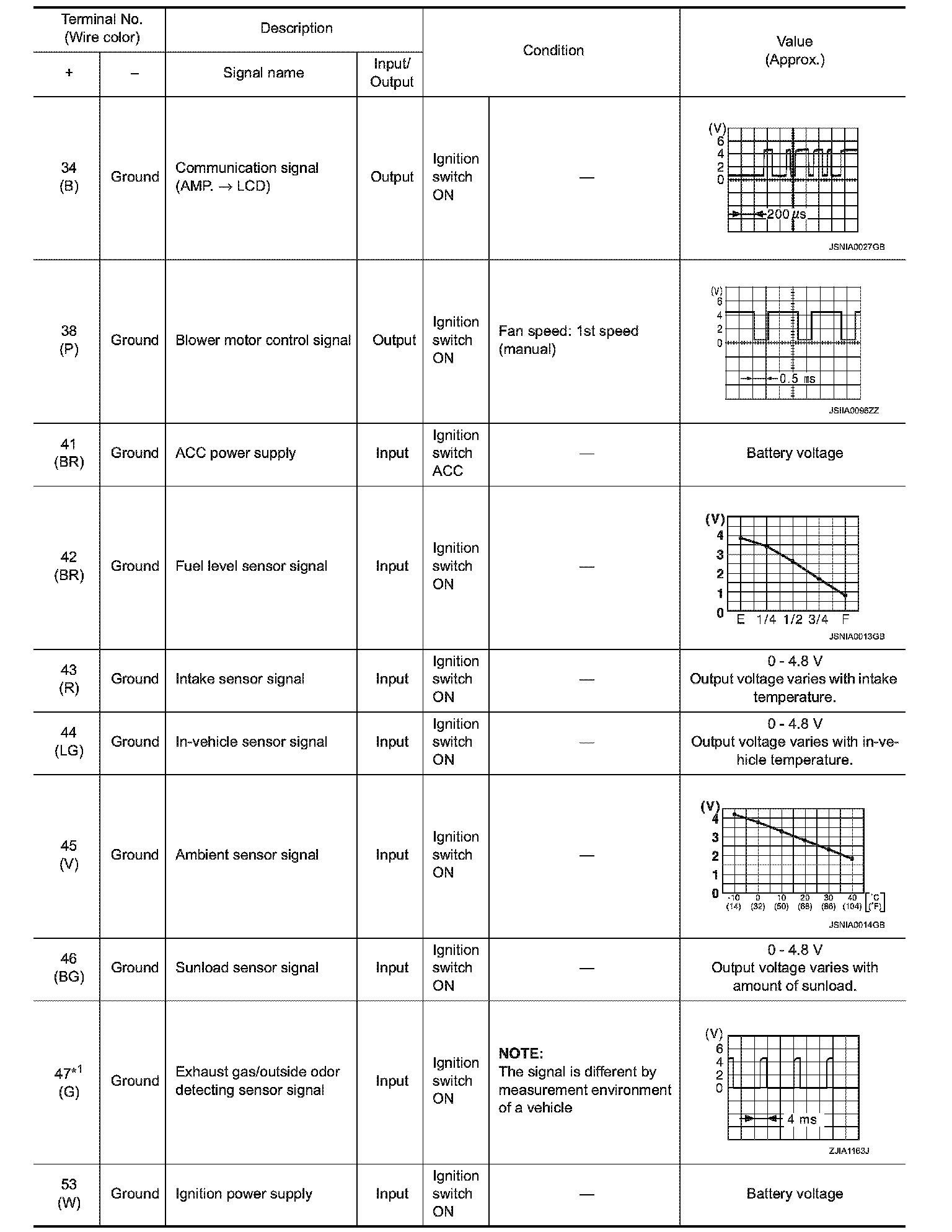

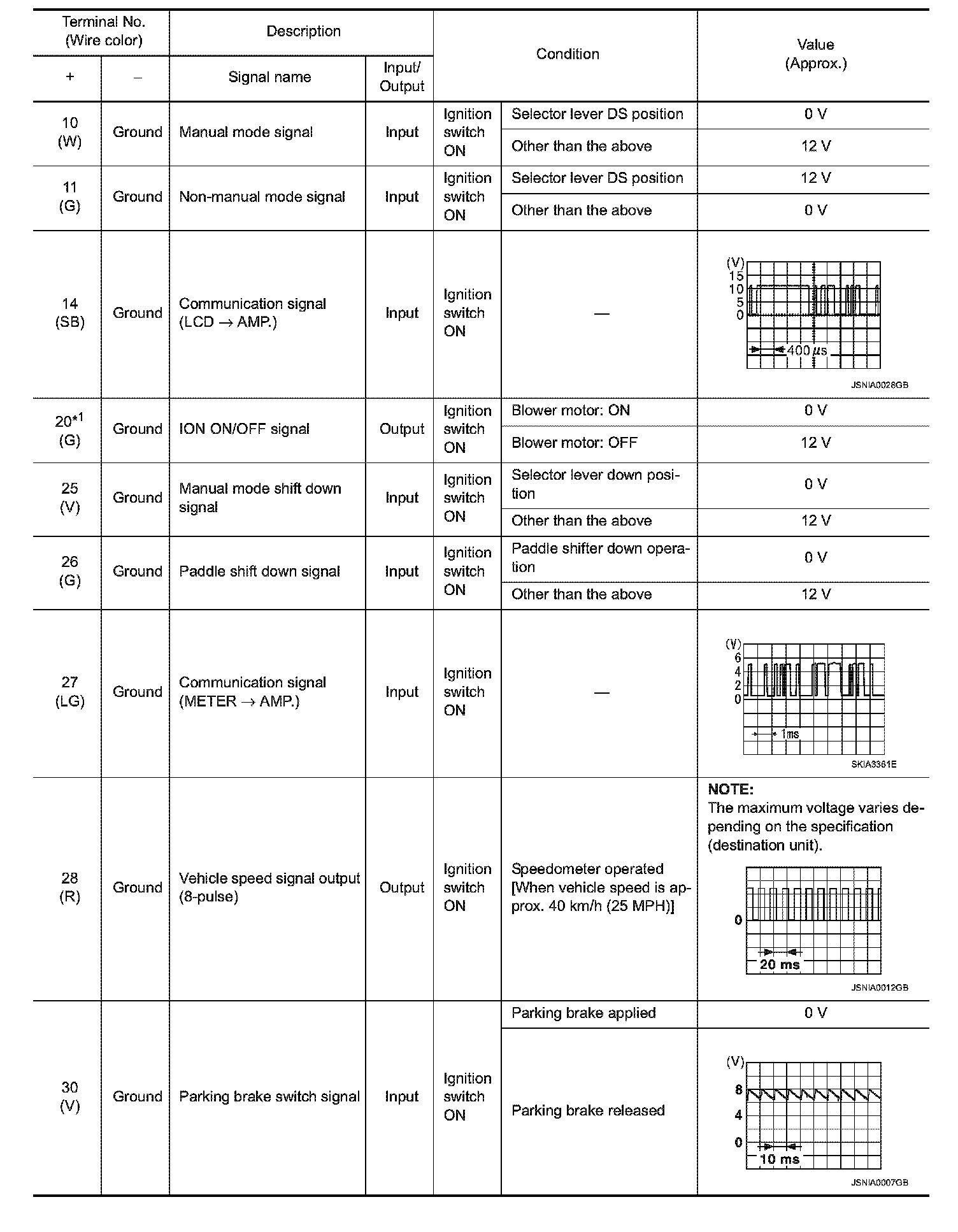

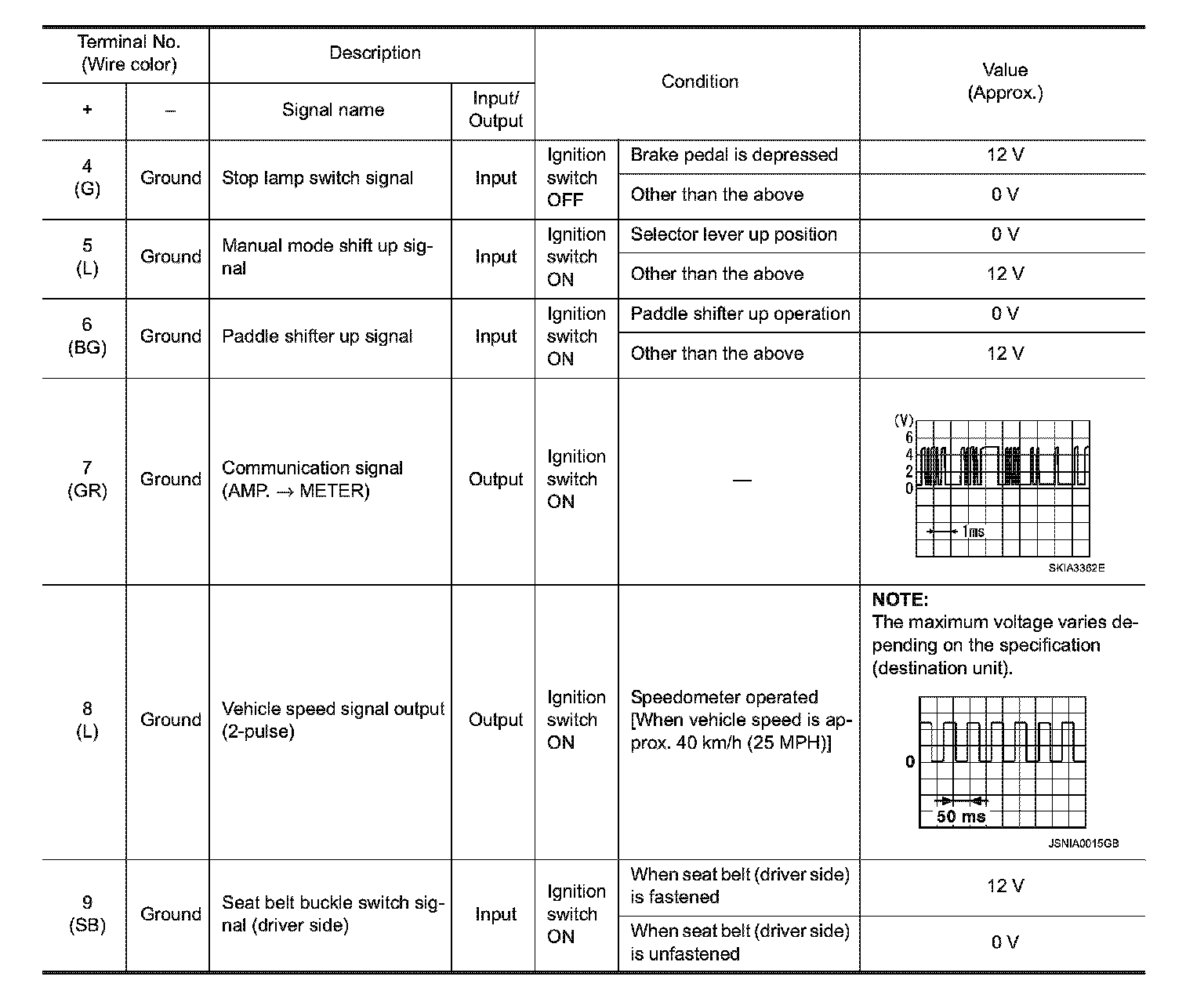

PHYSICAL VALUES
