Combination Meter

COMBINATION METER

Reference Value

VALUES ON THE DIAGNOSIS TOOL
Unified Meter And A/C Amp.

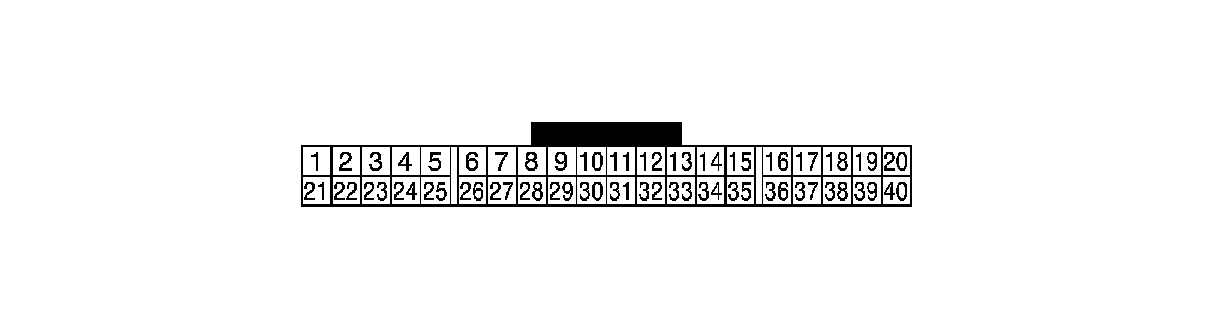

TERMINAL LAYOUT

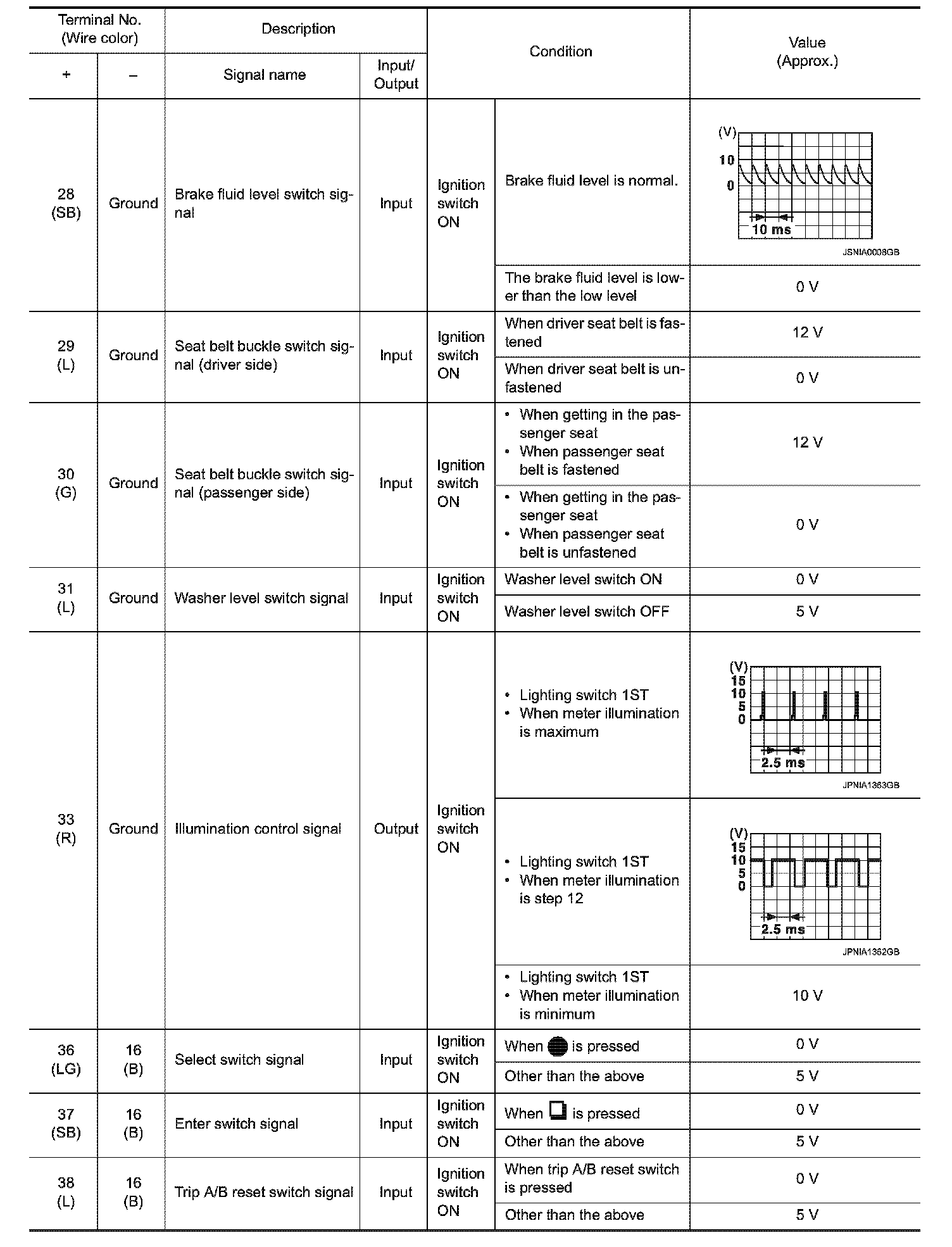

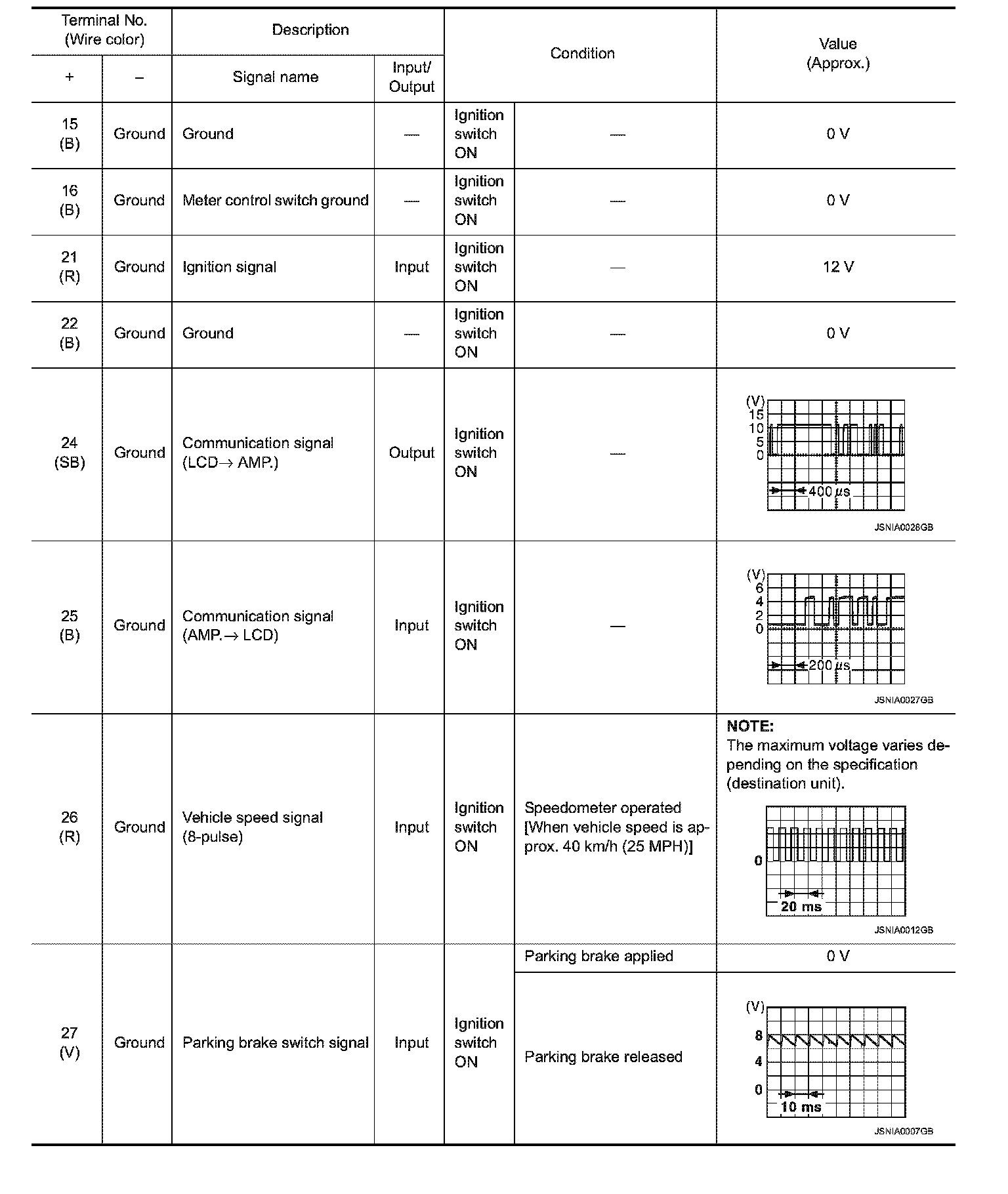

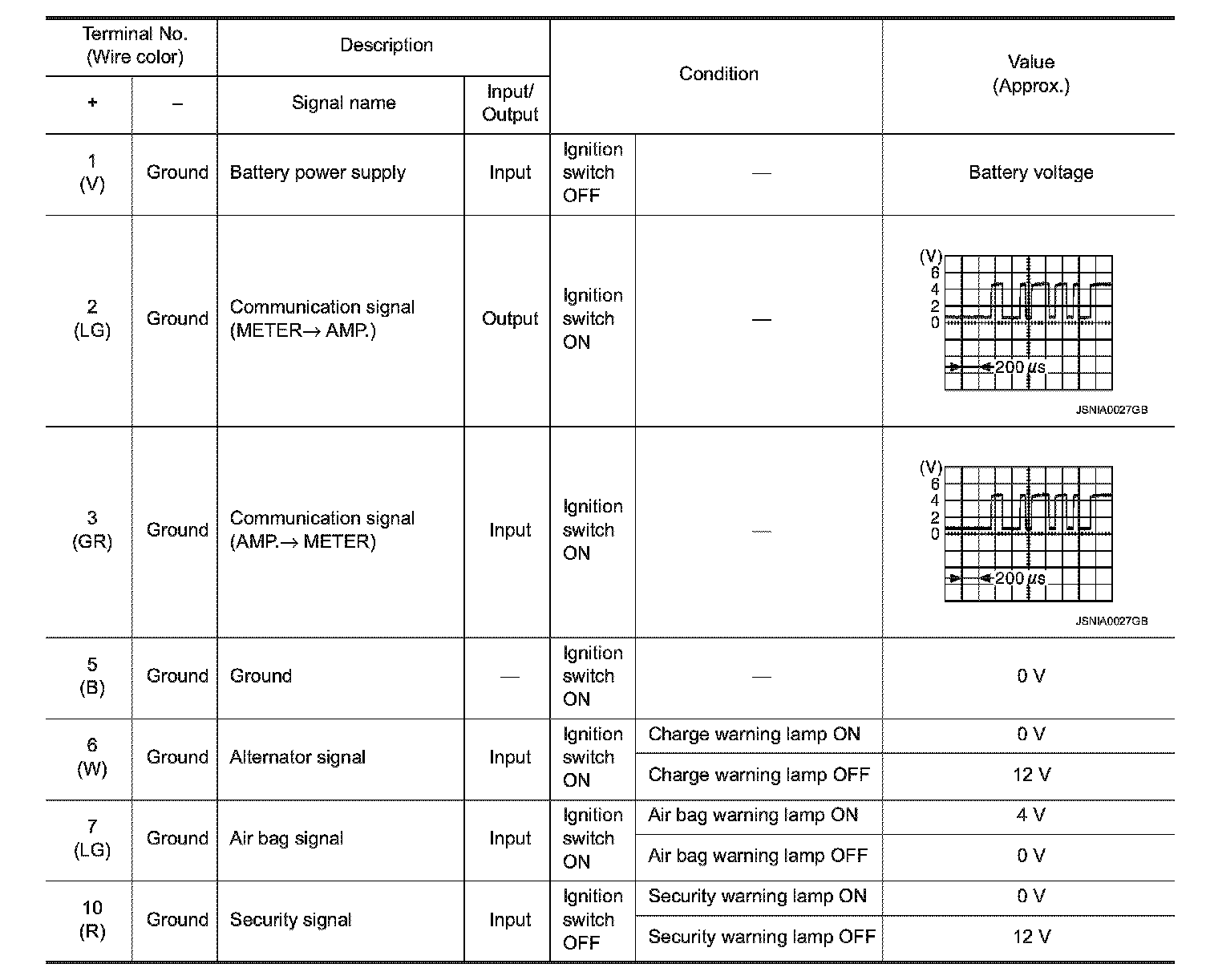

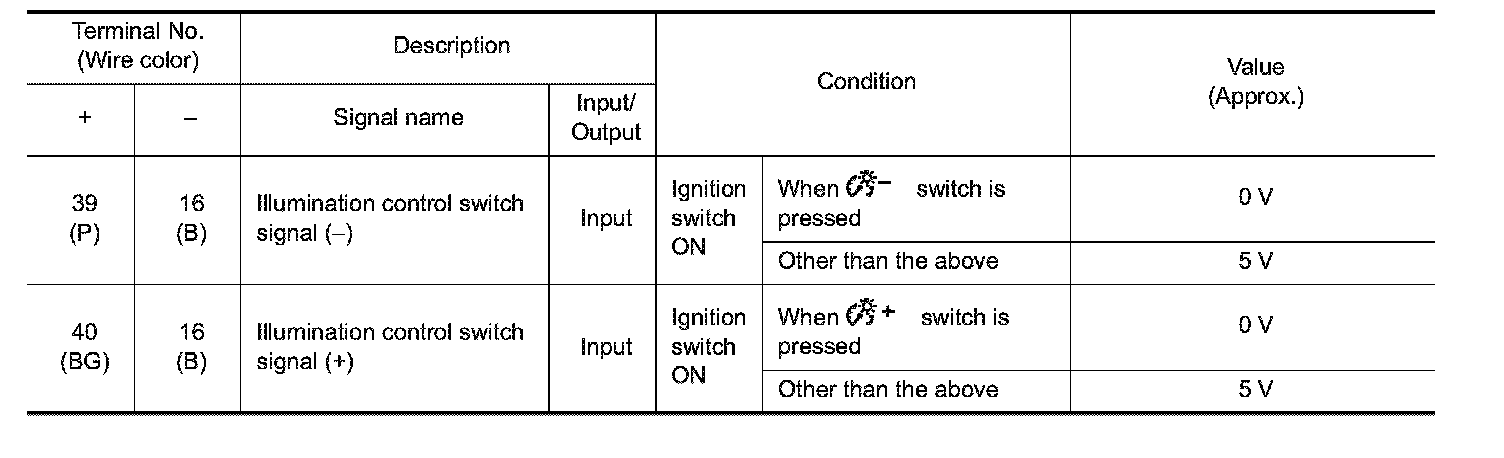

PHYSICAL VALUES
