Removal And Installation

COMBINATION METER


Removal and Installation


REMOVAL
1. Remove cluster lid A assembly. Removal And Installation A/T Models (A/T models) or Removal And Installation M/T Models (M/T models).

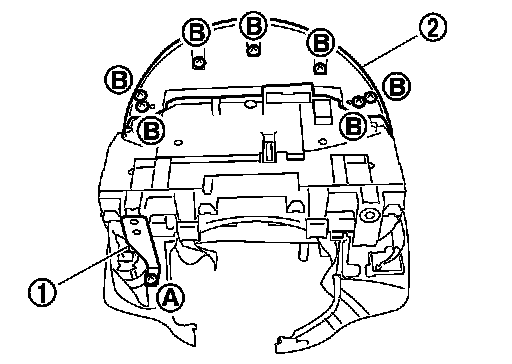

2. Remove screw (A) and remove combination meter stay (1).
3. Remove screws (B) and remove cluster lid A cover (2).

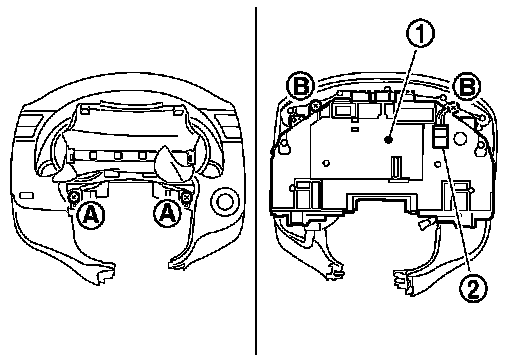

4. Remove screws (A), (B) and remove combination meter (1).
5. Remove meter control switch connector (2) from combination meter.

INSTALLATION
Install in the reverse order of removal.
