Work Flow

DIAGNOSIS AND REPAIR WORK FLOW


Work Flow

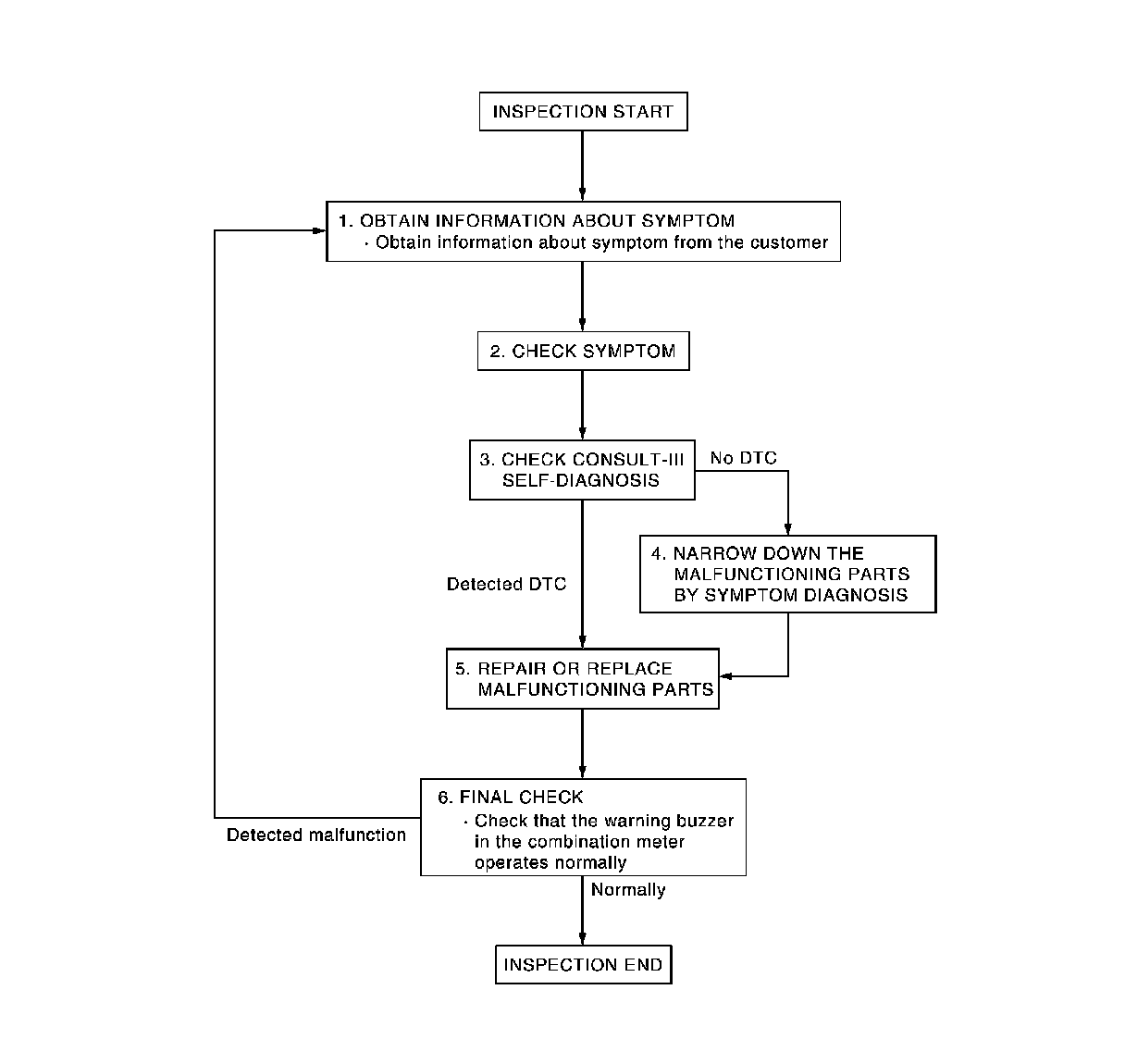

OVERALL SEQUENCE






DETAILED FLOW
1.OBTAIN INFORMATION ABOUT SYMPTOM
Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.
- GO TO 2.
2.CHECK SYMPTOM
- Check the symptom based on the information obtained from the customer.
- Check that any other malfunctions are present.
- GO TO 3.
3.CHECK CONSULT-III SELF-DIAGNOSIS RESULTS
Connect CONSULT-III and perform "Self Diagnostic Result" of "METER/M&A". .
Are self-diagnosis results normal?
YES - GO TO 4.
NO - GO TO 5.
4.NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS
Perform symptom diagnosis and narrow down the malfunctioning parts.
- GO TO 5.
5.REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace malfunctioning parts.

NOTE:
If DTC is displayed, erase DTC after repair or replace malfunctioning parts.
- GO TO 6.
6.FINAL CHECK
Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?
YES - INSPECTION END
NO - GO TO 1.
