Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Air Conditioner >> Diagnosis Chart By Symptom

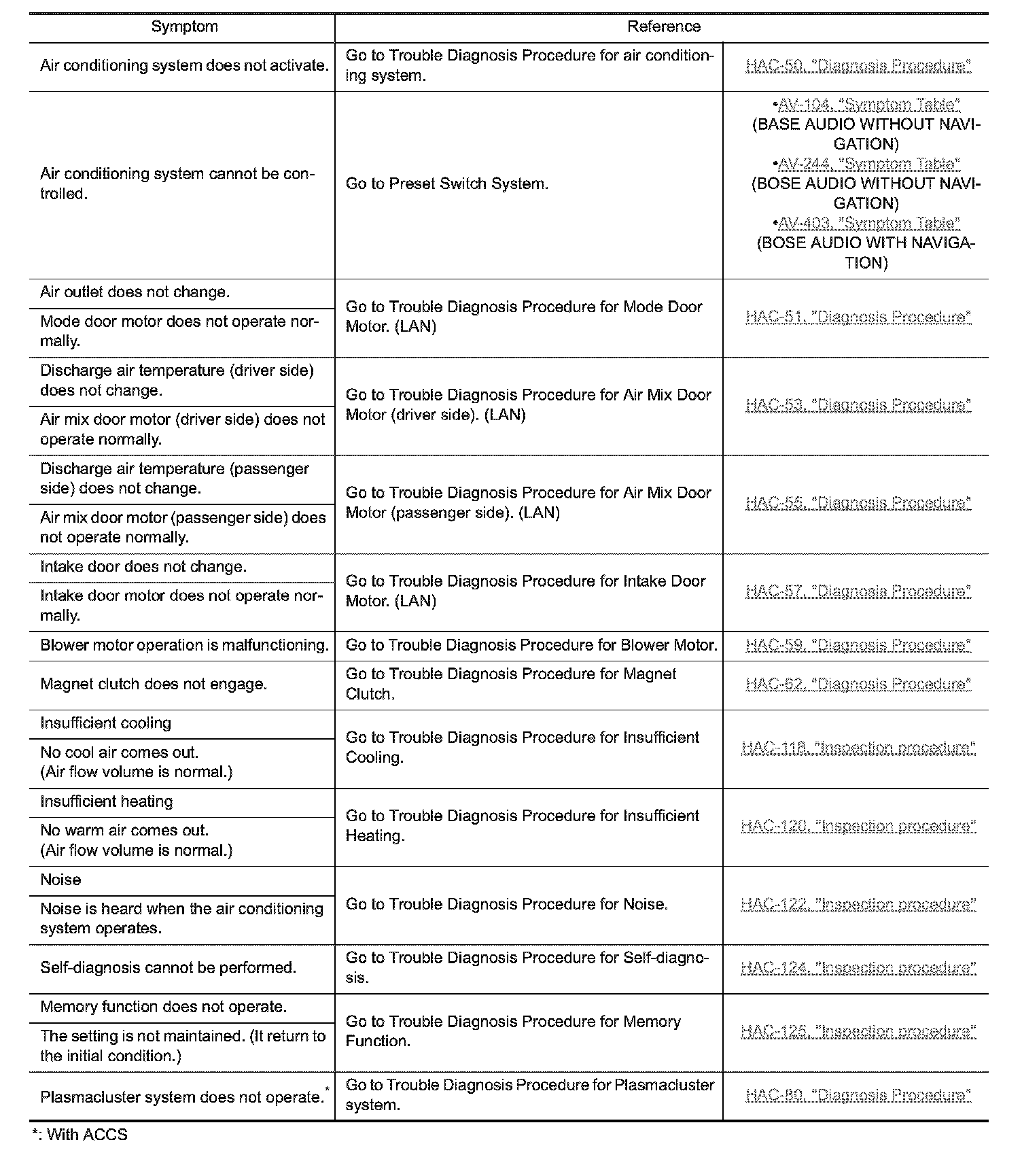

Diagnosis Chart By Symptom





AUTOMATIC AIR CONDITIONING SYSTEM


Diagnosis Chart By Symptom
