Auto Intake Interlocking Movement Change Function With ACCS

INSPECTION AND ADJUSTMENT


WITH ACCS : Auto Intake Interlocking Movement Change Function


DESCRIPTION
Conditions for interlocking movement of intake switch (auto intake mode) and A/C switch can be changed. In addition, operation of the intake switch, which activates the auto intake control system, can be set to become available when the A/C switch is ON.

Operating procedures for this trimmer are as follows:
1. Begin self-diagnosis STEP-5 mode. Scan Tool Testing and Procedures.
2. Press fan (UP:+) switch three times to set system in auxiliary mode.

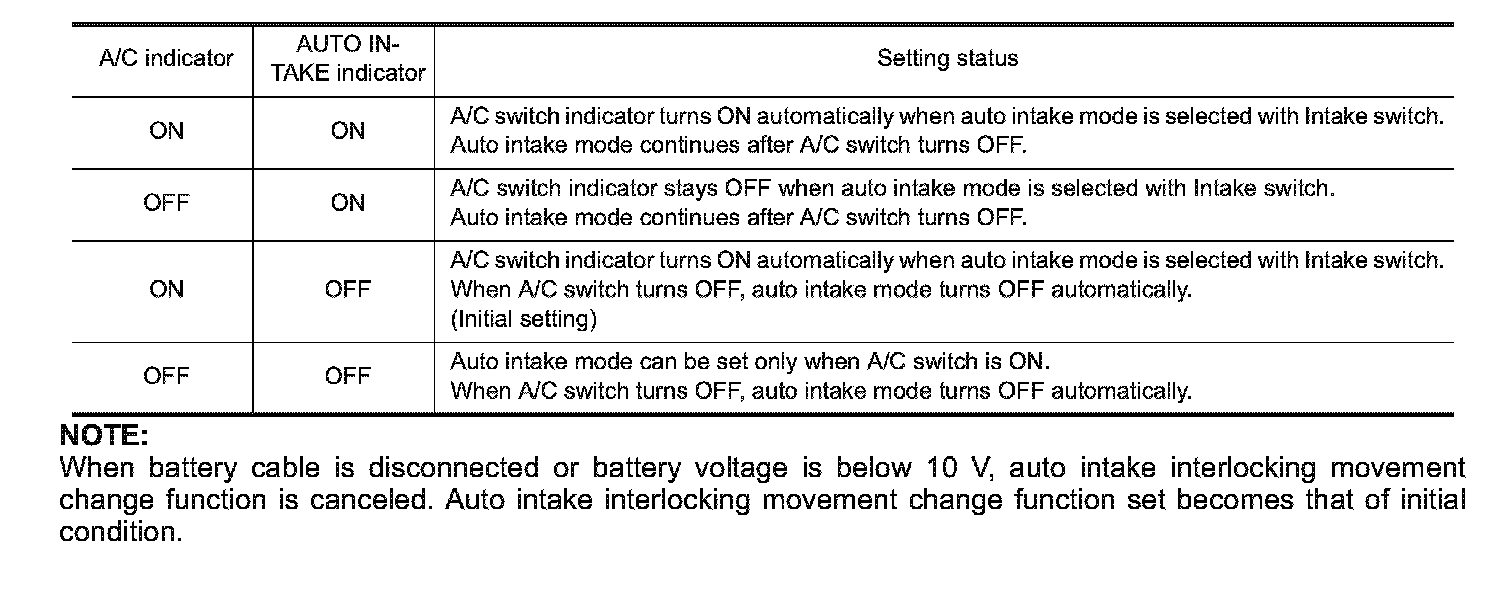

3. Press A/C switch and intake switch as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, auto intake interlocking movement change function is canceled. Auto intake interlocking movement change function set becomes that of initial condition.
