Electrical Diagrams





UNIFIED METER AND A/C AMP.

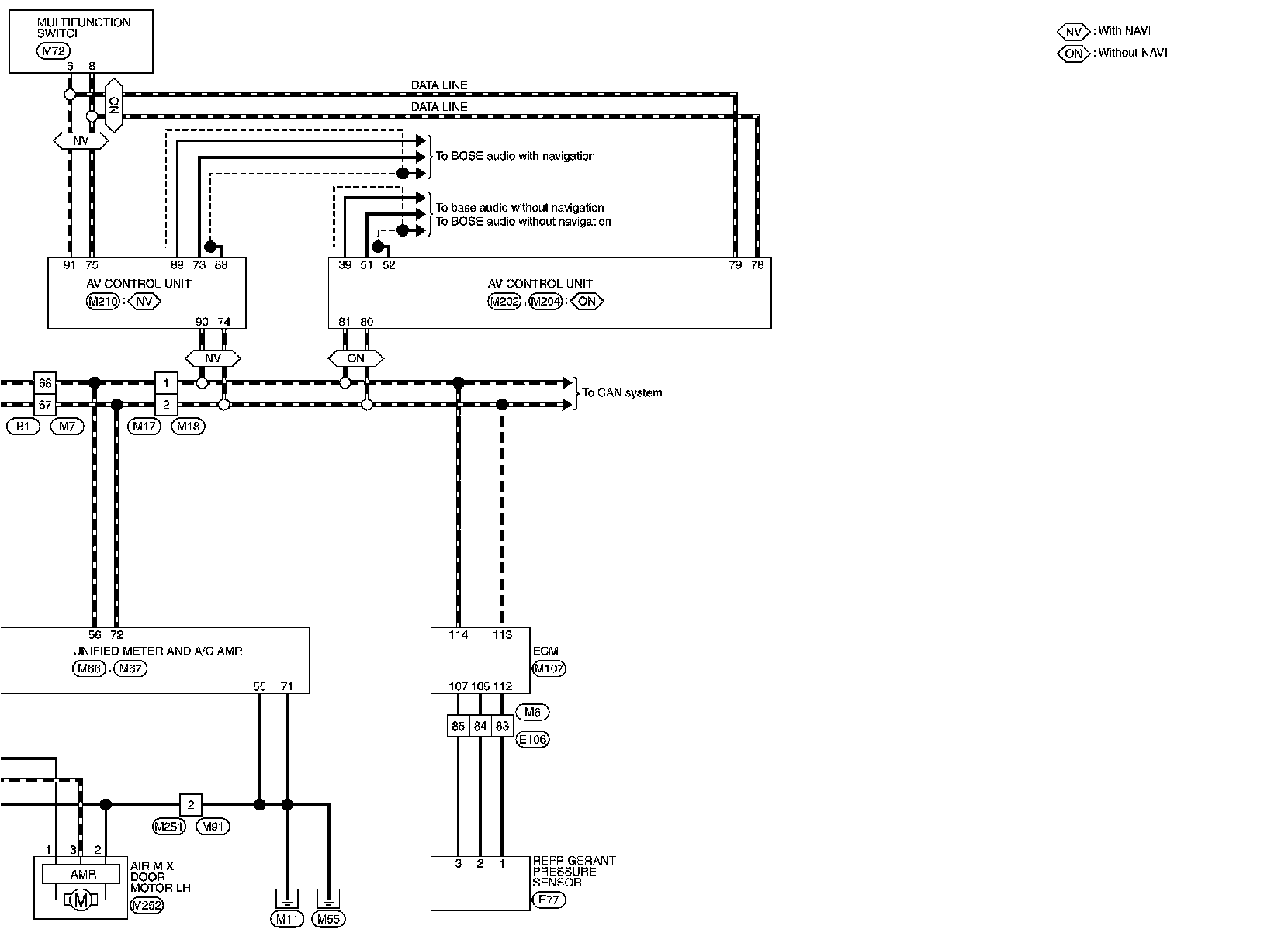

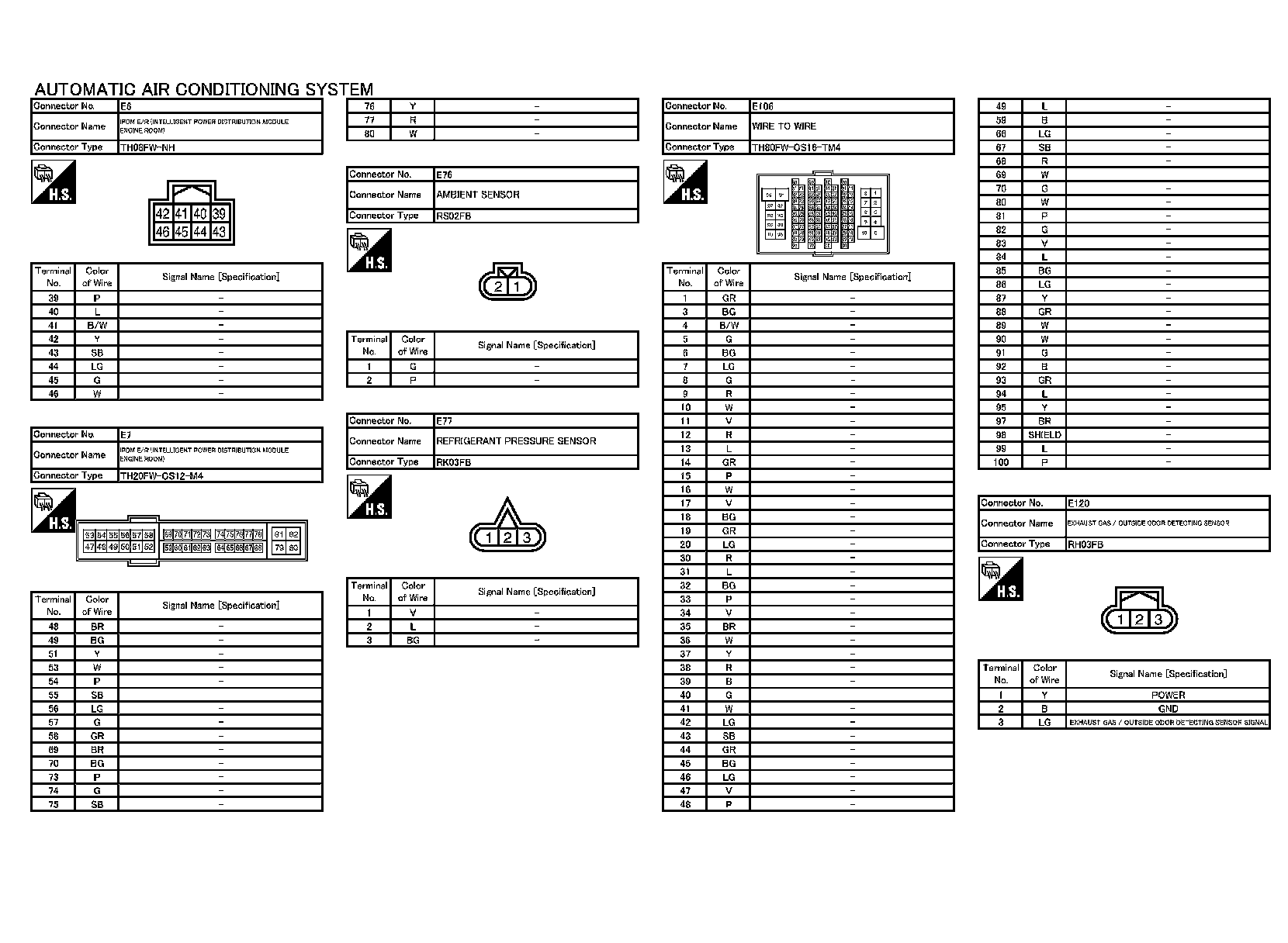

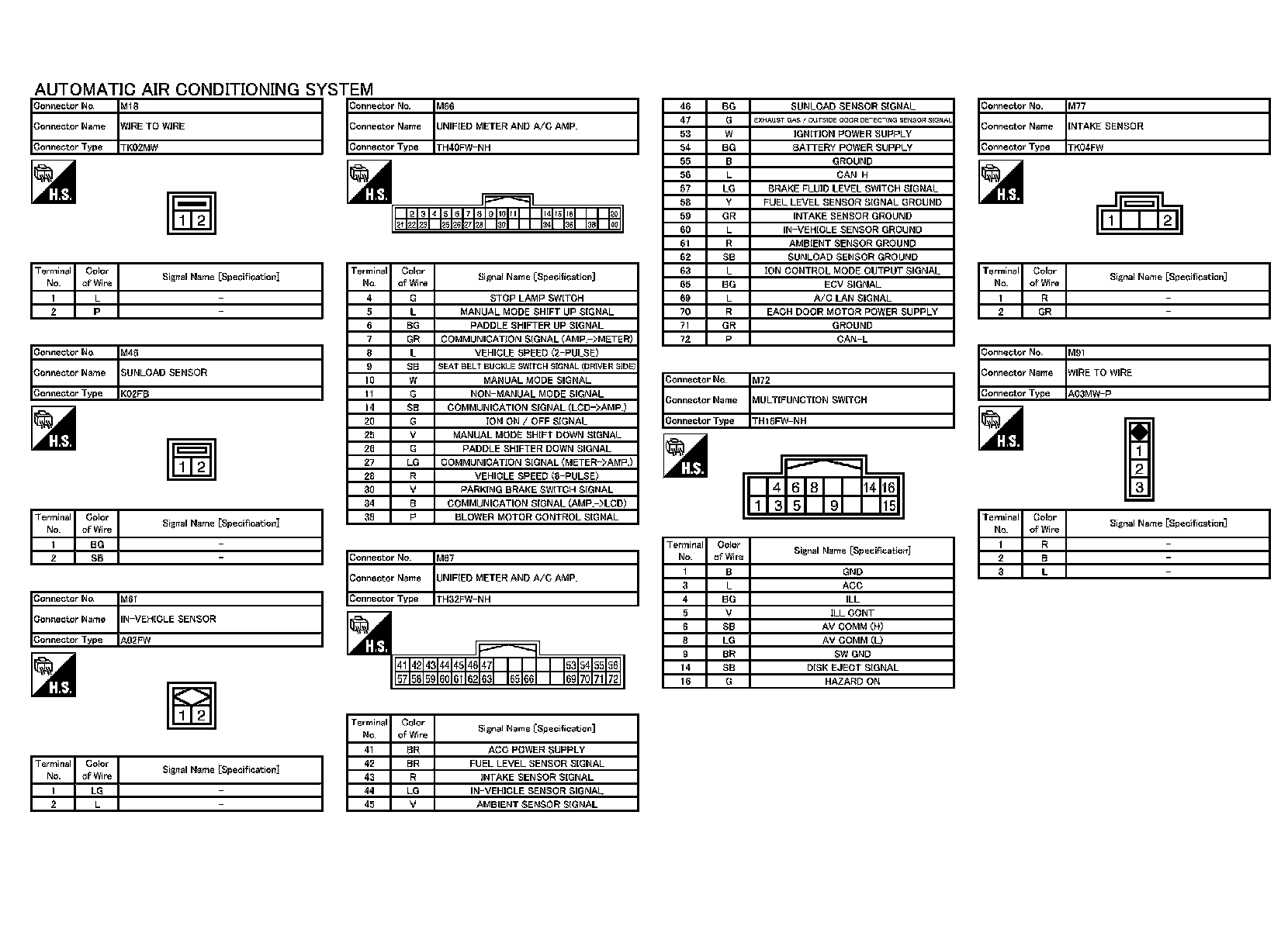

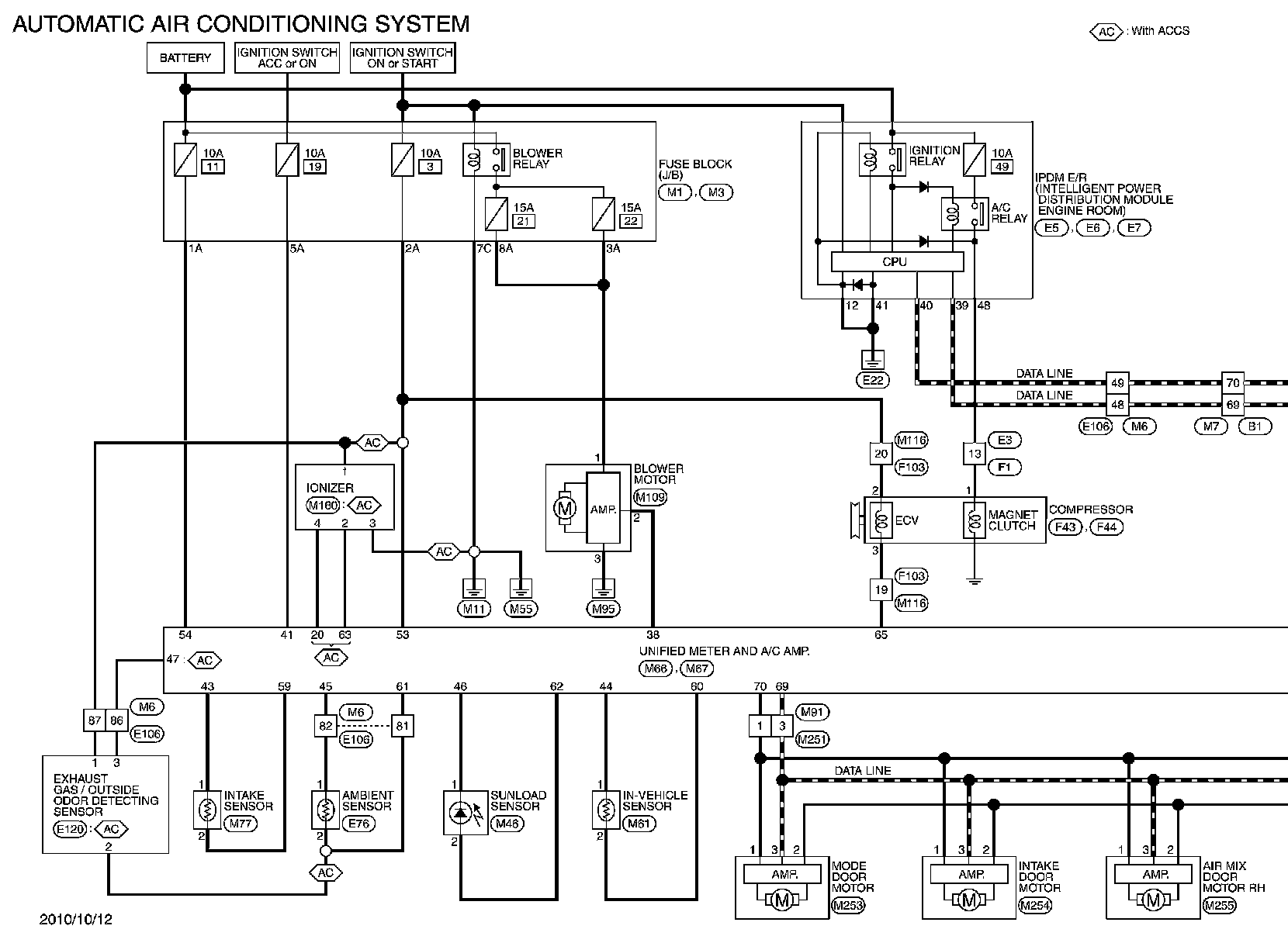

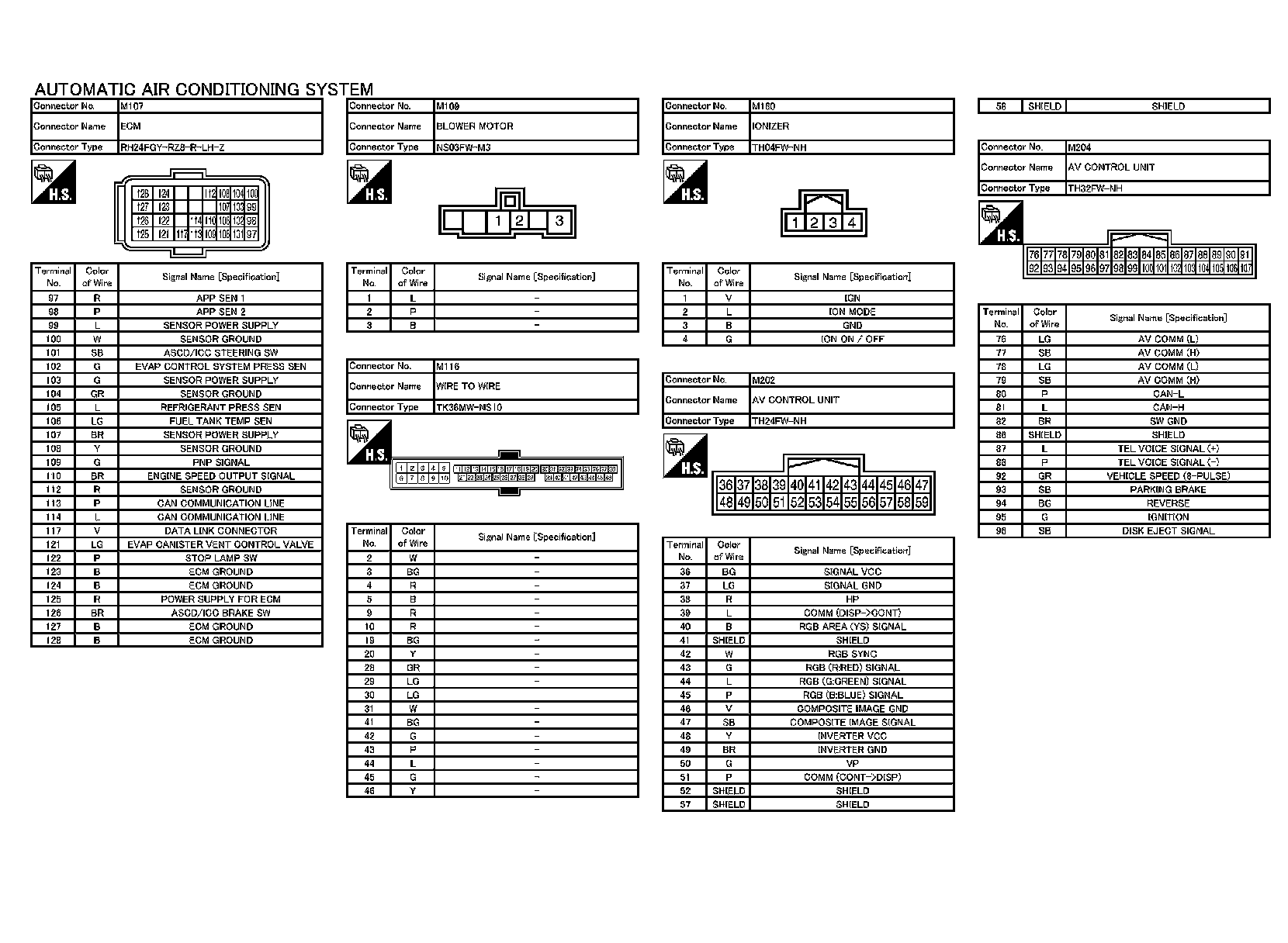

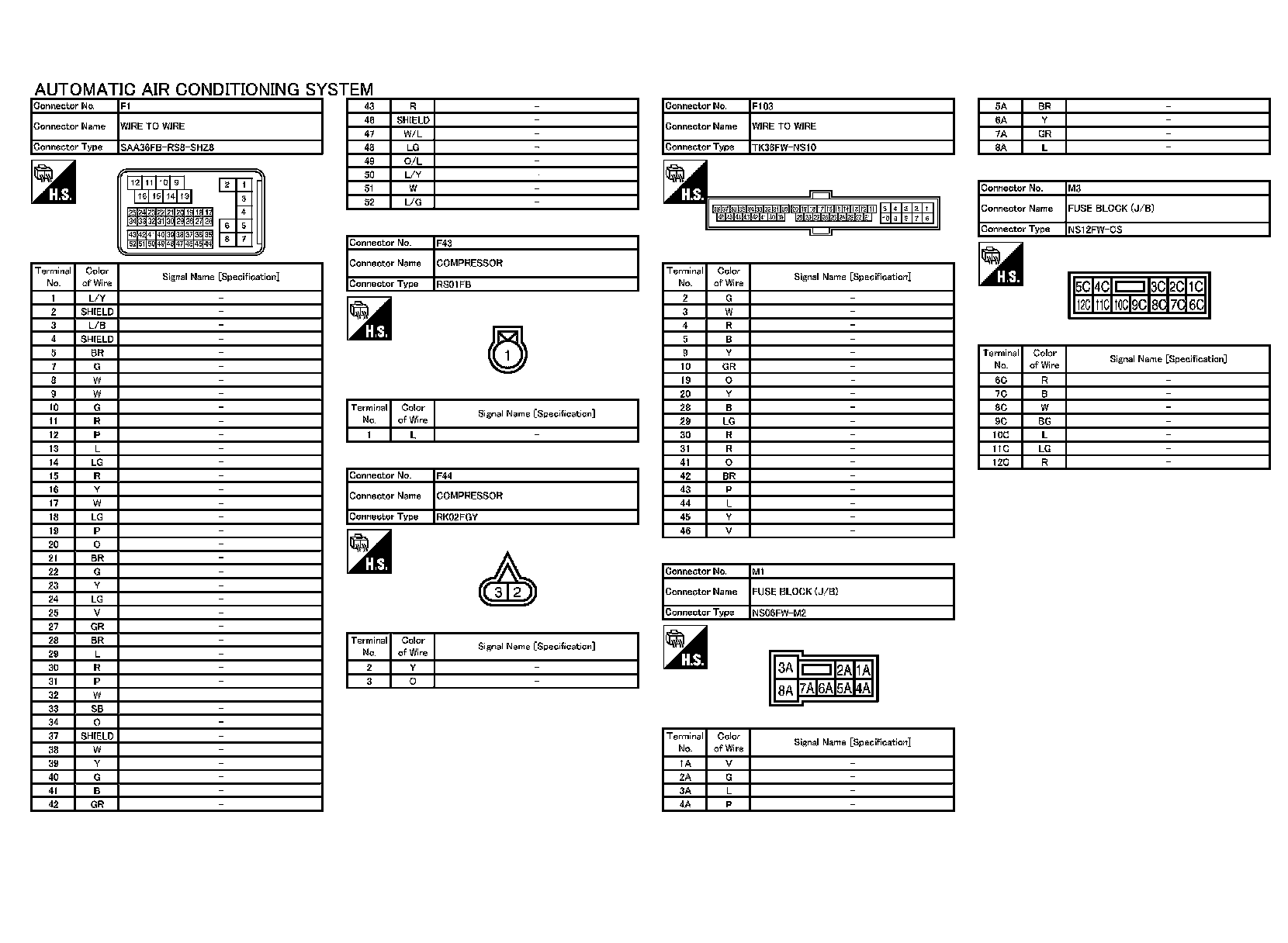

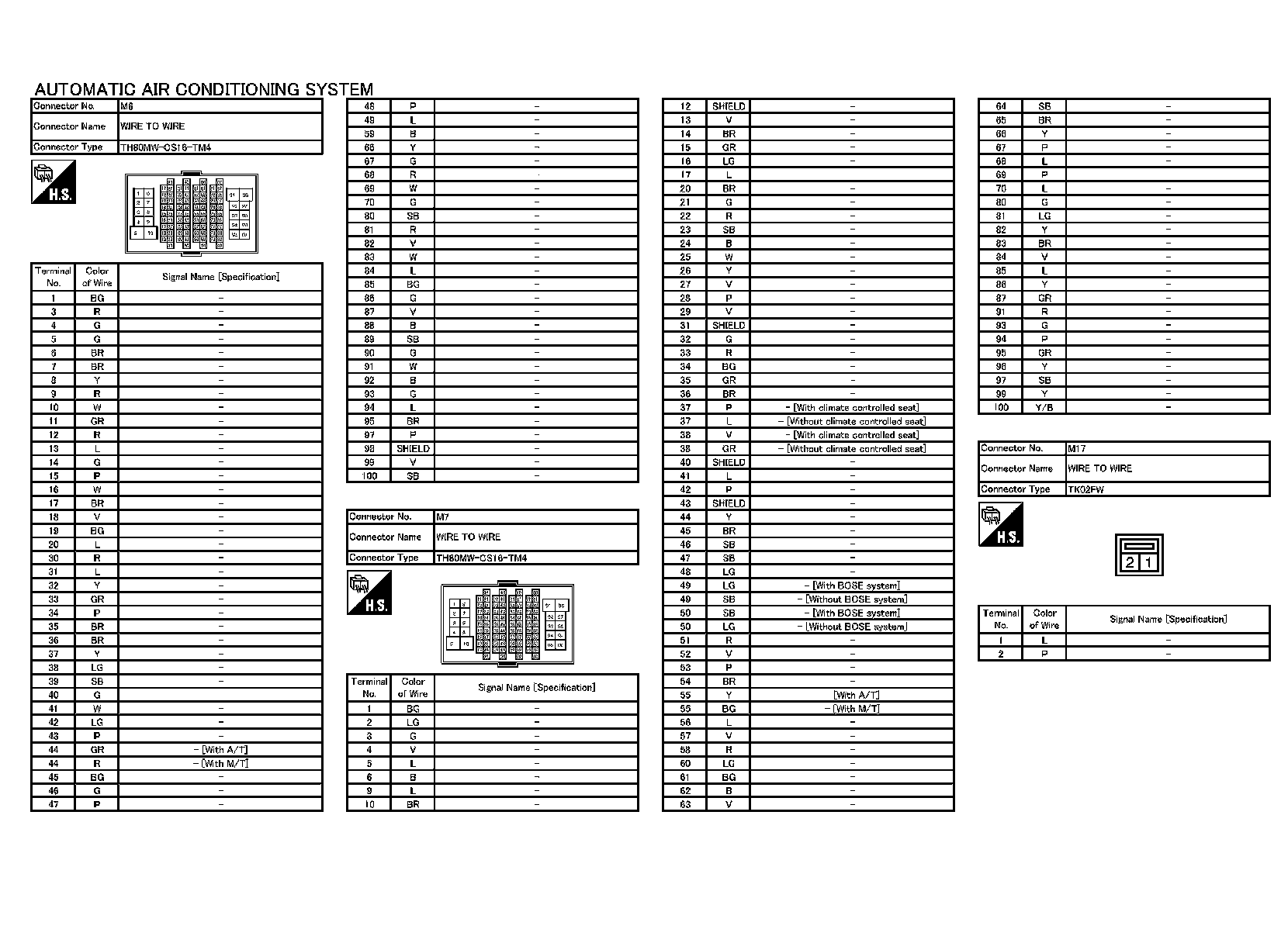

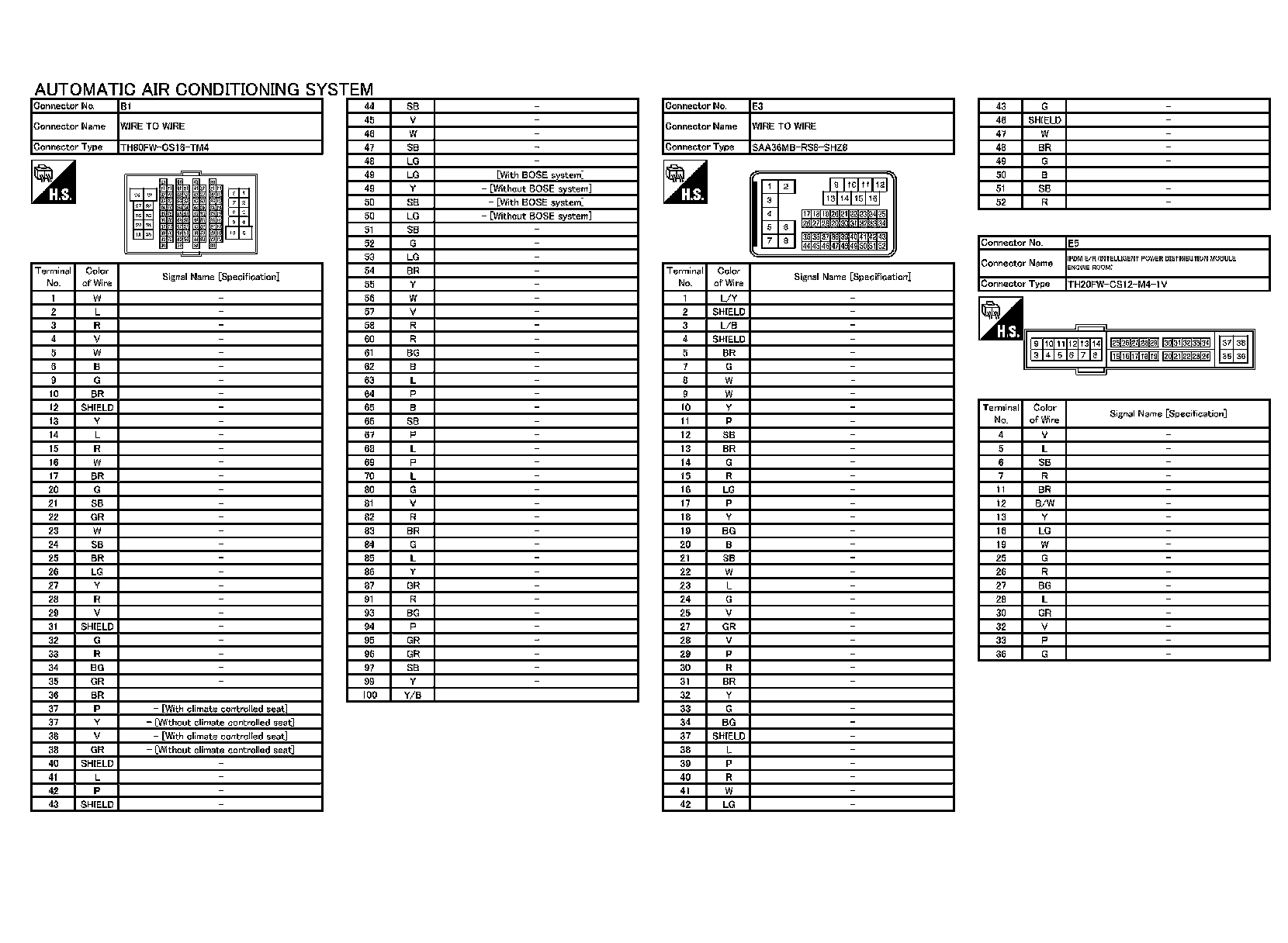

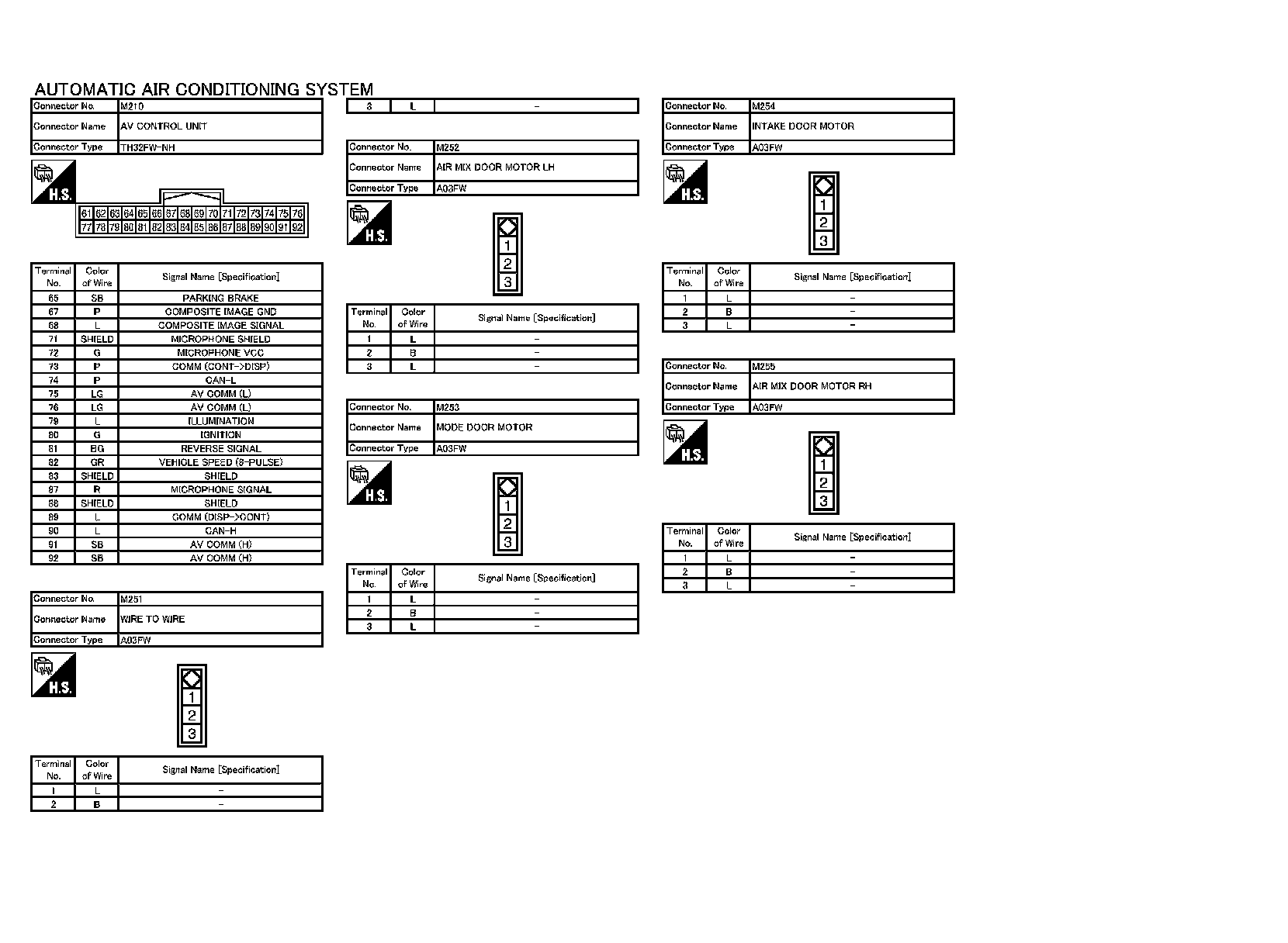

Wiring Diagram - AUTOMATIC AIR CONDITIONING SYSTEM -
