Blower Unit

BLOWER UNIT


BLOWER UNIT : Removal and Installation


REMOVAL

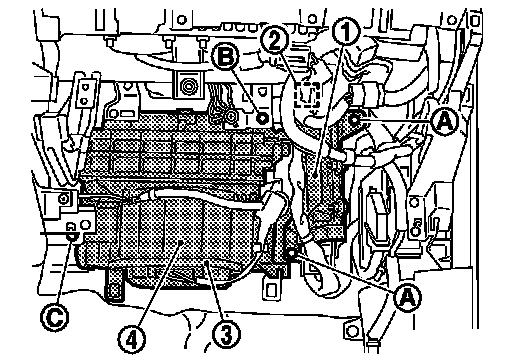

1. Remove instrument assist lower panel. (A/T models) or (M/T models).





2. Disconnect ECM (1) connectors.
3. Remove mounting nuts (A), and then remove ECM with bracket attached.
4. Disconnect intake door motor (2) connector and blower motor
(3) connector.
5. Remove mounting bolt (B) and screw (C), from blower unit (4).
6. Remove blower unit.

CAUTION:
Move blower unit rightward, and remove locating pin (1 part) and joint. Then remove blower unit downward.

INSTALLATION
Installation is basically the reverse order of removal.






Arrow: Vehicle Front

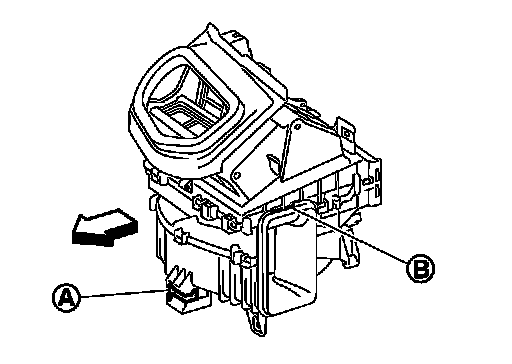

CAUTION:
Check locating pin (A) and joint (B) are securely inserted.
