Rear Floor Duct 1

DUCT AND GRILLE


REAR FLOOR DUCT 1 REAR FLOOR DUCT 1 : Removal and Installation


REMOVAL
1. Remove center console assembly. (A/T models) or Exploded View M/T Models, "M/T MODELS : Exploded View".
2. Remove Instrument side panel RH. (A/T models) or Exploded View M/T Models, "M/T MODELS : Exploded View" (M/T models).
3. Remove AV control unit. Refer to the following.
- Exploded View Base Audio Without Navigation (BASE AUDIO WITHOUT NAVIGATION)
- Exploded View Bose Audio Without Navigation (BOSE AUDIO WITHOUT NAVIGATION)
- Exploded View Bose Audio With Navigation (BOSE AUDIO WITH NAVIGATION)

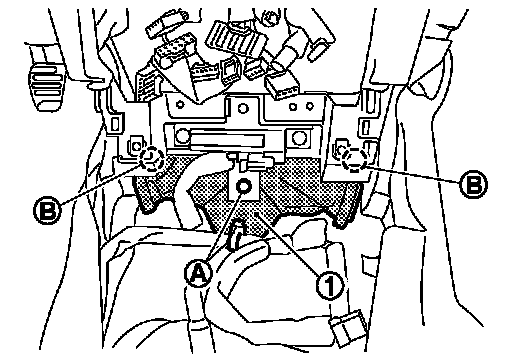

4. Remove mounting clip (A).
5. Remove mounting clips (B), and then peel back floor carpet to a point where rear floor duct 1 (1) is visible.
6. Remove rear floor duct 1 to rightward.

INSTALLATION
Installation is basically the reverse order of removal.
