Front Defroster Nozzle, Side Defroster Nozzle And Ventilator Duct

DUCT AND GRILLE


FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT : Removal and Installation


REMOVAL
1. Remove instrument panel assembly. (A/T models) or (M/T models).

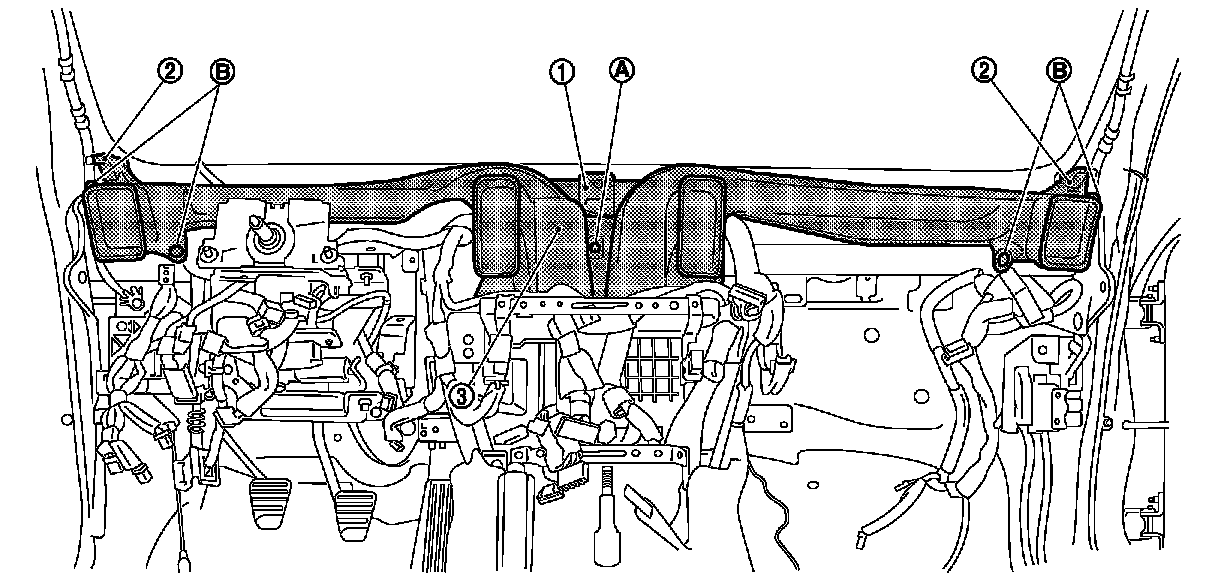

2. Remove mounting screw (A).





3. Remove clips (B), and then remove defroster nozzle (1), side defroster nozzle (2) and ventilator duct (3).

INSTALLATION
Installation is basically the reverse order of removal.
