FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2011
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Duct
>>
Service and Repair
>>
Exploded View
Exploded View

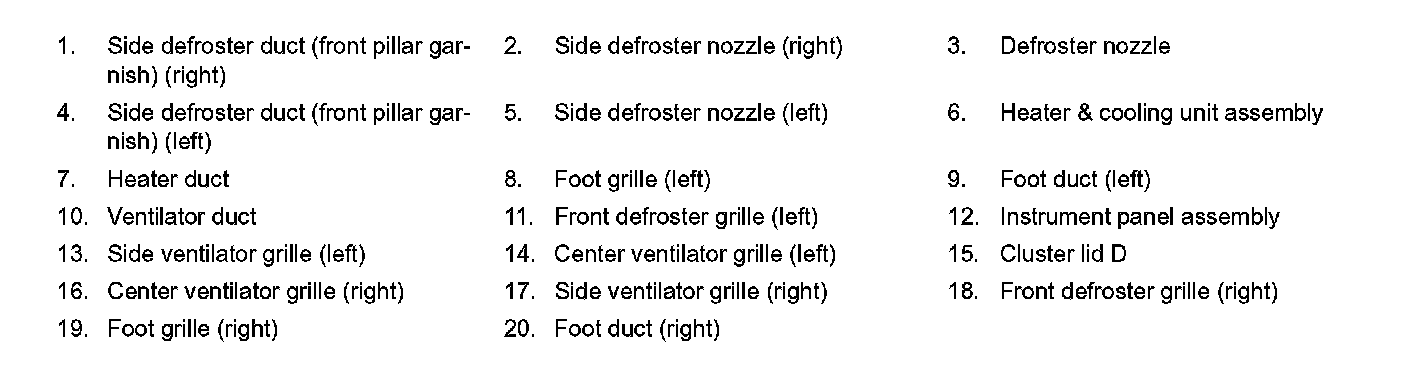

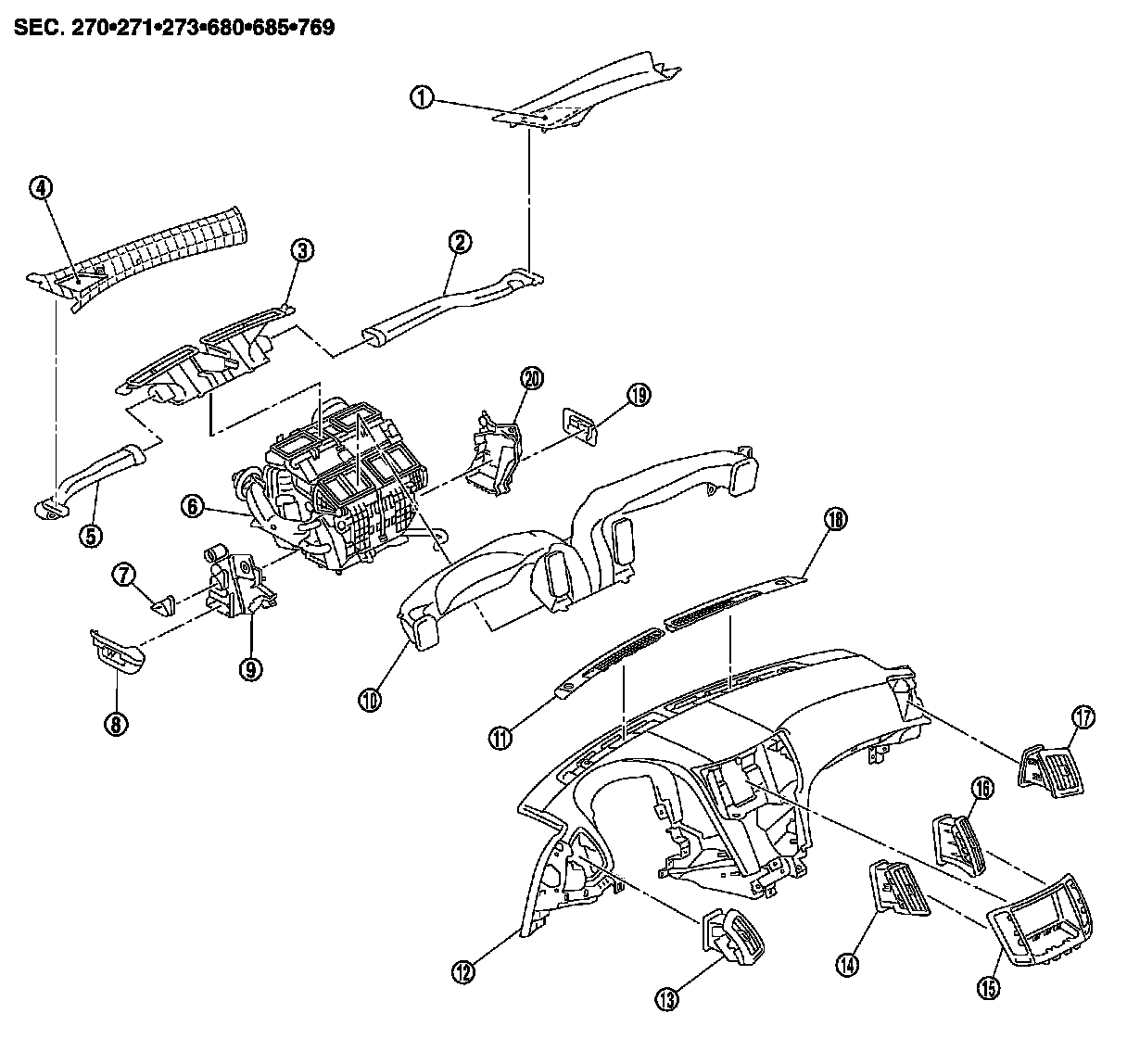

DUCT AND GRILLE
Exploded View

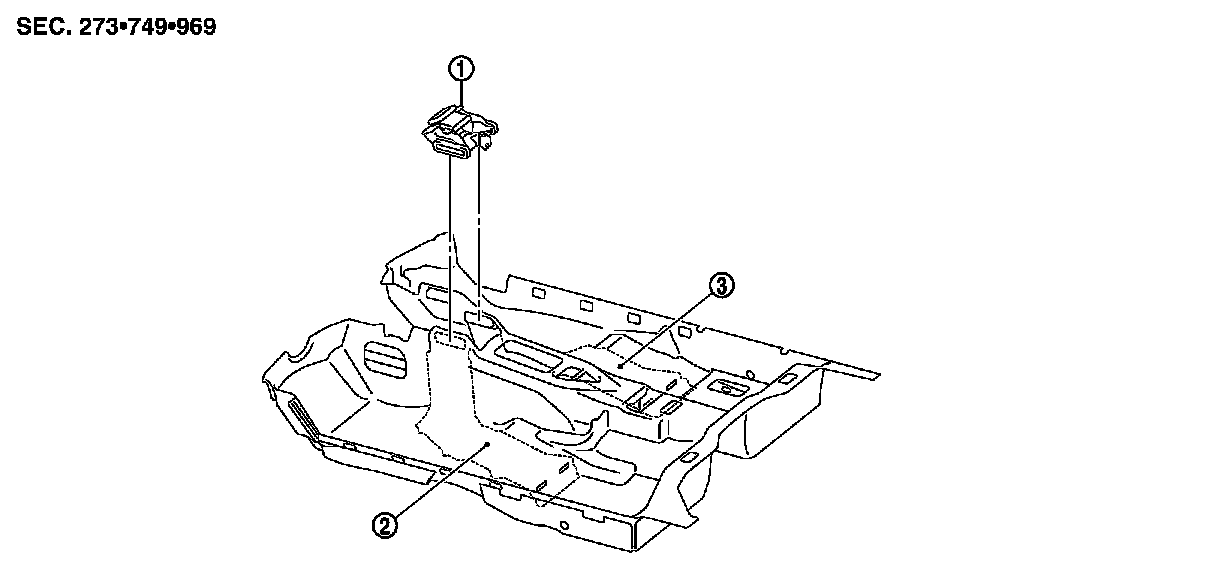

FRONT
REAR
