Inspection

WATER PUMP


Inspection


INSPECTION AFTER REMOVAL
- Check for badly rusted or corroded water pump body assembly.

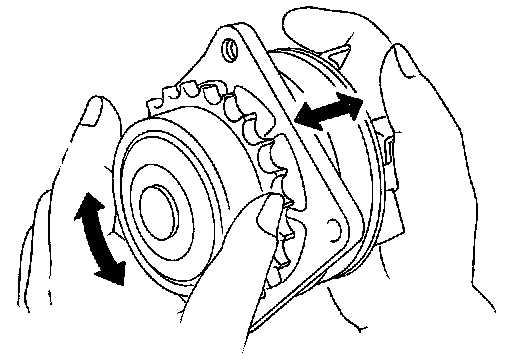

- Check for rough operation due to excessive end play.
- If anything is found, replace water pump.

INSPECTION AFTER INSTALLATION
- Check that the reservoir tank cap is tightened.
- Check for leakage of engine coolant using the radiator cap tester adapter and the radiator cap tester (commercial service tool). Inspection.
- Start and warm up the engine. Visually check that there is no leakage of engine coolant.
