Inspection

SPARK PLUG


Inspection


INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.

Spark plug (Standard type) : Specifications "Spark Plug".

CAUTION:





- Never drop or shock spark plug.

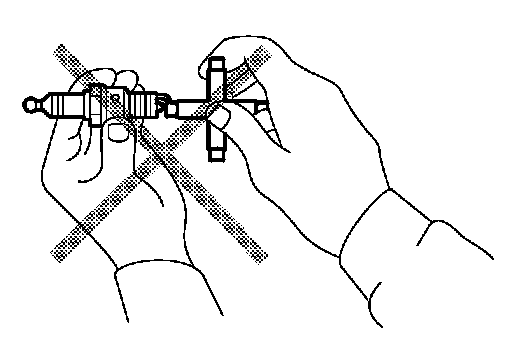

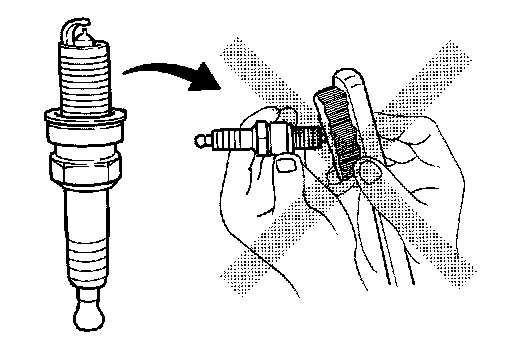

- Never use a wire brush for cleaning.
- If plug tip is covered with carbon, use spark plug cleaner to clean.

Cleaner air pressure
: Less than 588 kPa (6 kg/cm2, 85 psi)
Cleaning time
: Less than 20 seconds





- Spark plug gap adjustment is not required between replacement intervals.
- Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the specified replacement mileage. [1][2]Spark Plug.
