Front Crankshaft Seal: Service and Repair

OIL SEAL


FRONT OIL SEAL : Removal and Installation


REMOVAL
1. Remove the following parts:
- Engine undercover with power tool.
- Drive belt: Exploded View.
- Crankshaft pulley: Exploded View.

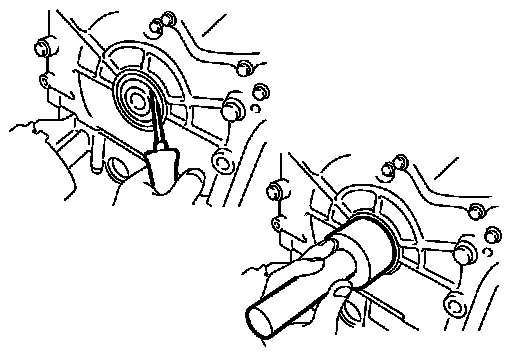

2. Remove front oil seal using a suitable tool.

CAUTION:
Be careful not to damage front timing chain case and crankshaft.

INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.
2. Install front oil seal.

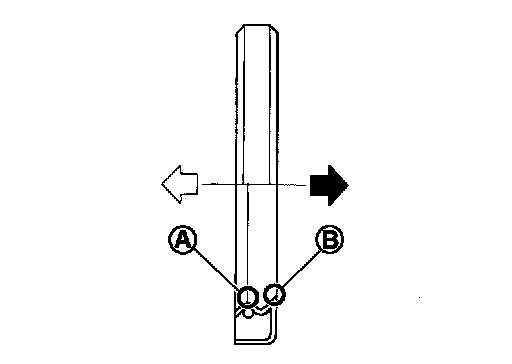

- Install front oil seal so that each seal lip is oriented as shown in the figure.

A : Oil seal lip
B : Dust seal lip
White Arrow: Engine Inside
Black Arrow: Engine Outside





- Using a suitable drift, press-fit until the height of front oil seal is level with the mounting surface.
- Suitable drift: outer diameter 60 mm (2.36 in), inner diameter
50 mm (1.97 in).
- Check that the garter spring is in position and seal lips are not inverted.

CAUTION:
- Be careful not to damage front timing chain case and crankshaft.
- Press-fit straight and avoid causing burrs or tilting oil seal.
3. Install in the reverse order of removal after this step.
