Tightening Torque

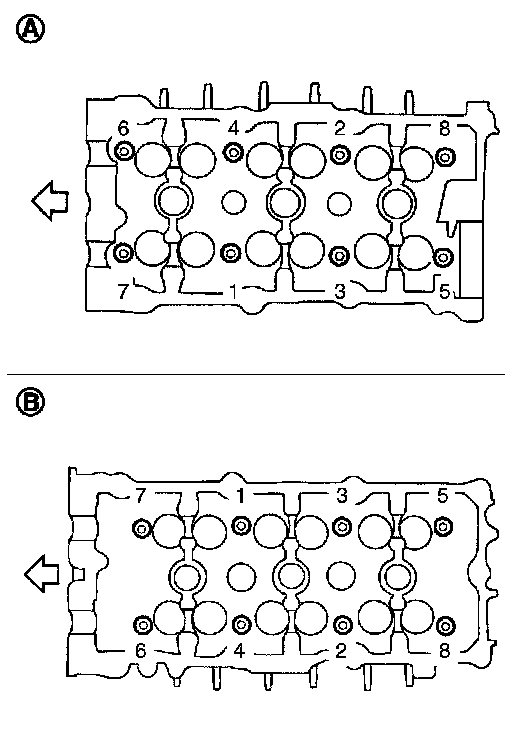

Cylinder head





A : Bank 1
B : Bank 2

Tighten all bolts 105 Nm (11 kg-m, 77 ft-lb)
Completely loosen all bolts 0 Nm (0 kg-m, 0 ft-lb)
Tighten all bolts 40.0 Nm (4.1 kg-m, 30 ft-lb)
Turn all bolts 95 degrees
Turn all bolts 95 degrees again

Cylinder Head Bolts Outer Diameter





Whenever the size difference between (B) and (A) exceeds the limit, replace them with new one

c : 48 mm (1.89 in)
d : 11 mm (0.43 in)

Limit [(B) - (A)] 0.18 mm (0.0071 in)

Head surface distortion

Standard Less than 0.03 mm (0.0012 in)
Limit 0.1 mm (0.004 in)

VVEL ladder assembly





A : Bank 1
B : Bank 2

Step 1 1.96 Nm (0.20 kg-m, 1 ft-lb)
Step 2 5.88 Nm (0.60 kg-m, 4 ft-lb)
Step 3 10.4 Nm (1.1 kg-m, 8 ft-lb)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
