Removal And Installation

WATER INLET AND THERMOSTAT ASSEMBLY


Removal and Installation


REMOVAL
1. Remove engine cover. Exploded View.
2. Remove air duct and air cleaner case assembly (LH). Exploded View.
3. Remove reservoir tank. Exploded View.
4. Remove engine undercover with power tool.
5. Drain engine coolant from radiator drain plug at the bottom of radiator. Draining Engine Coolant.

CAUTION:
- Perform this step when the engine is cold.
- Never spill engine coolant on drive belt.
6. Disconnect radiator hose (lower).
7. Disconnect intake valve timing control valve harness connector (LH), and remove intake valve timing control solenoid.

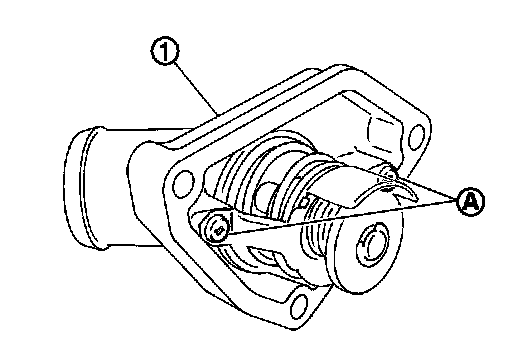

8. Remove water inlet and thermostat assembly (1).

A : Do not loosen these screw.


CAUTION:
Never disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.

INSTALLATION
Note the following, and install in the reverse order of removal.
- Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.
