Passenger Seat Control Unit





PASSENGER SEAT CONTROL UNIT

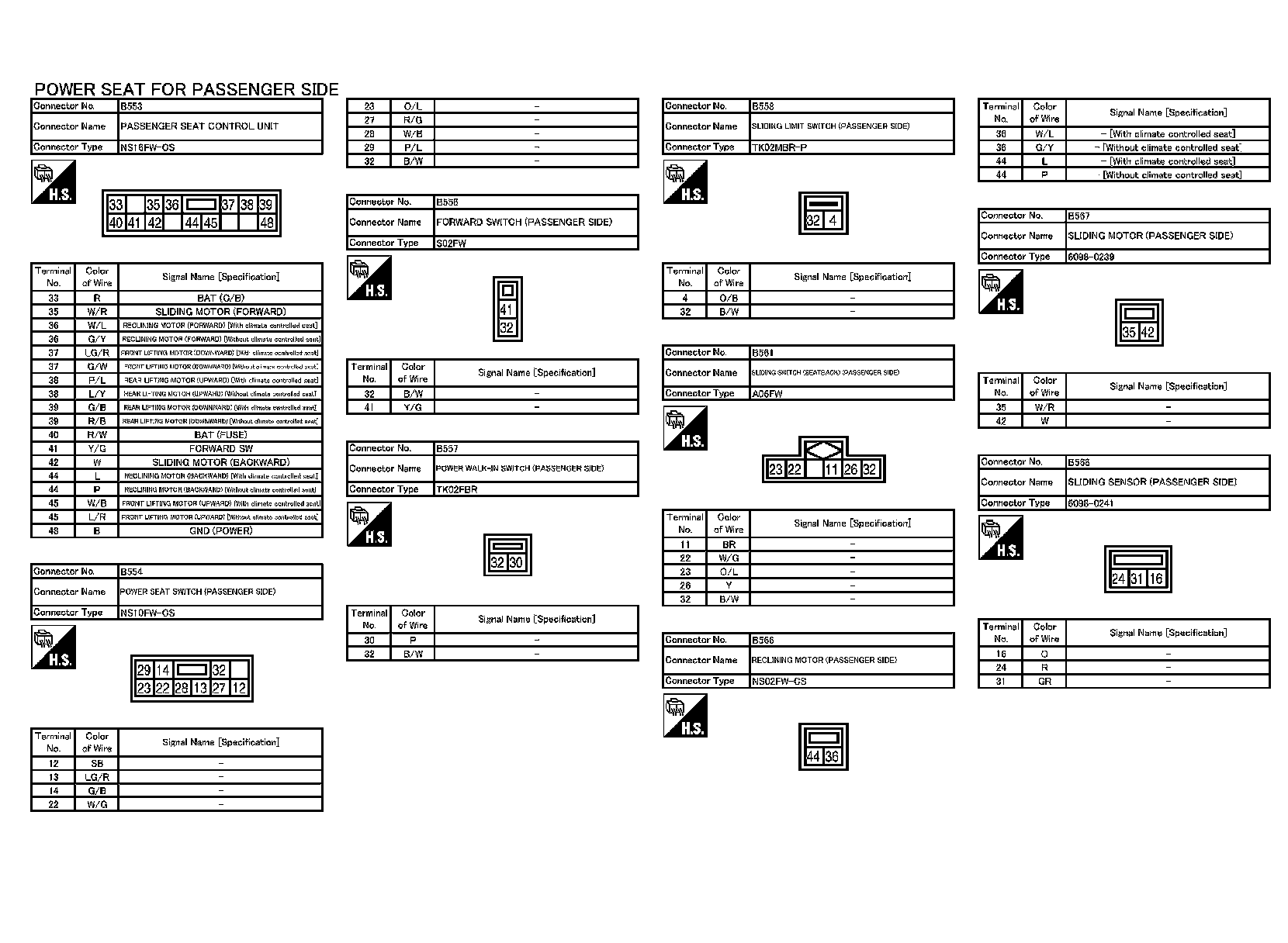

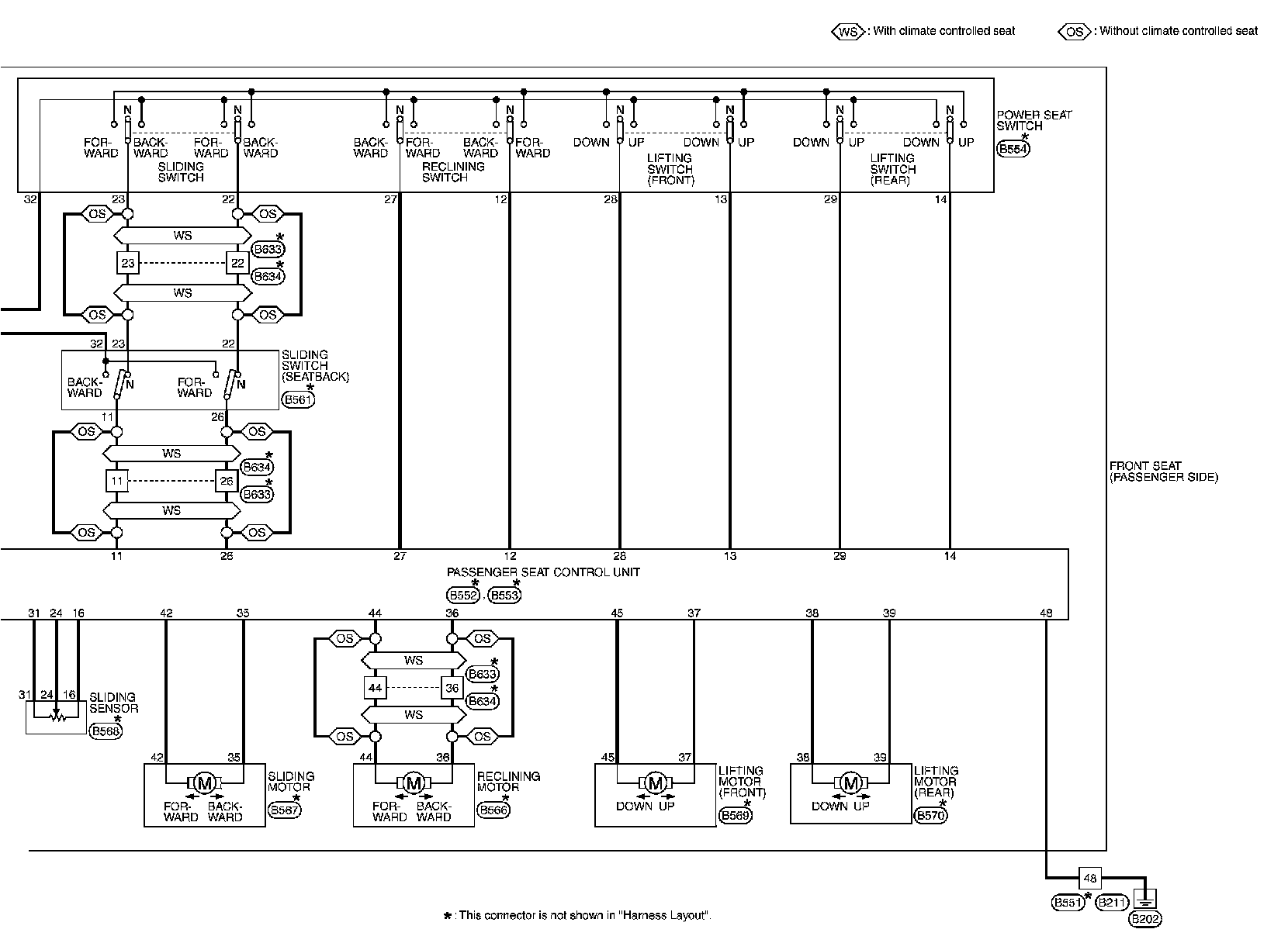

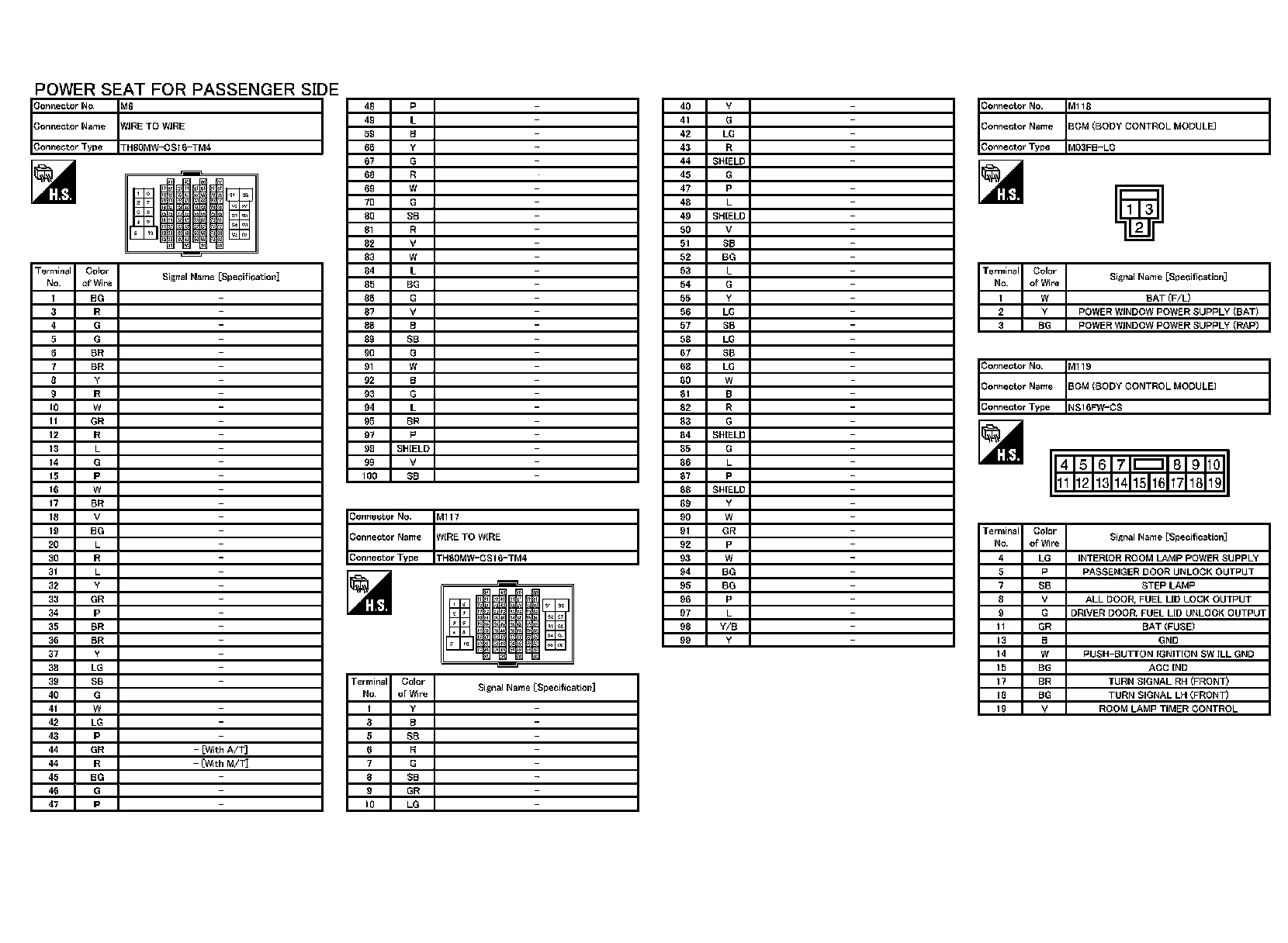

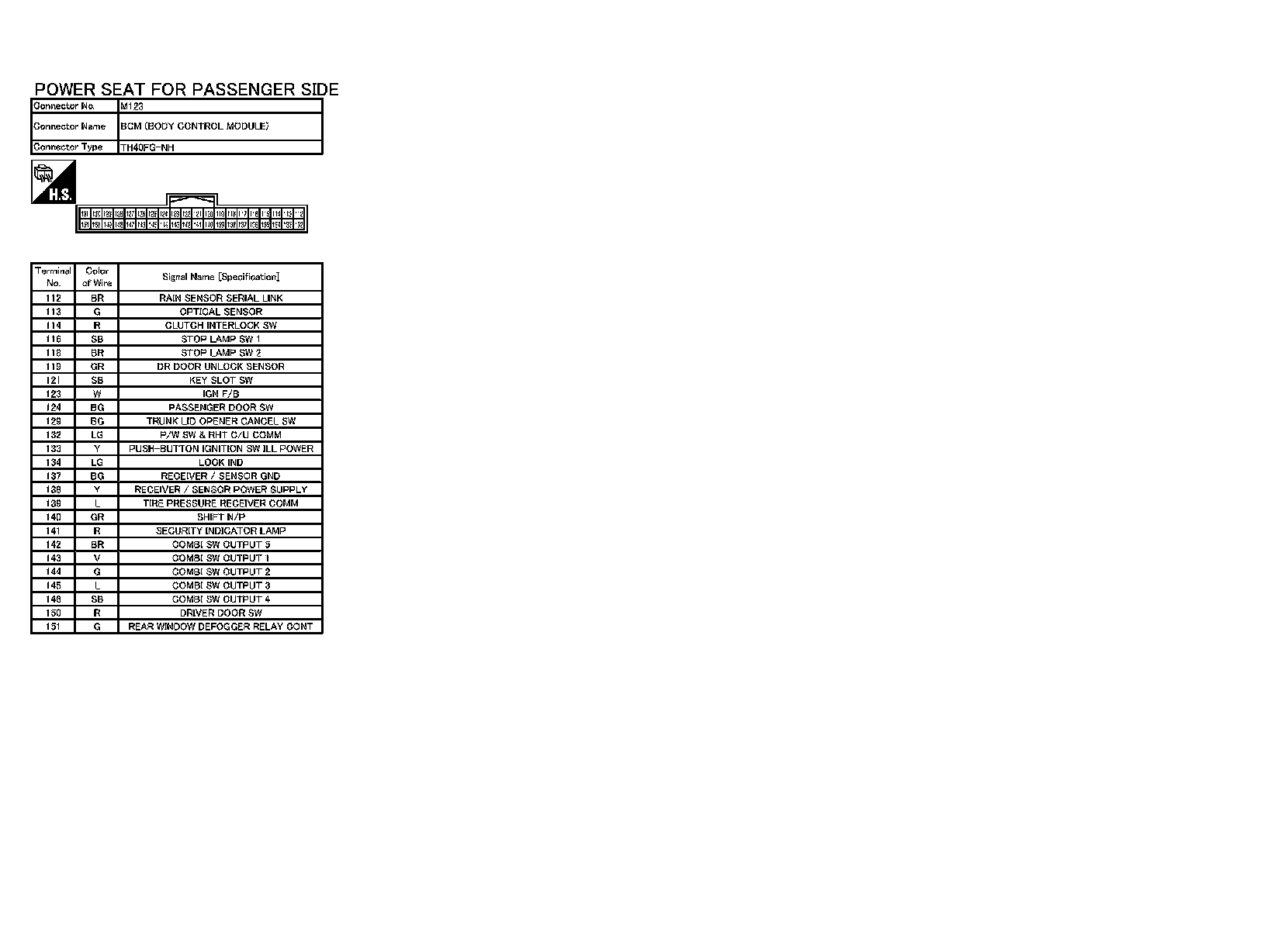

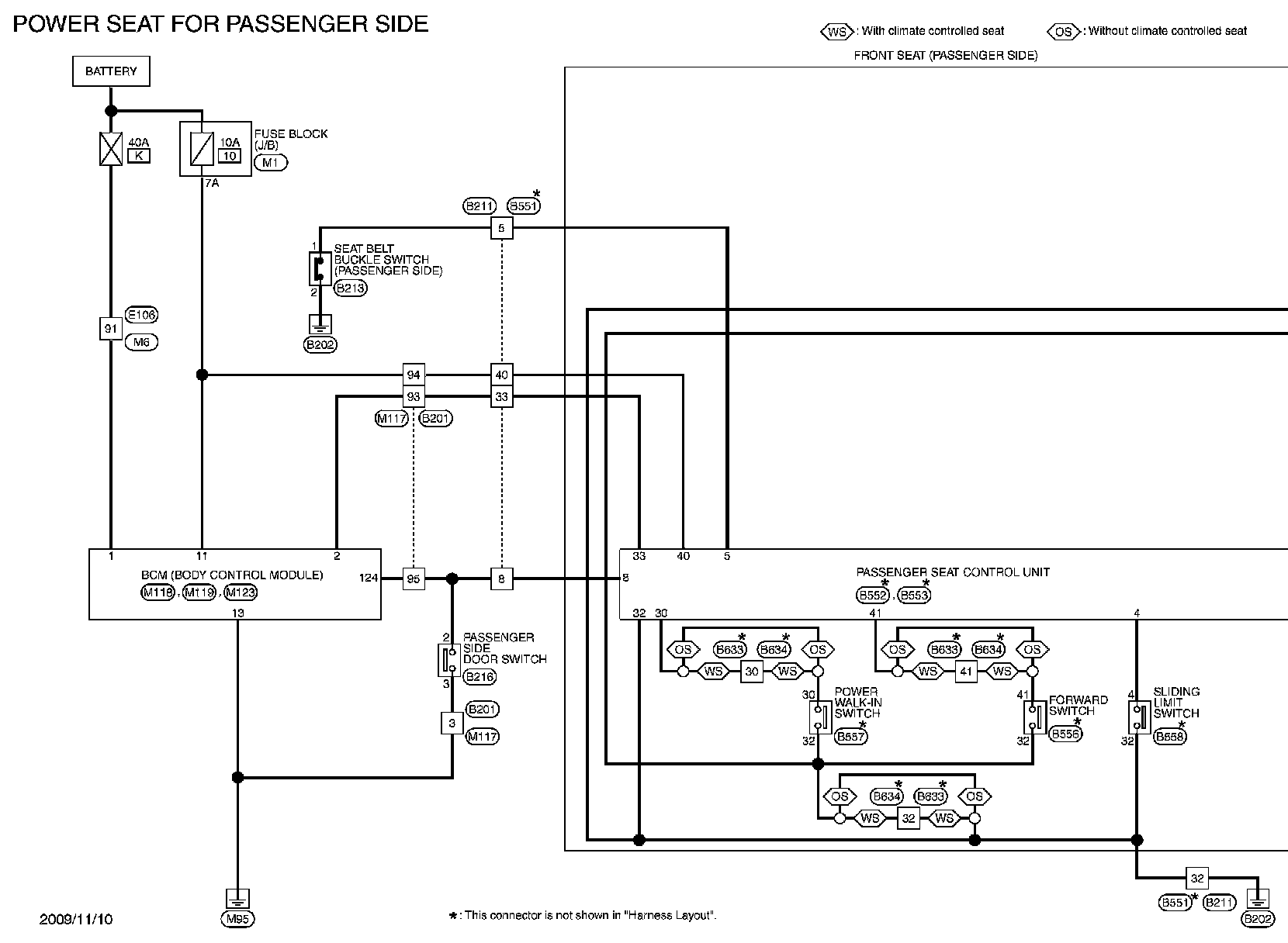

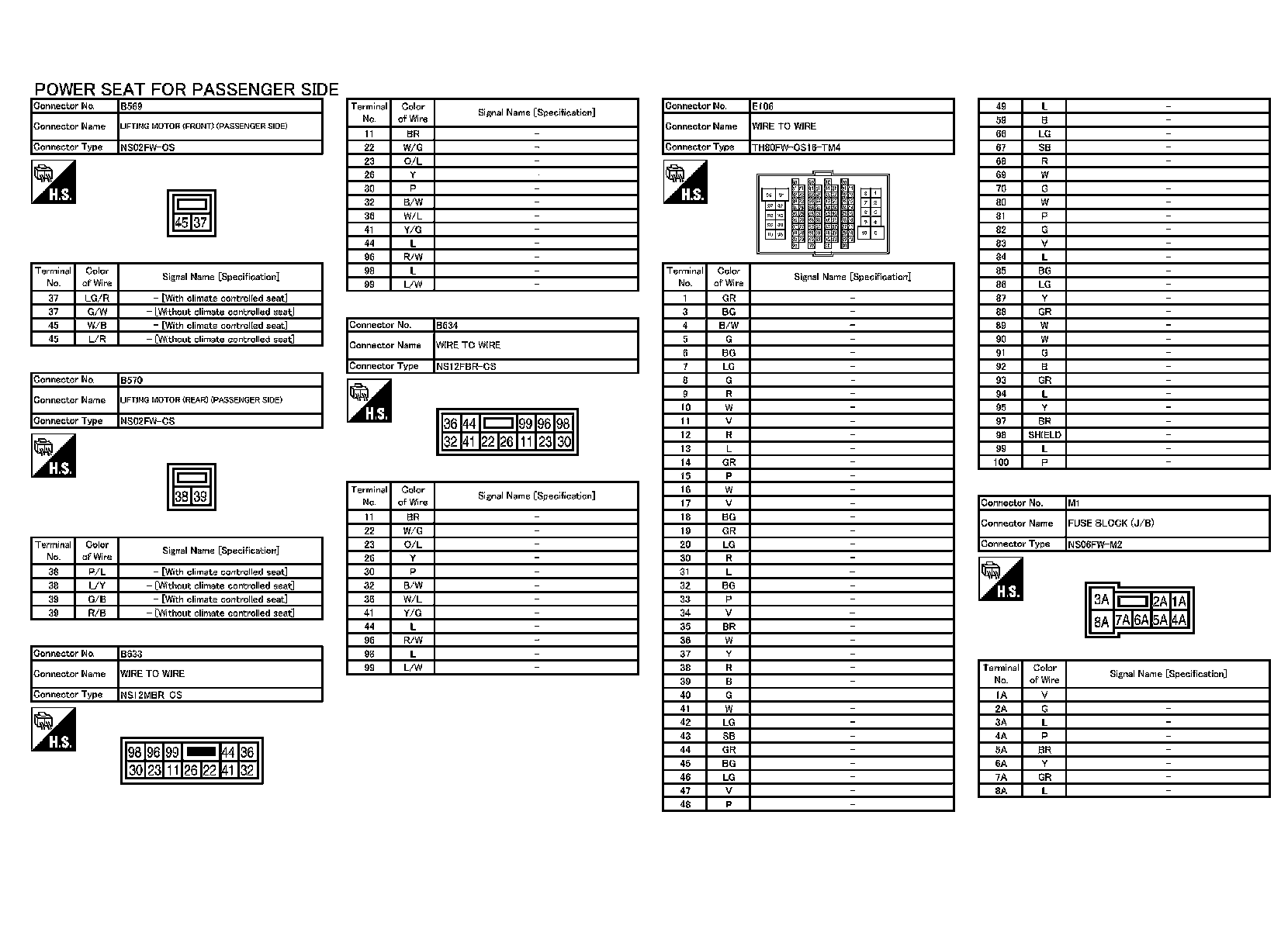

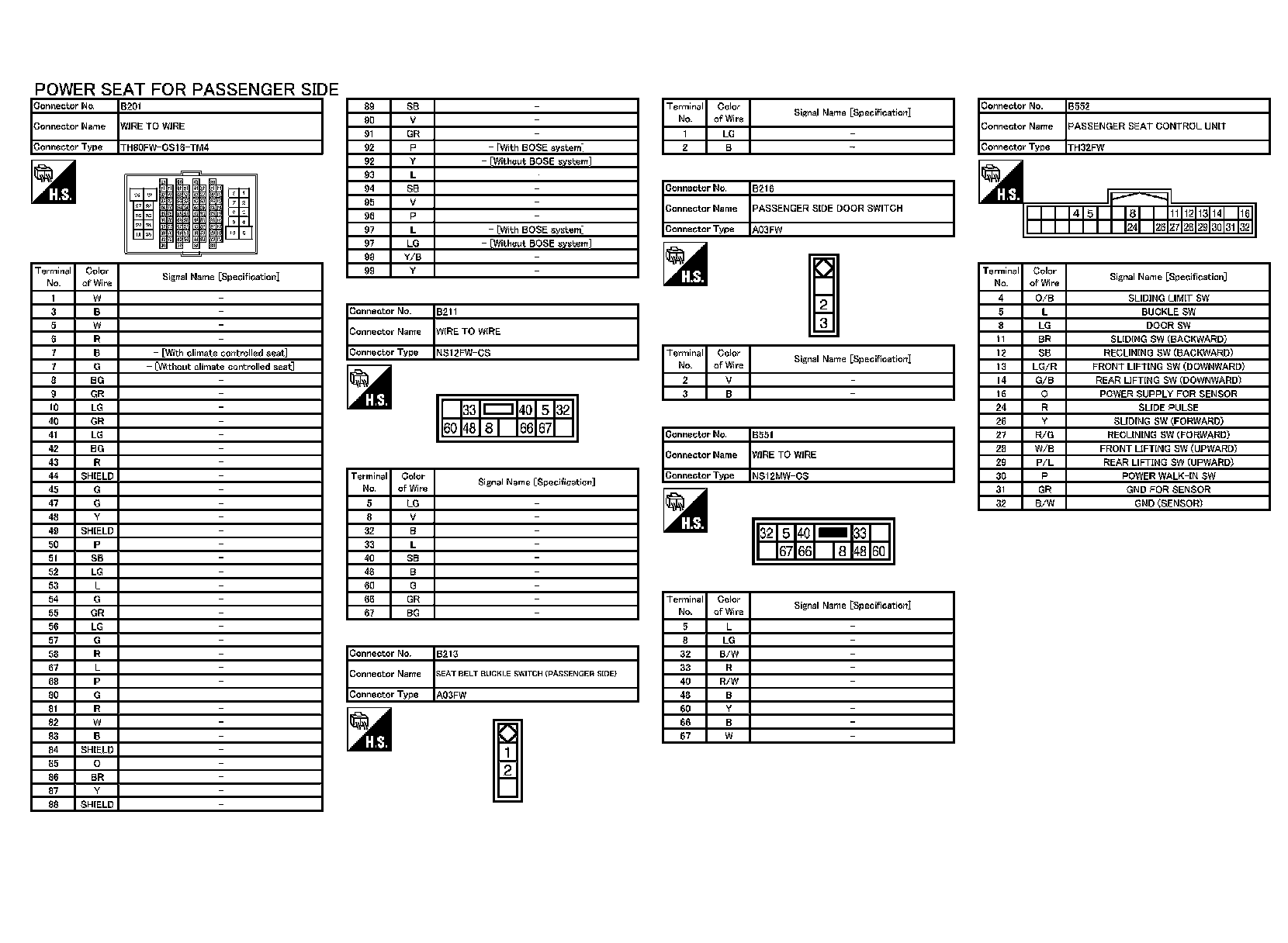

Wiring Diagram - POWER SEAT SYSTEM FOR PASSENGER SIDE -
