Driver Seat Control Unit (Without Automatic Drive Positioner)





DRIVER SEAT CONTROL UNIT (WITHOUT AUTOMATIC DRIVE POSITIONER)

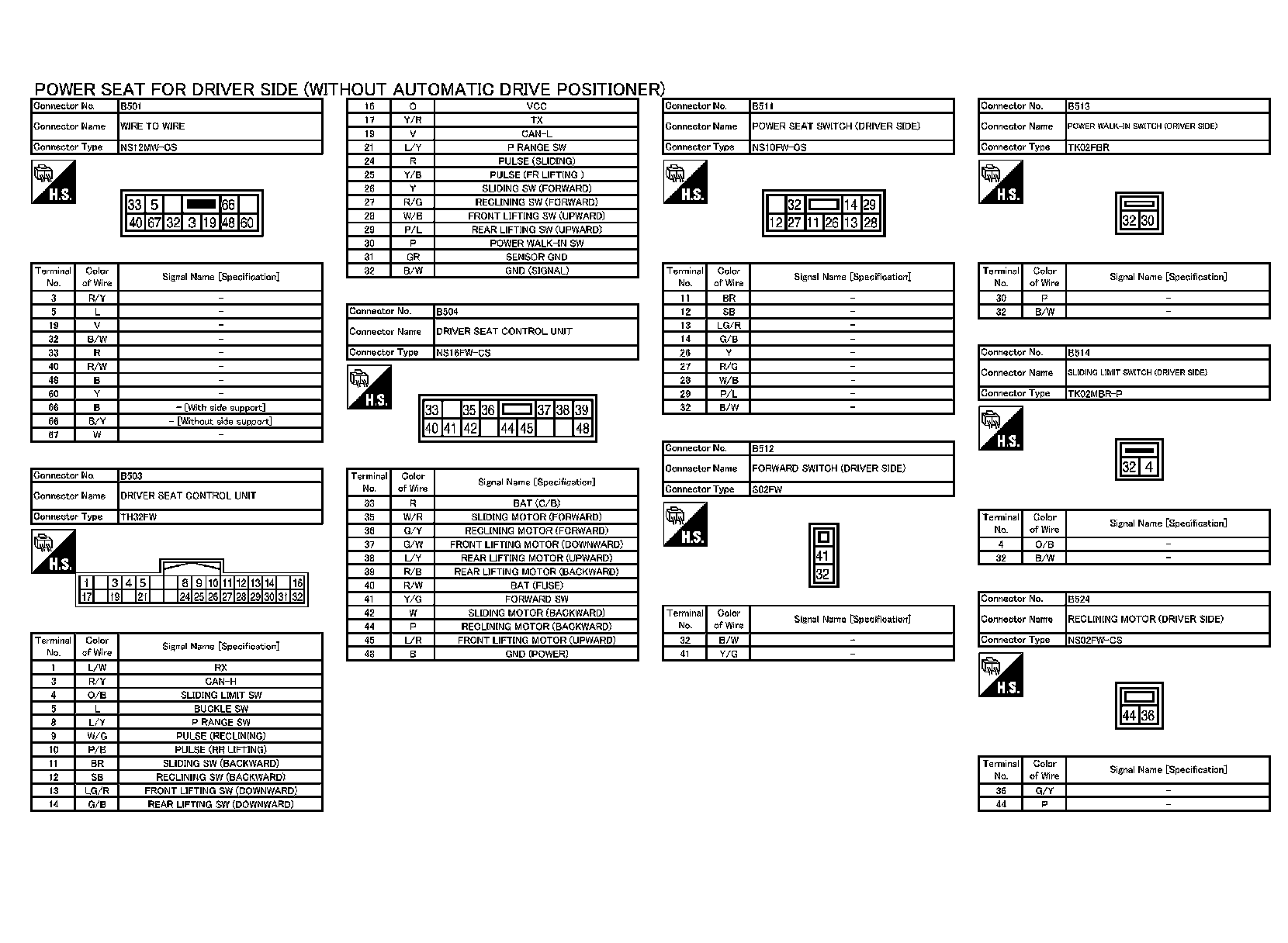

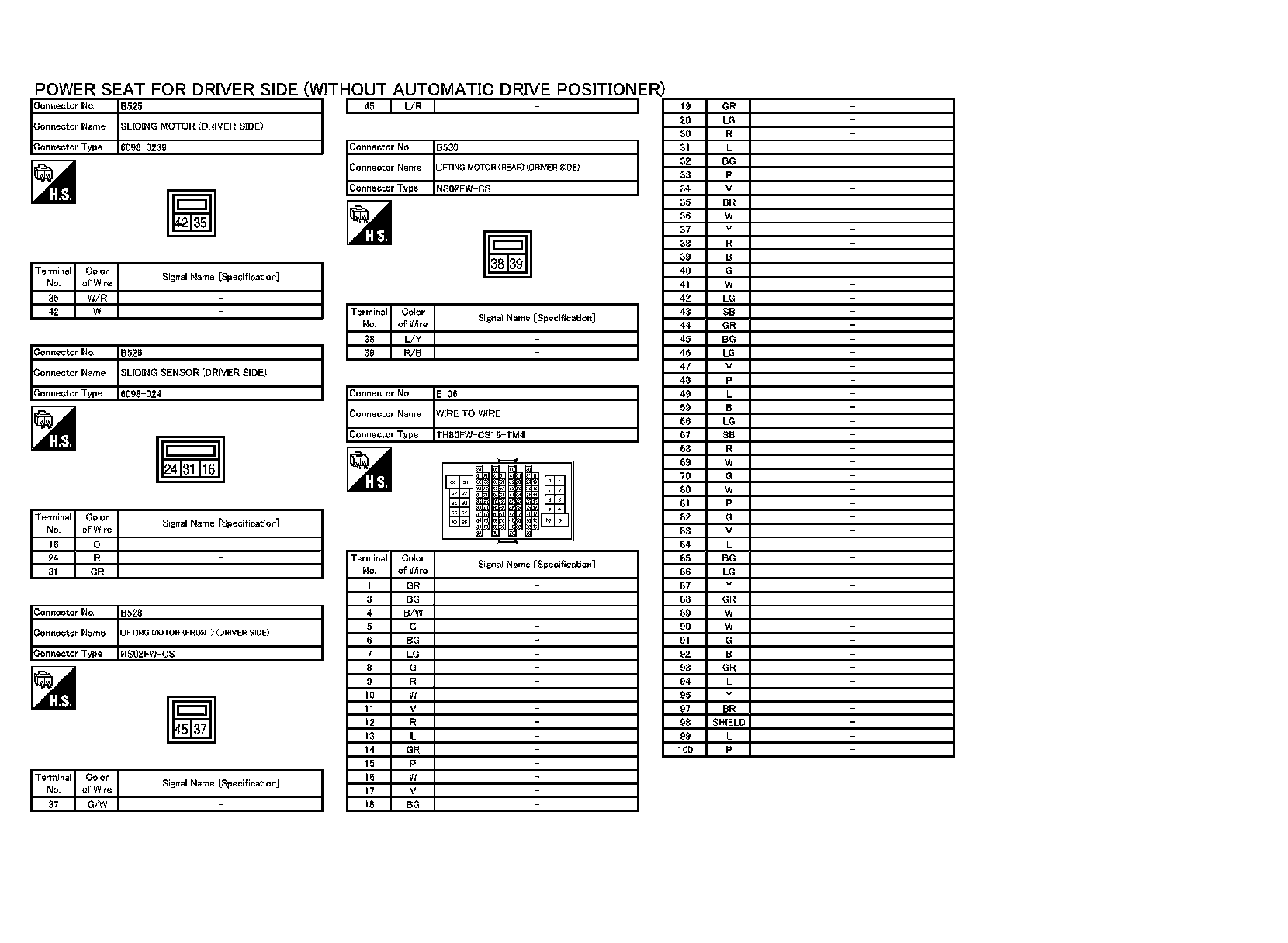

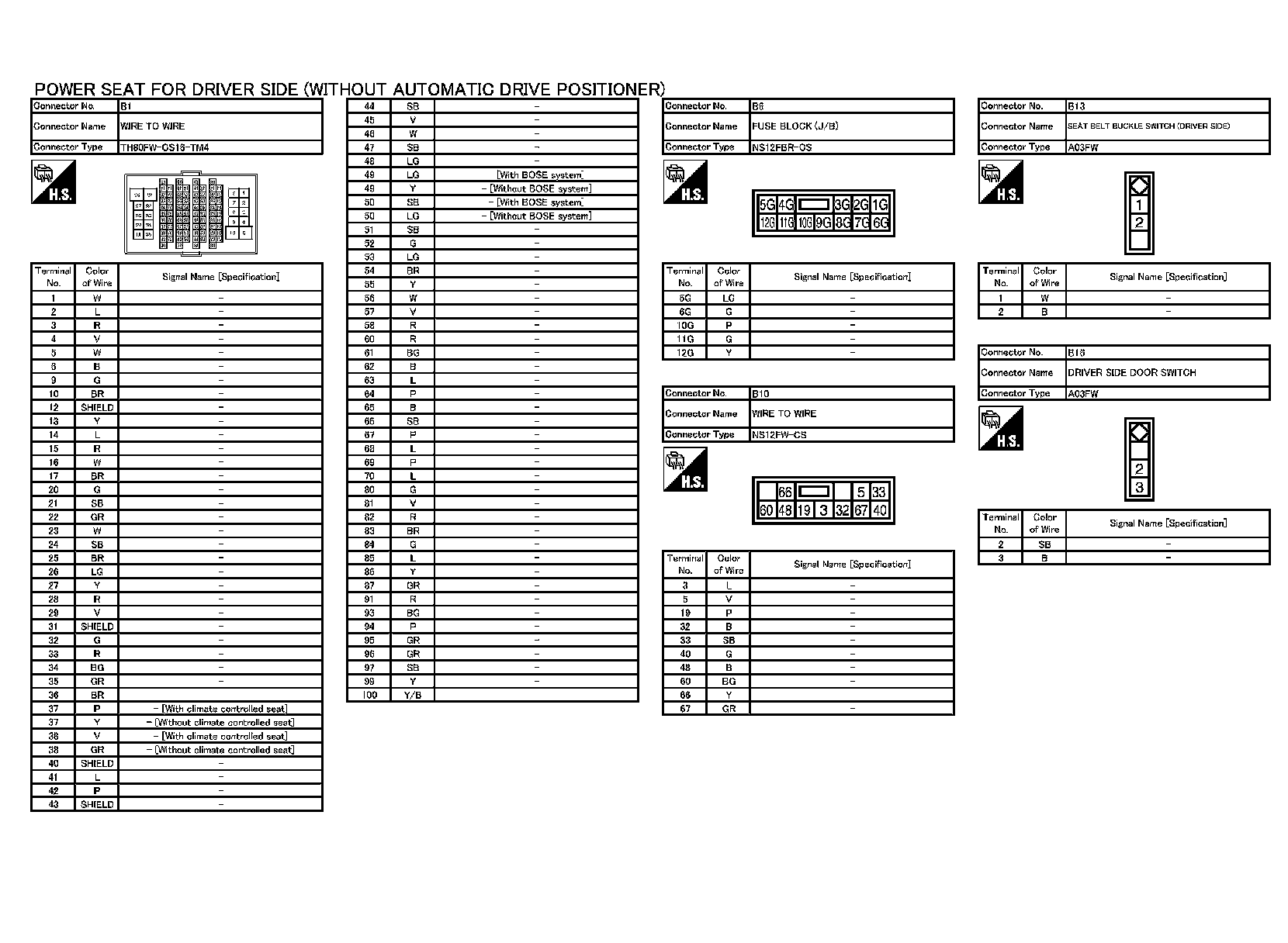

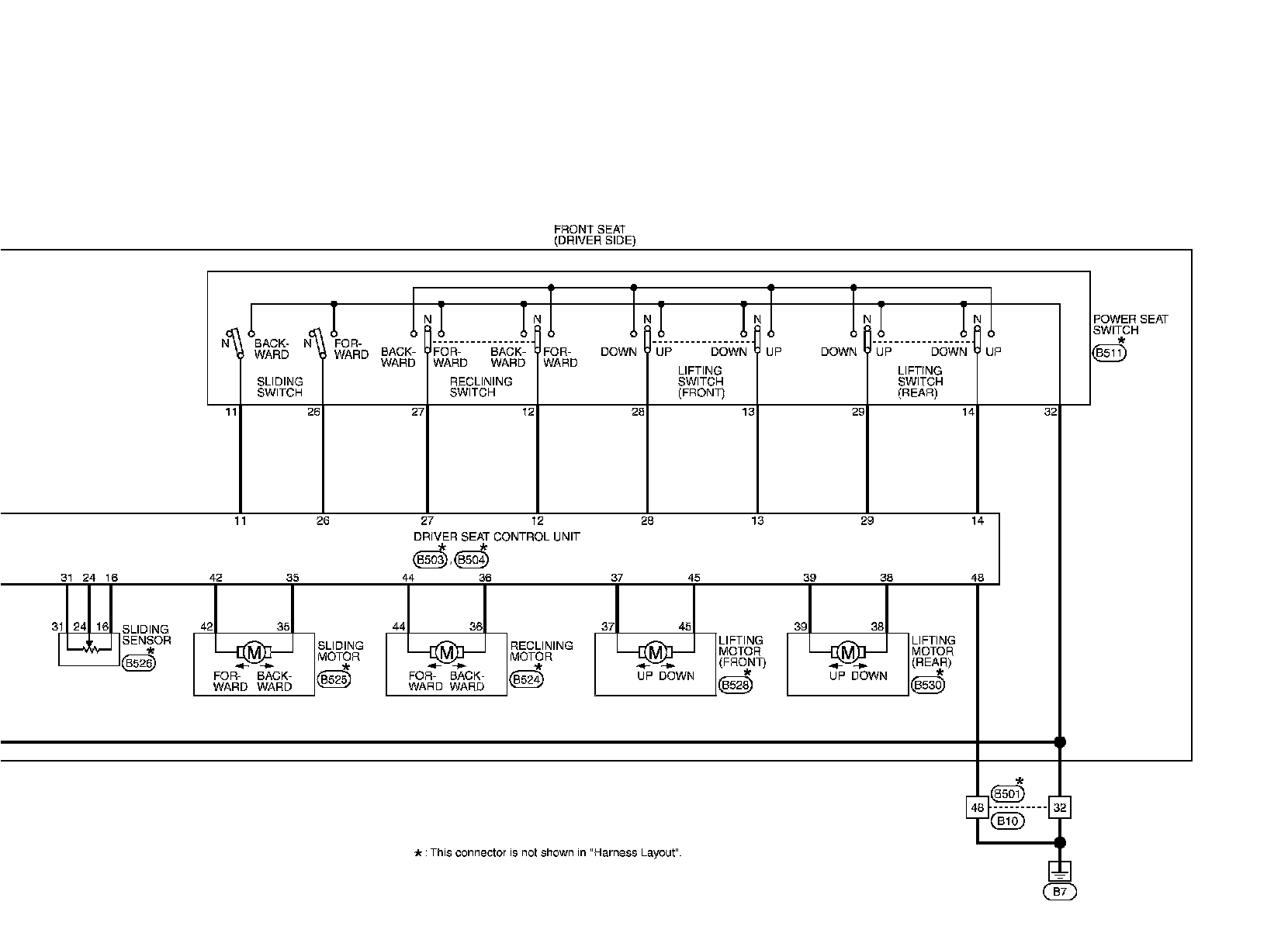

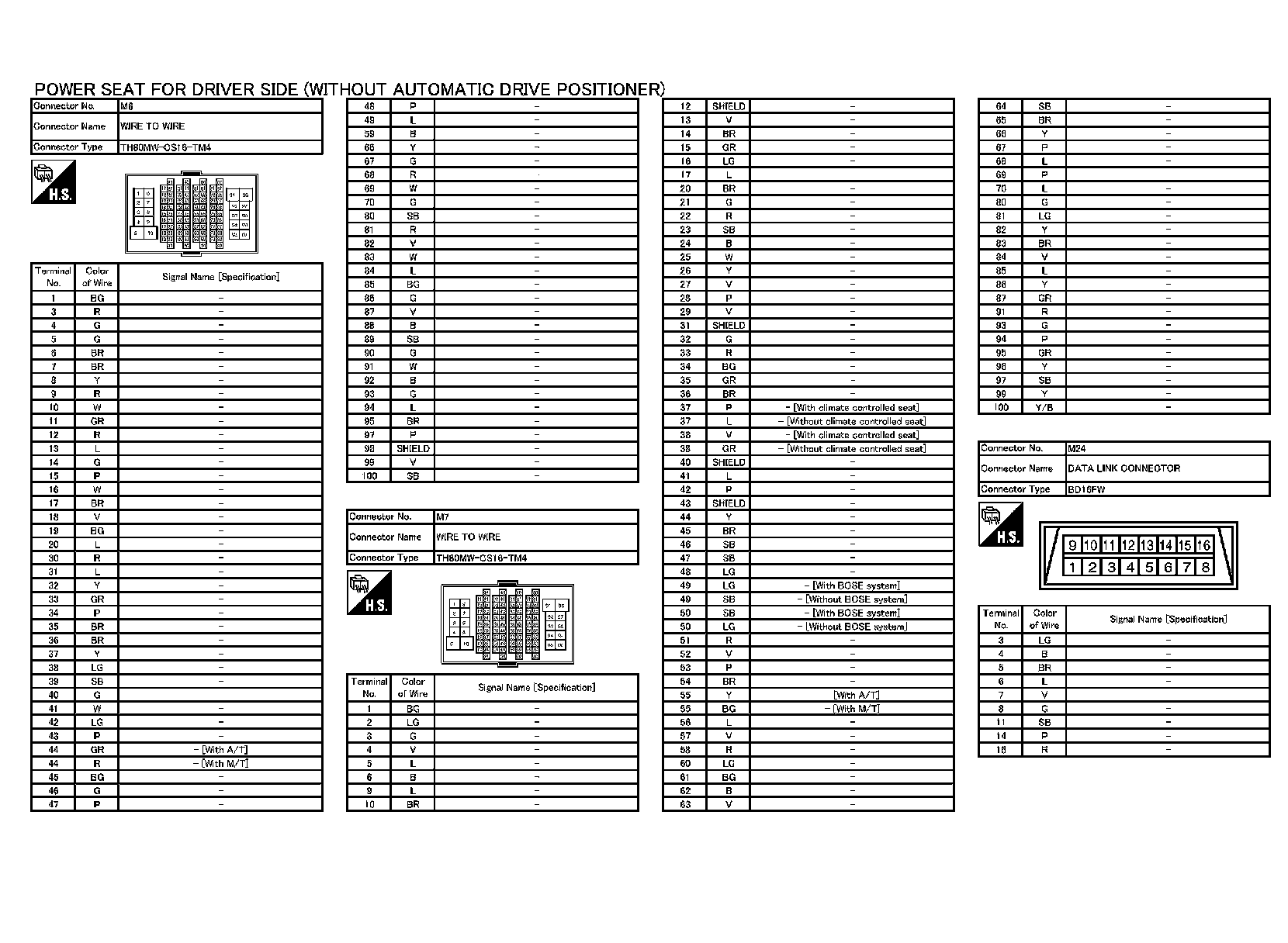

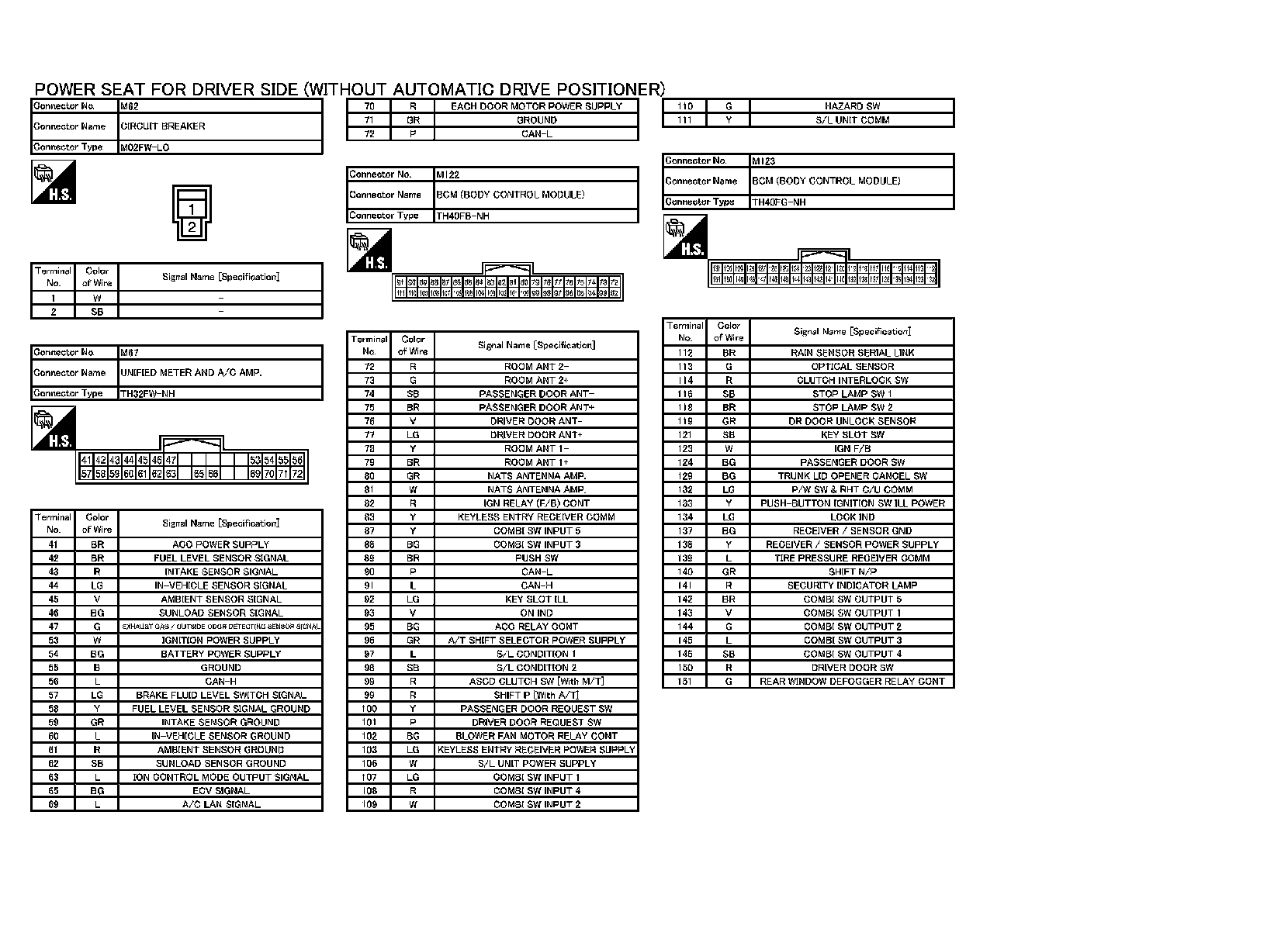

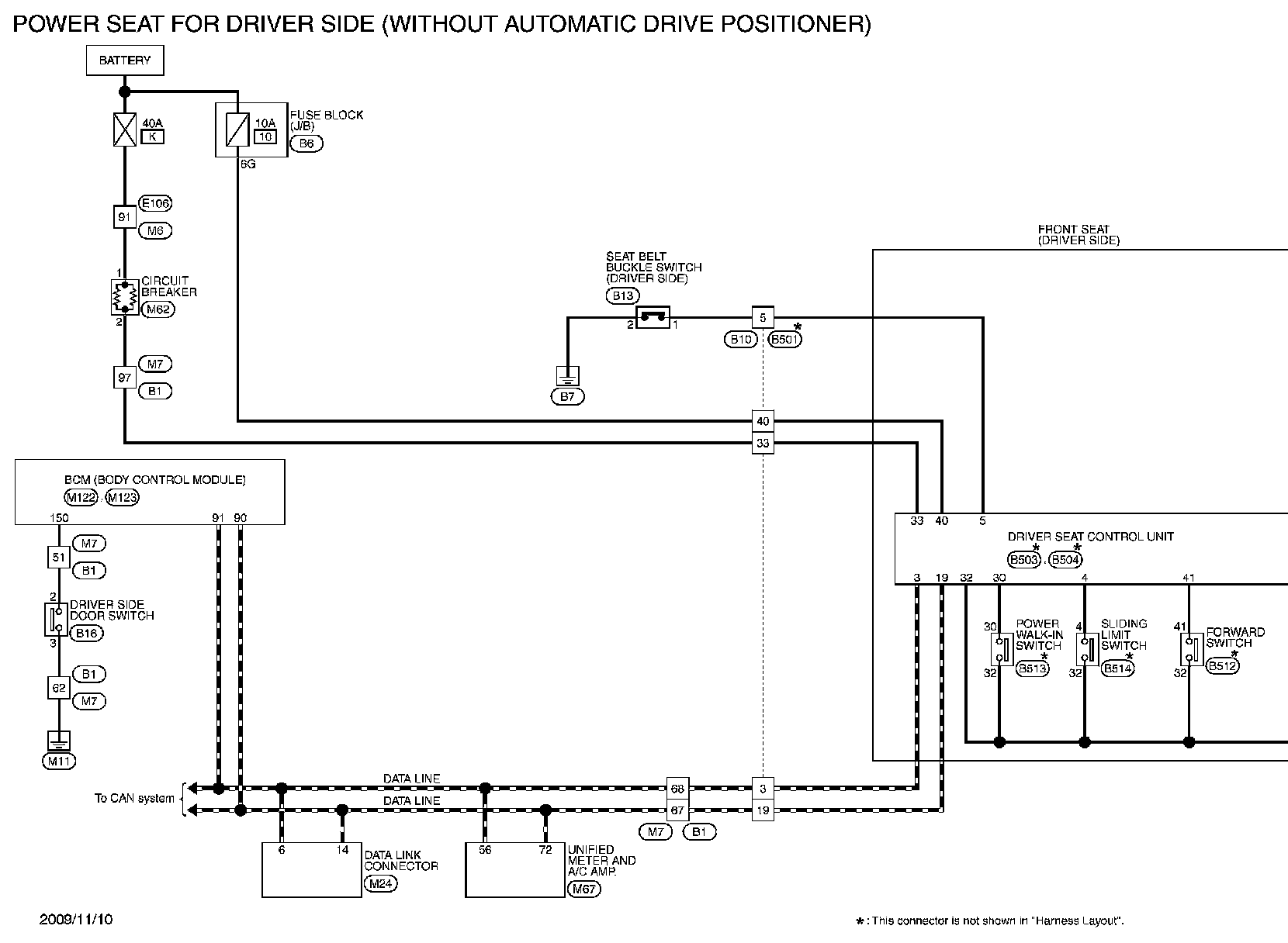

Wiring Diagram - POWER SEAT SYSTEM FOR DRIVER SIDE (WITHOUT AUTOMATIC DRIVE POSITIONER) -
