Bose Audio Without Navigation

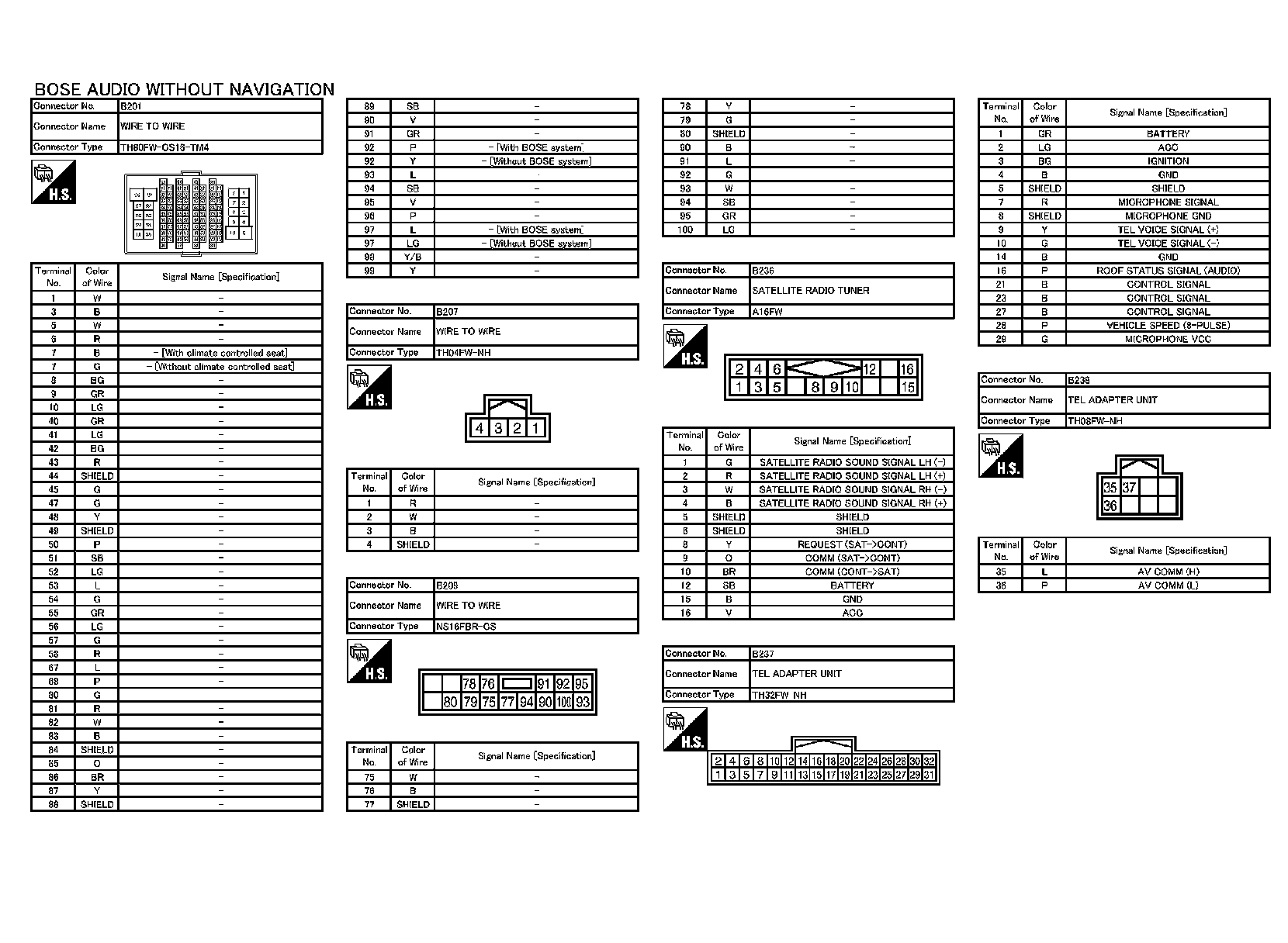

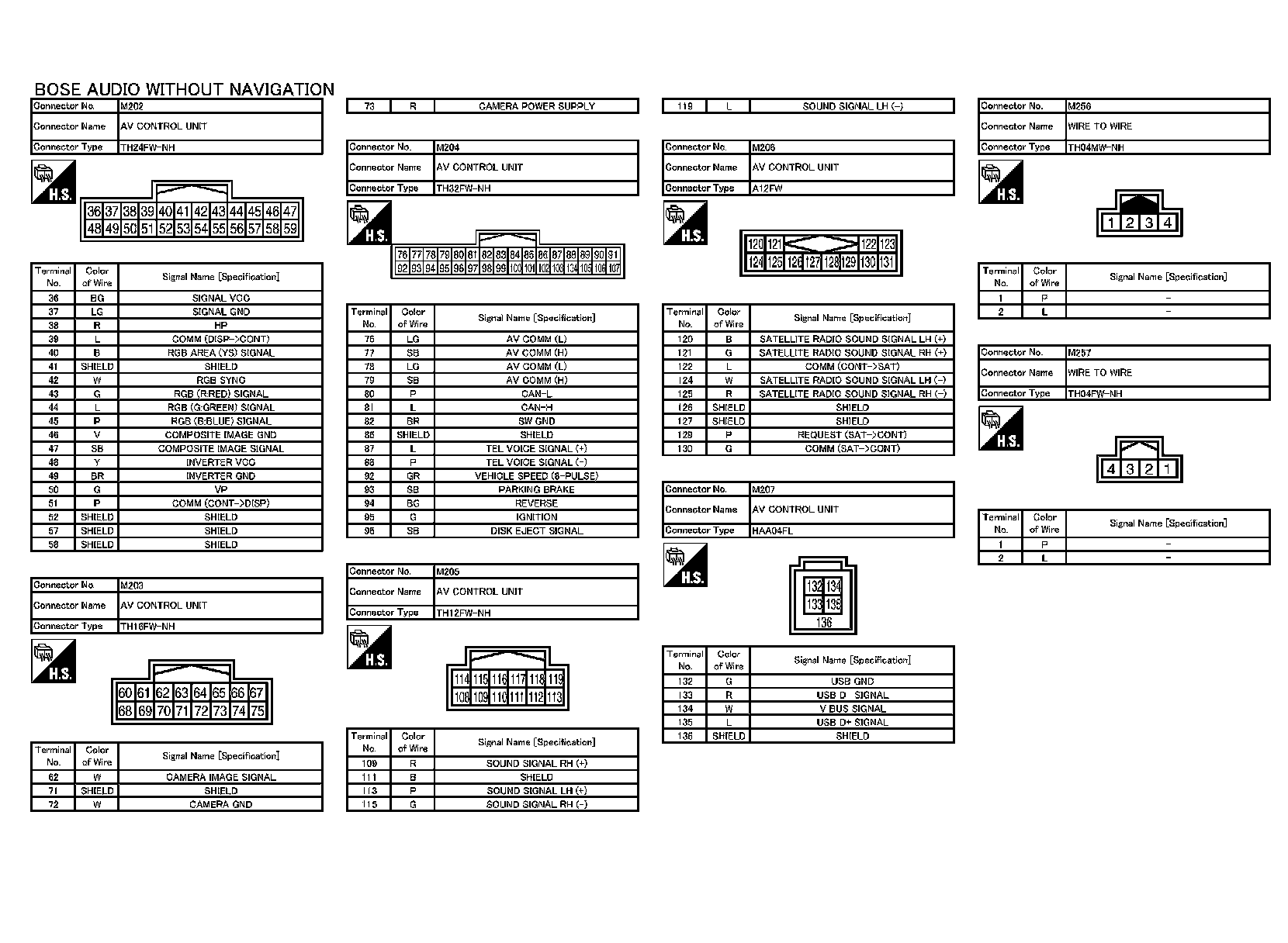

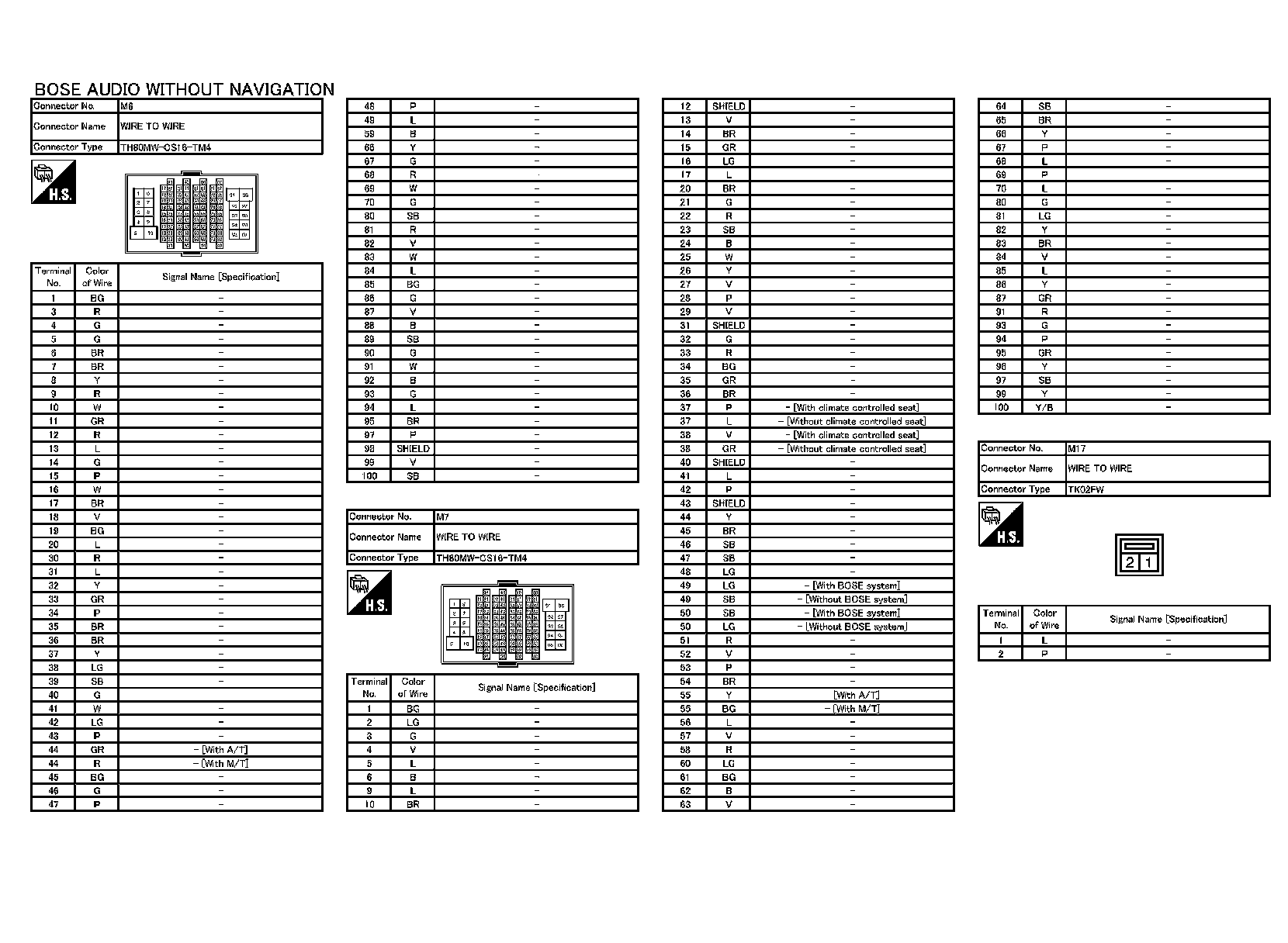

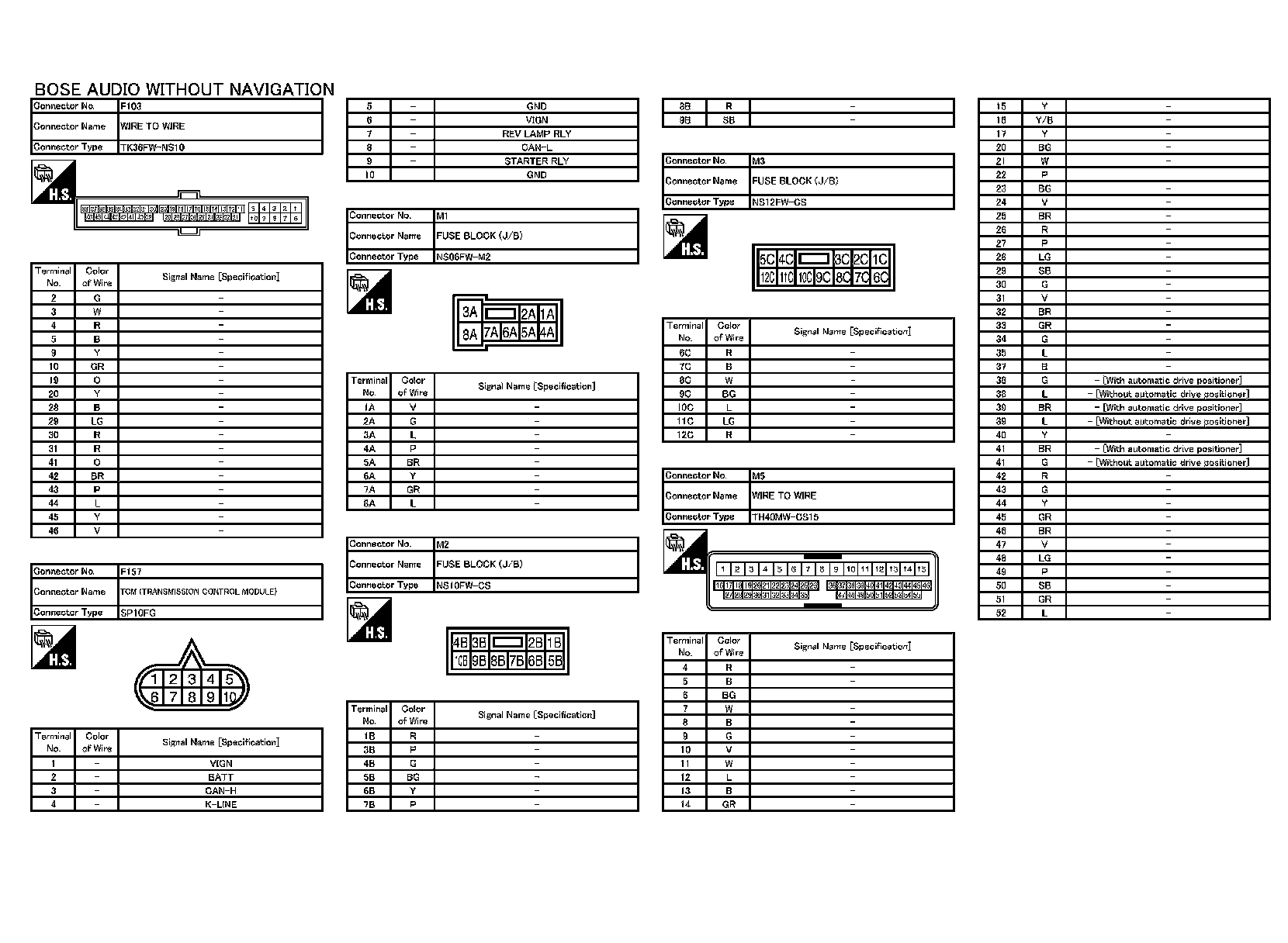

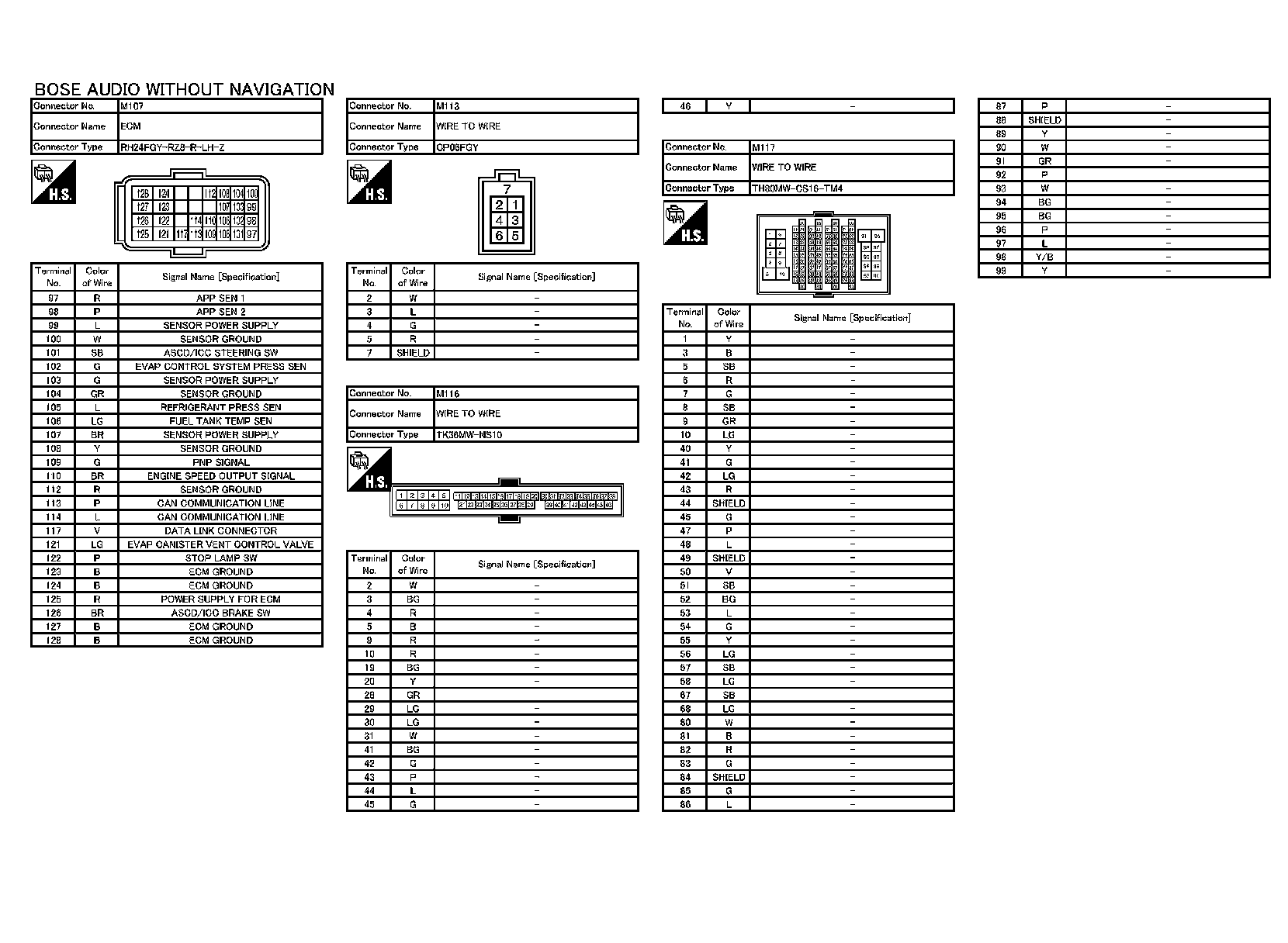

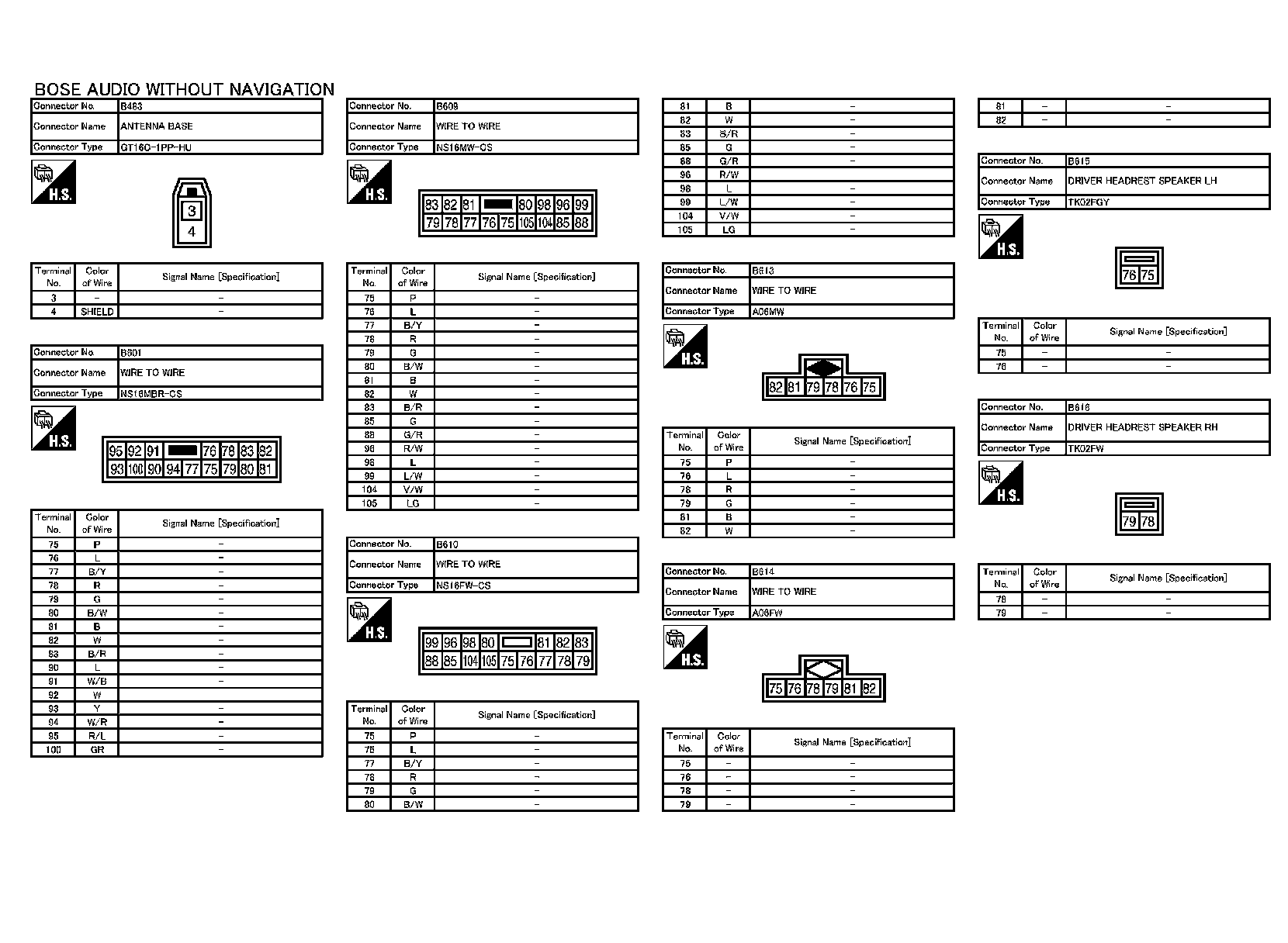

BOSE AUDIO WITHOUT NAVIGATION

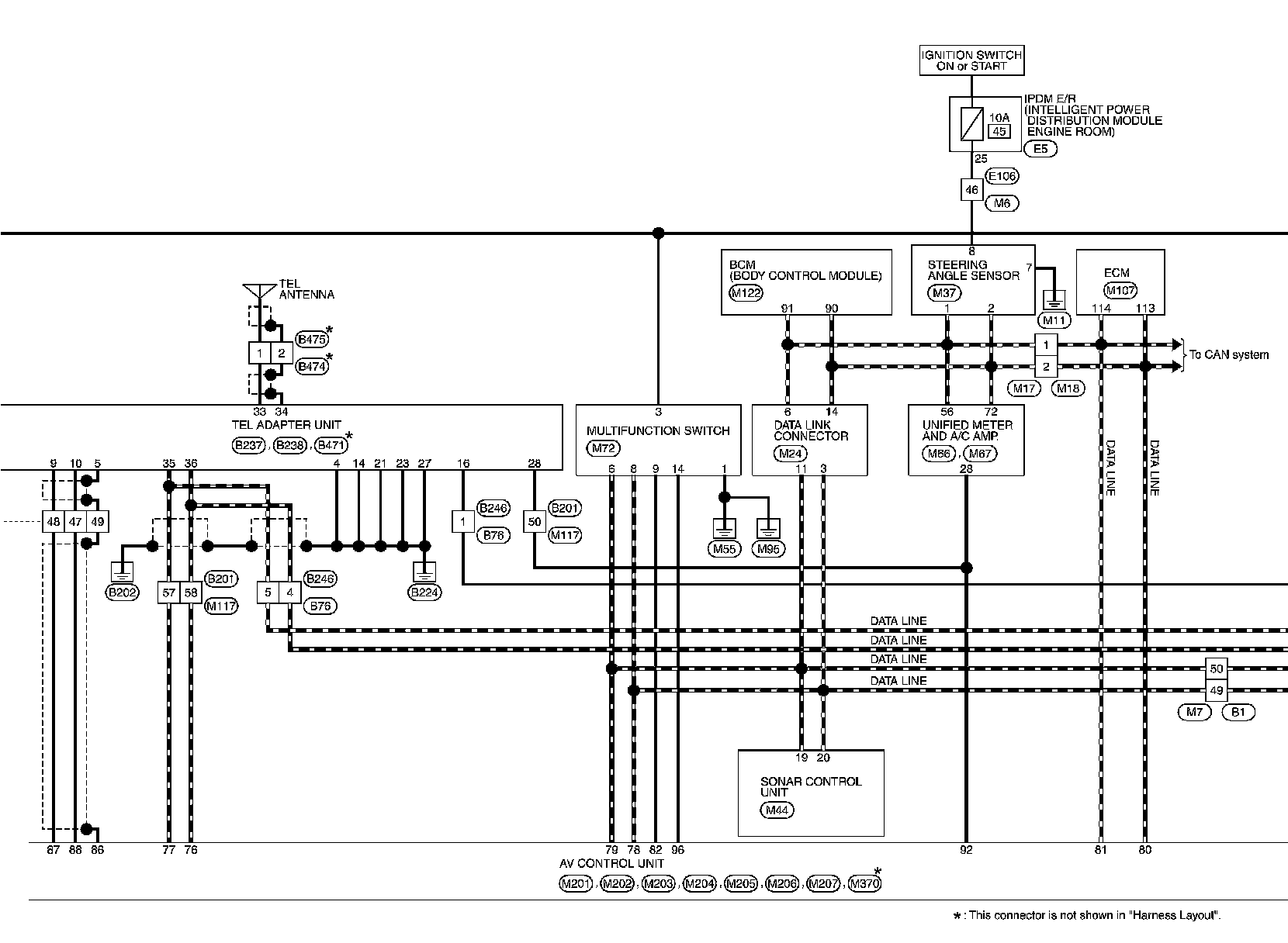

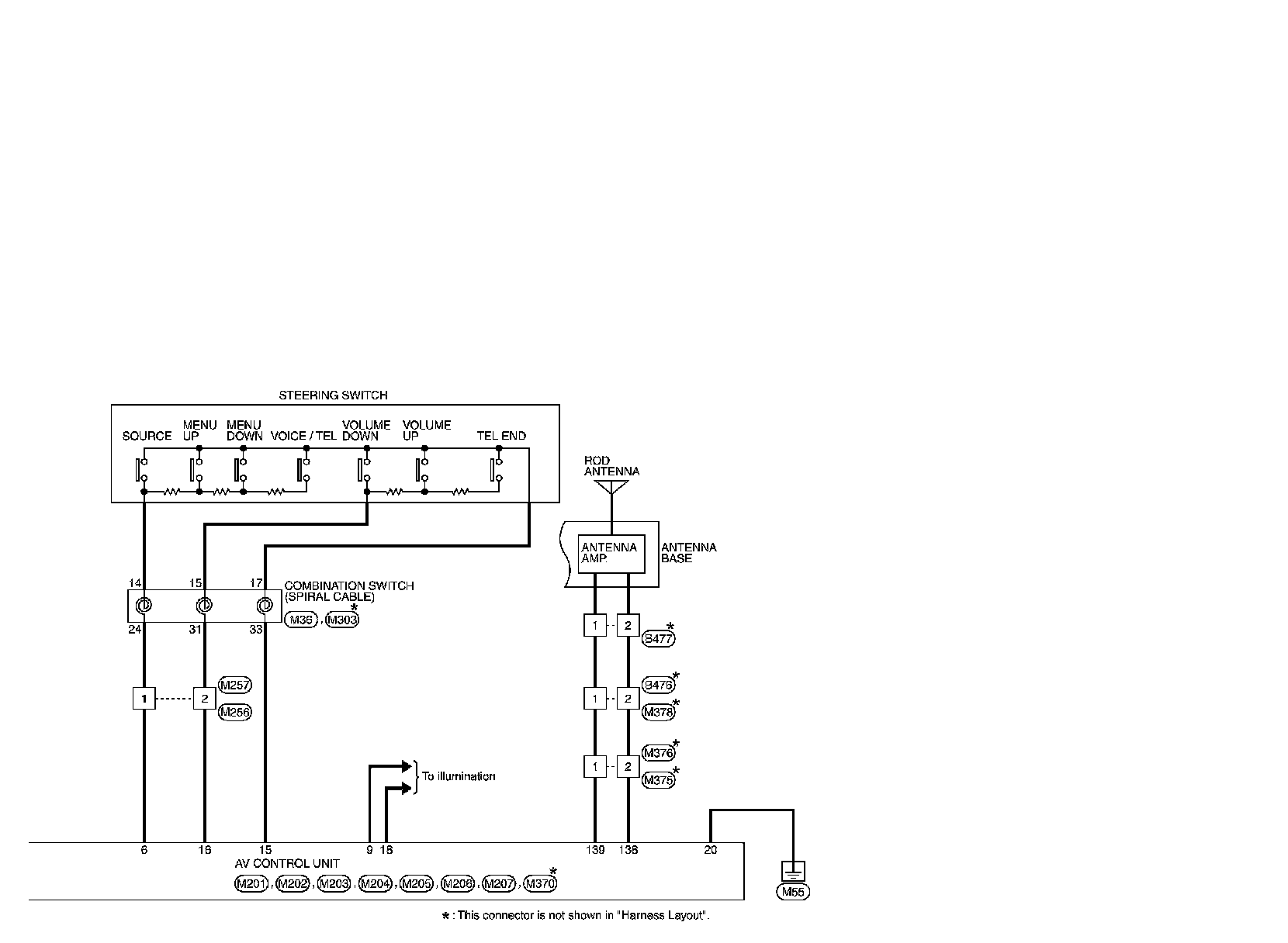

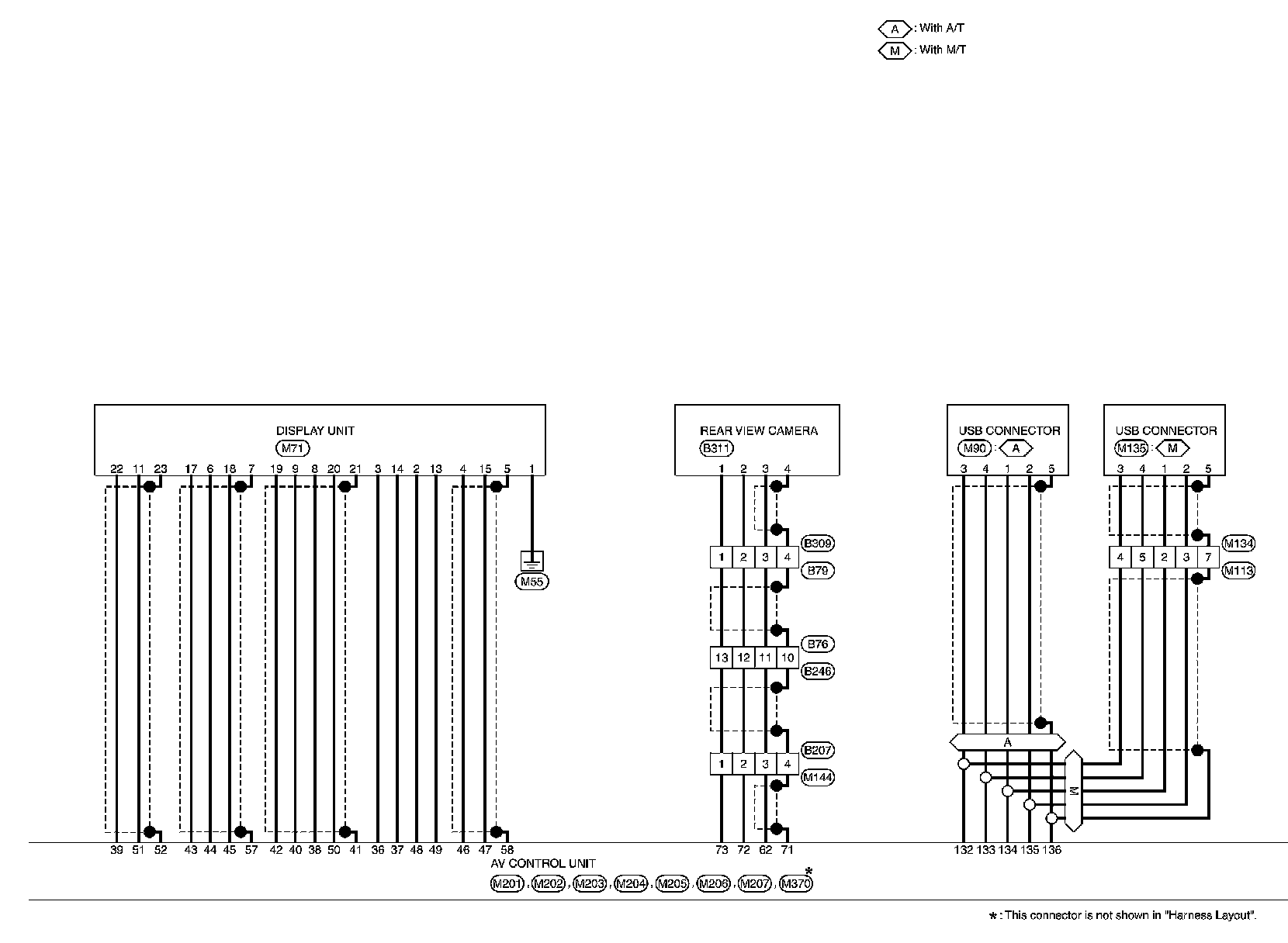

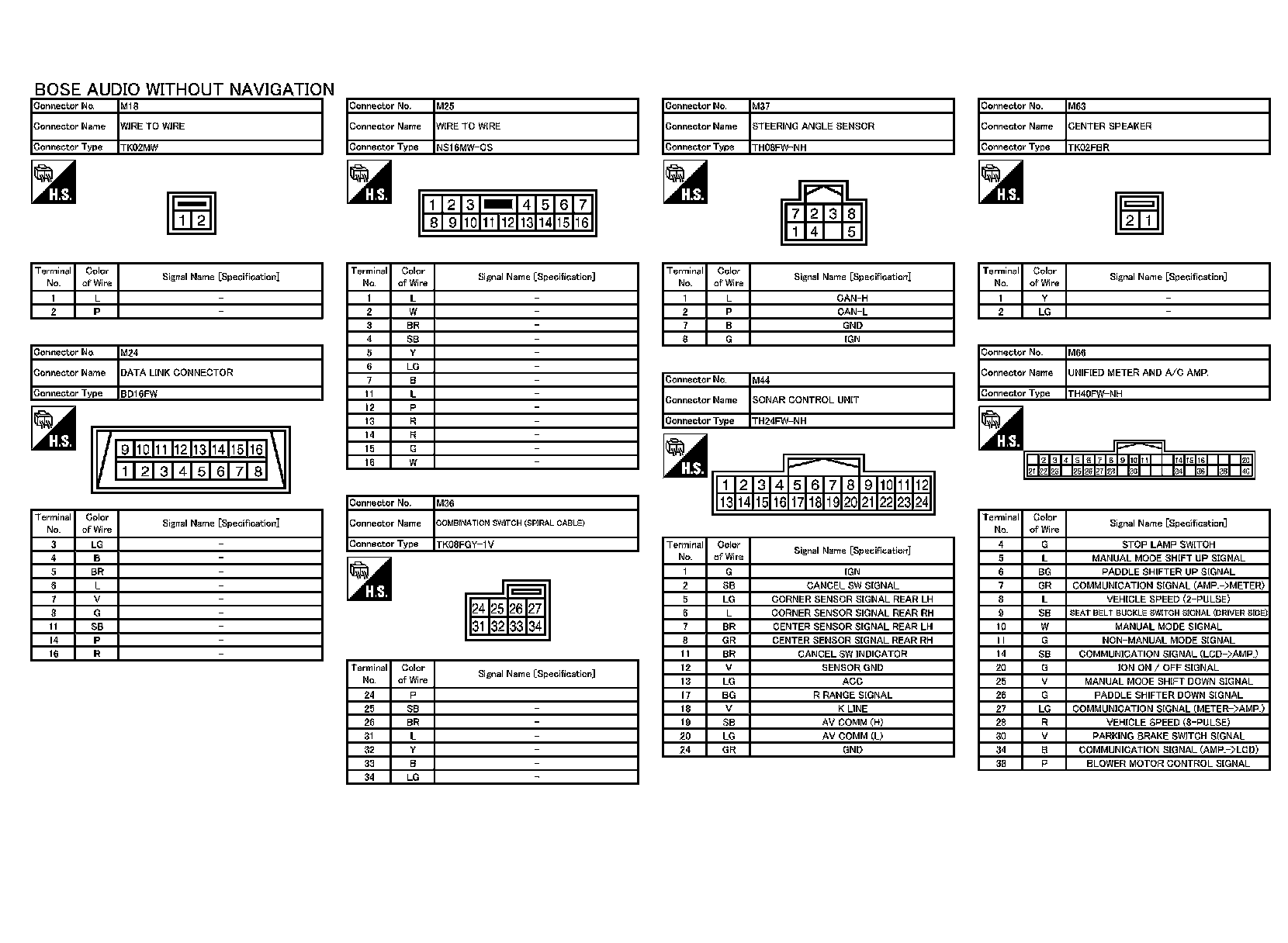

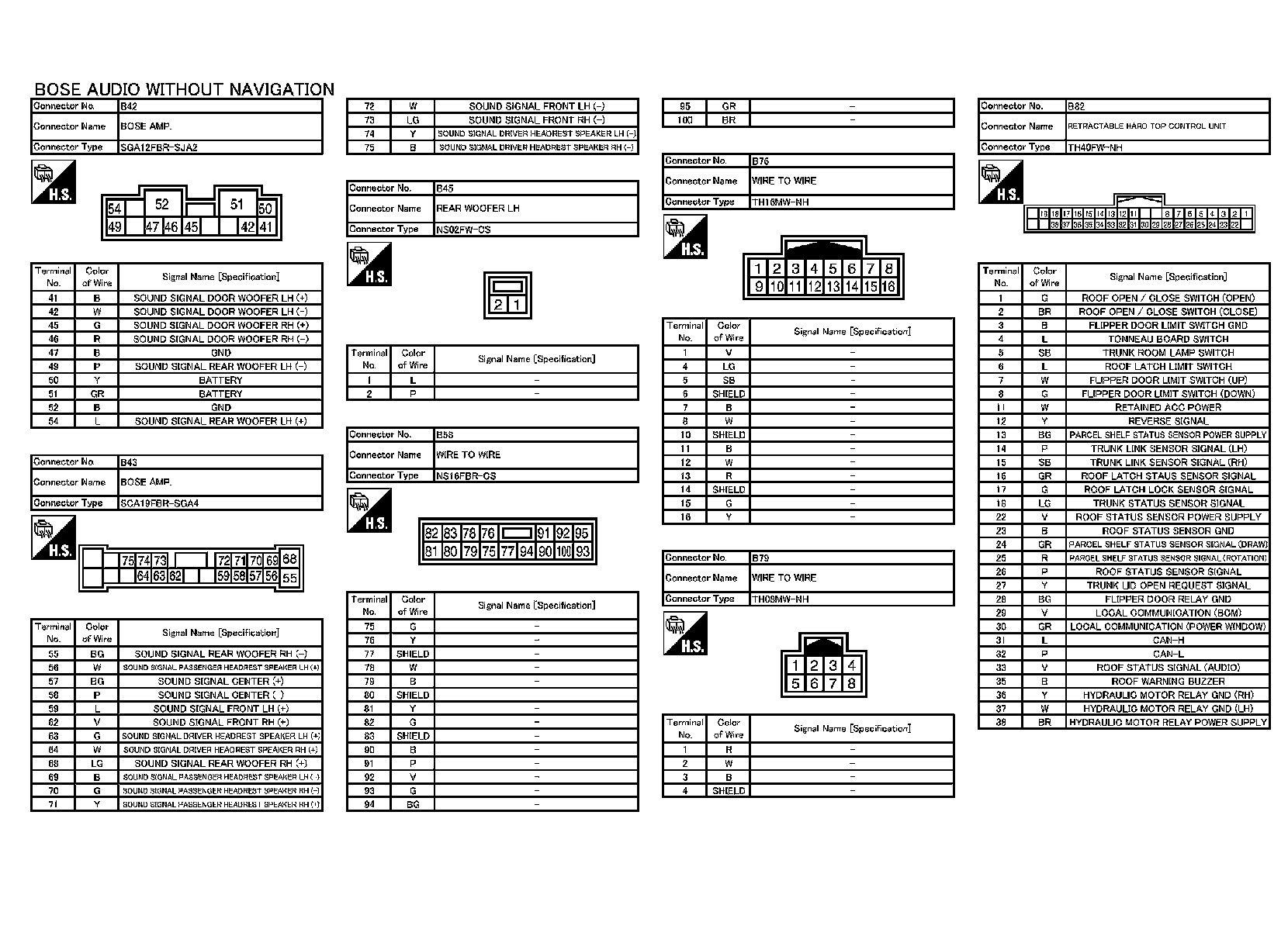

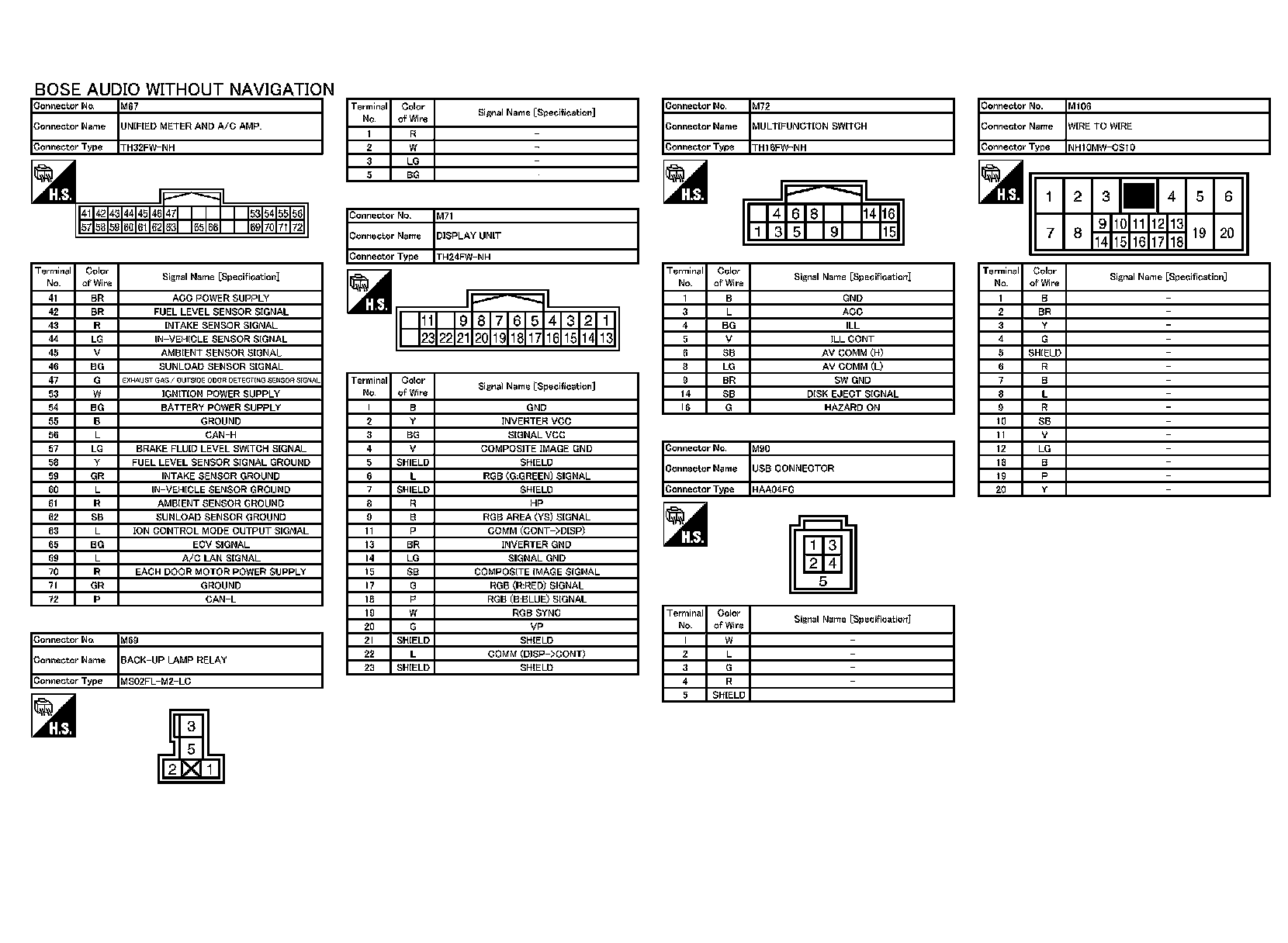

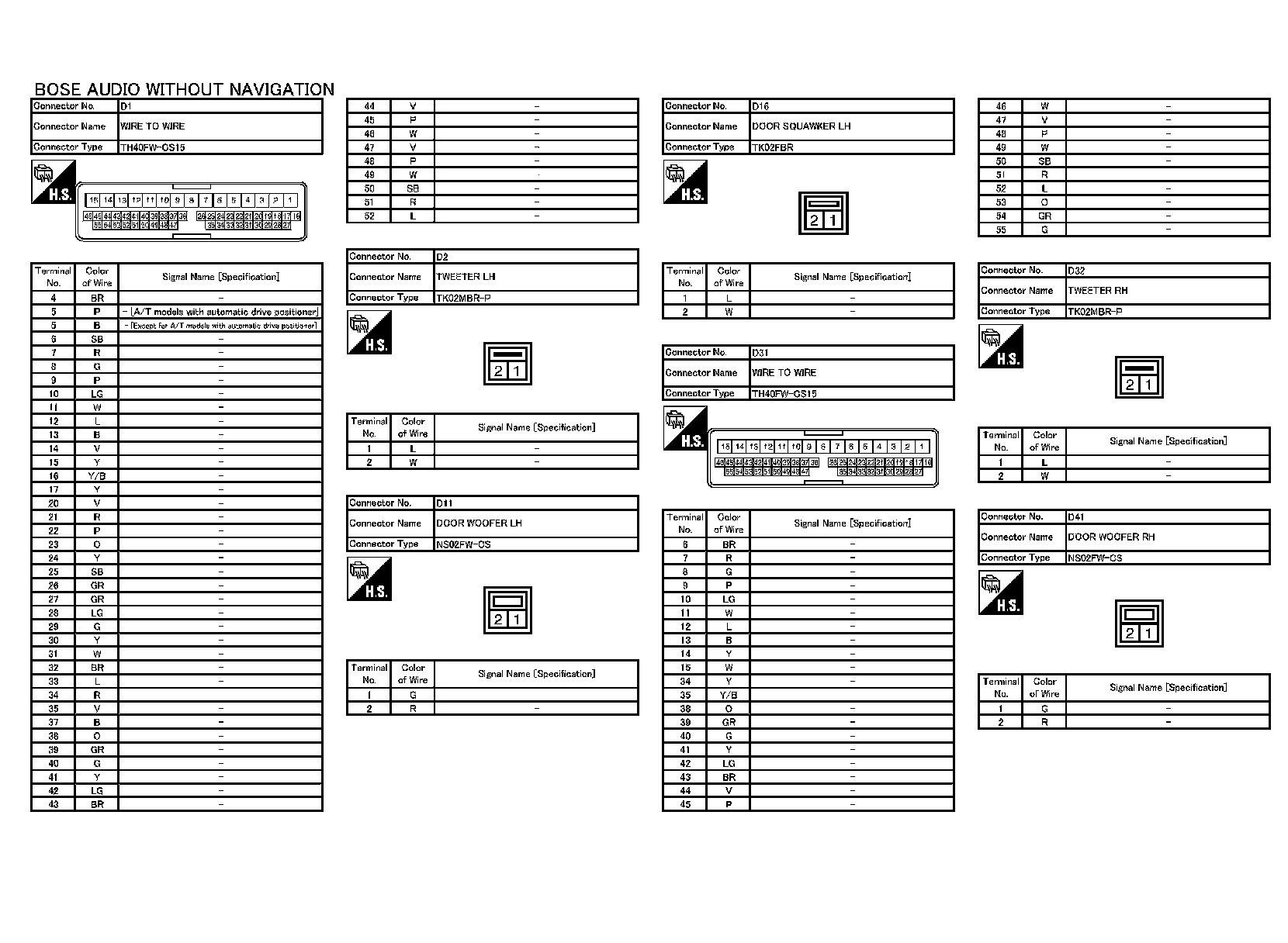

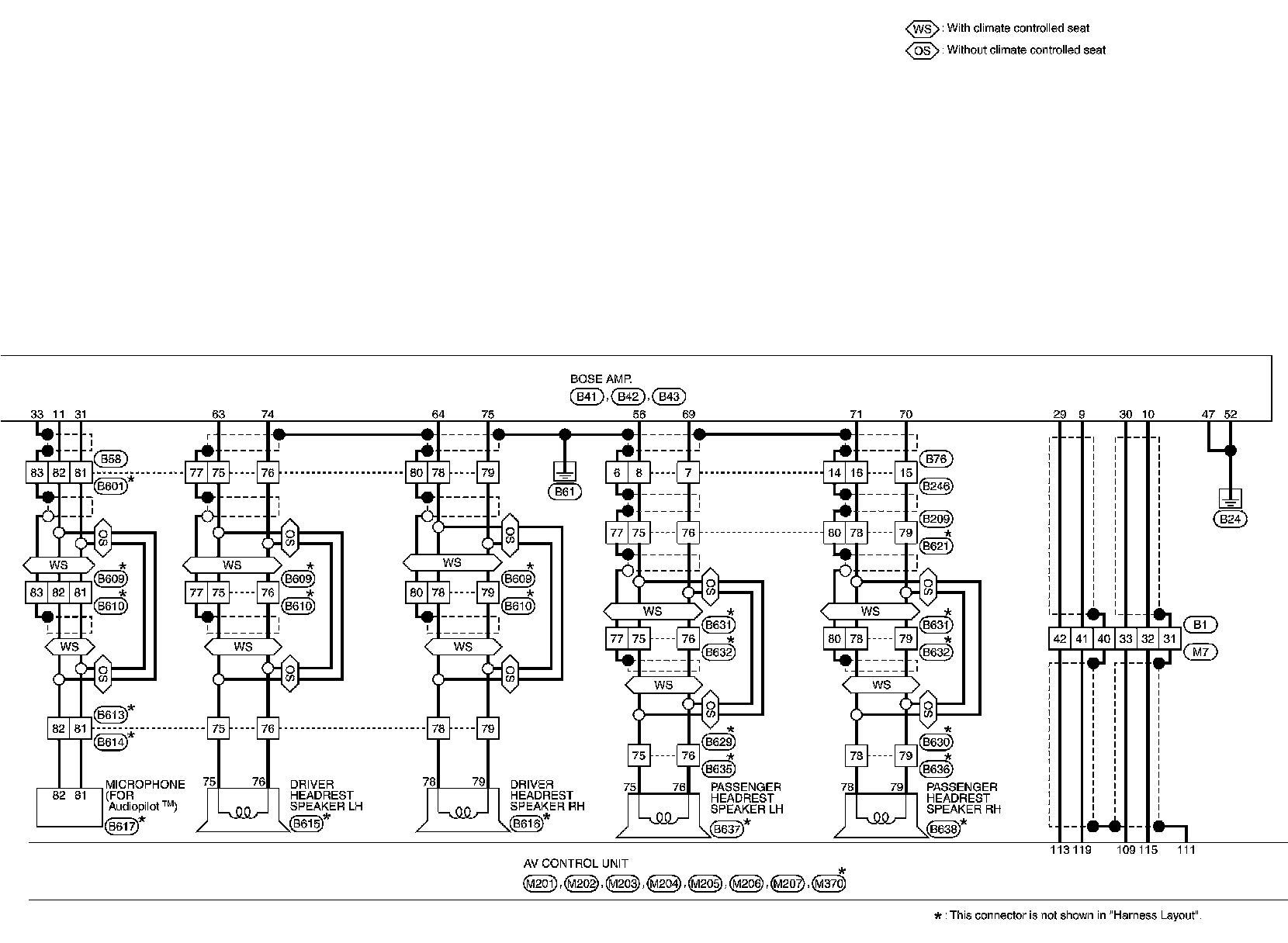

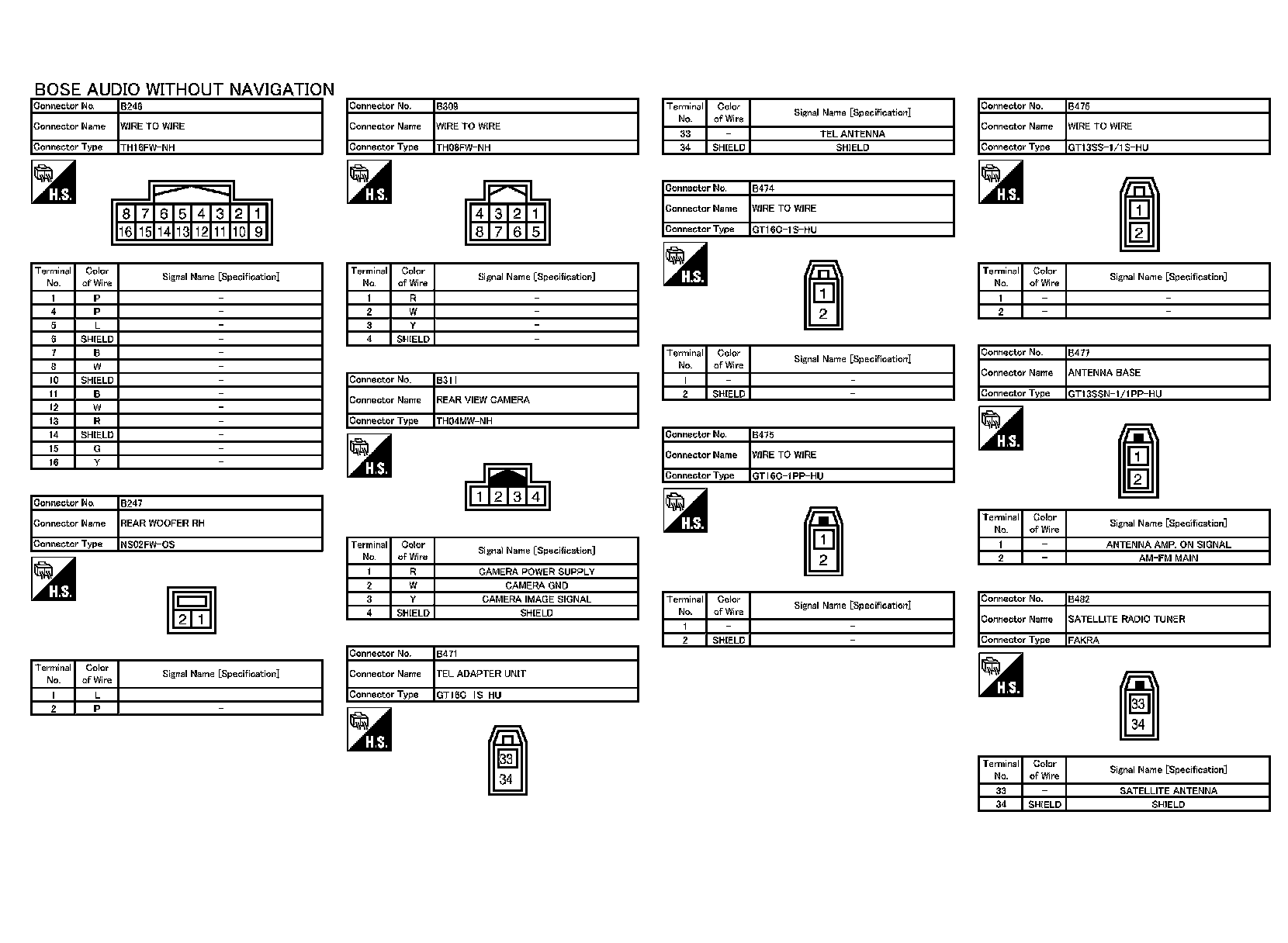

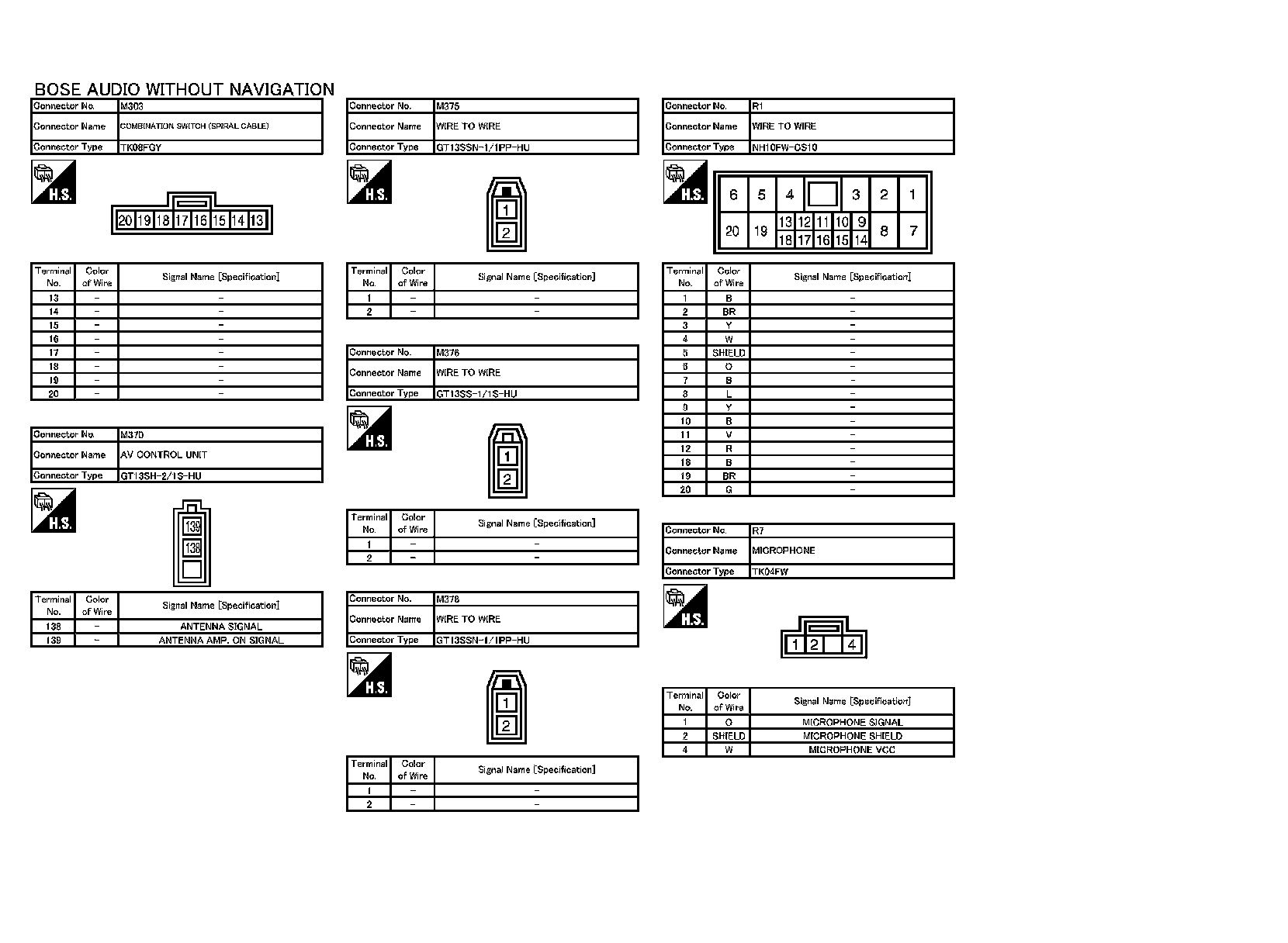

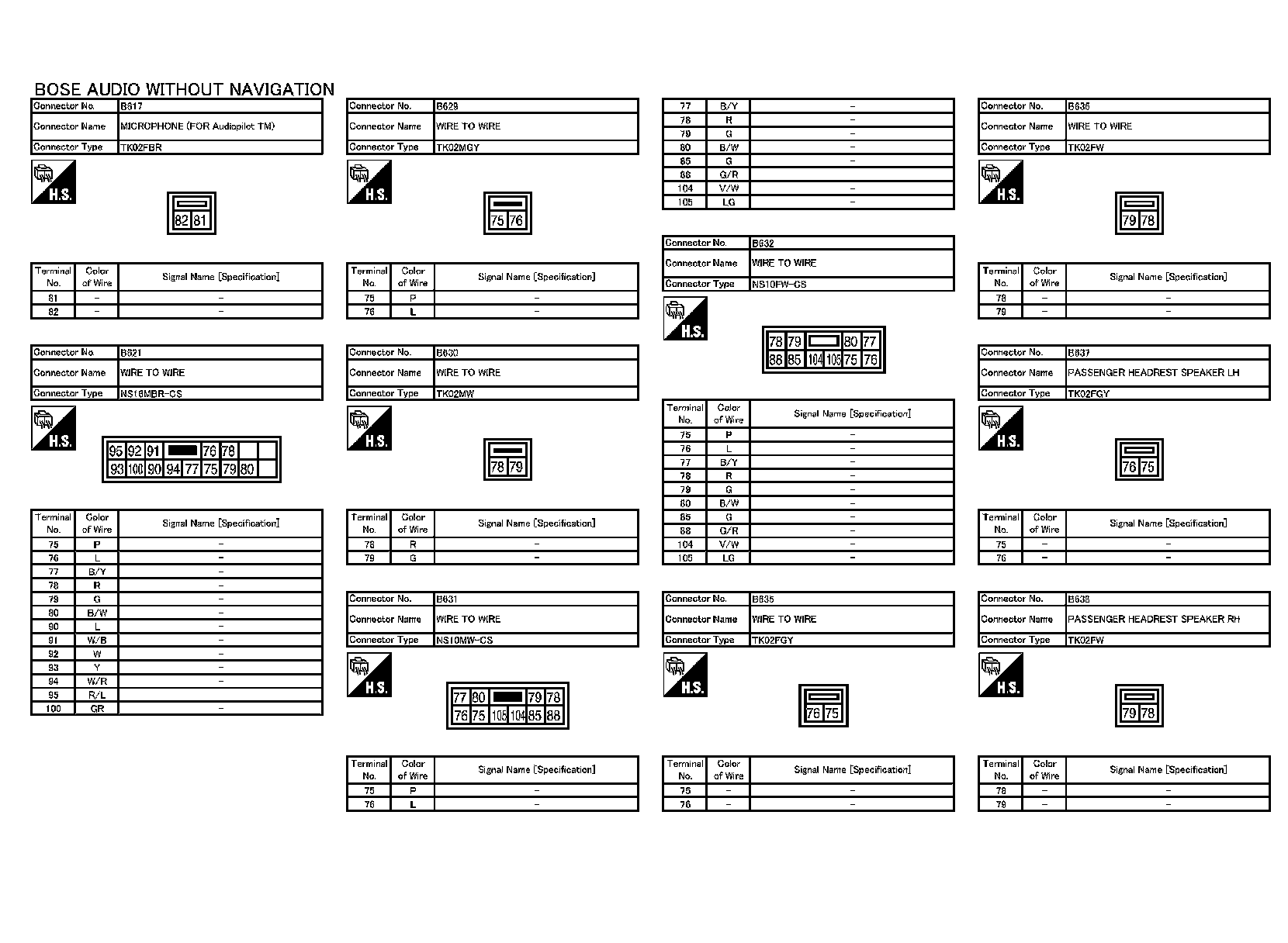

Wiring Diagram


NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
