Garage Door Opener Transmitter
Garage Door Opener Transmitter
INTEGRATED HOMELINK TRANSMITTER SYSTEM

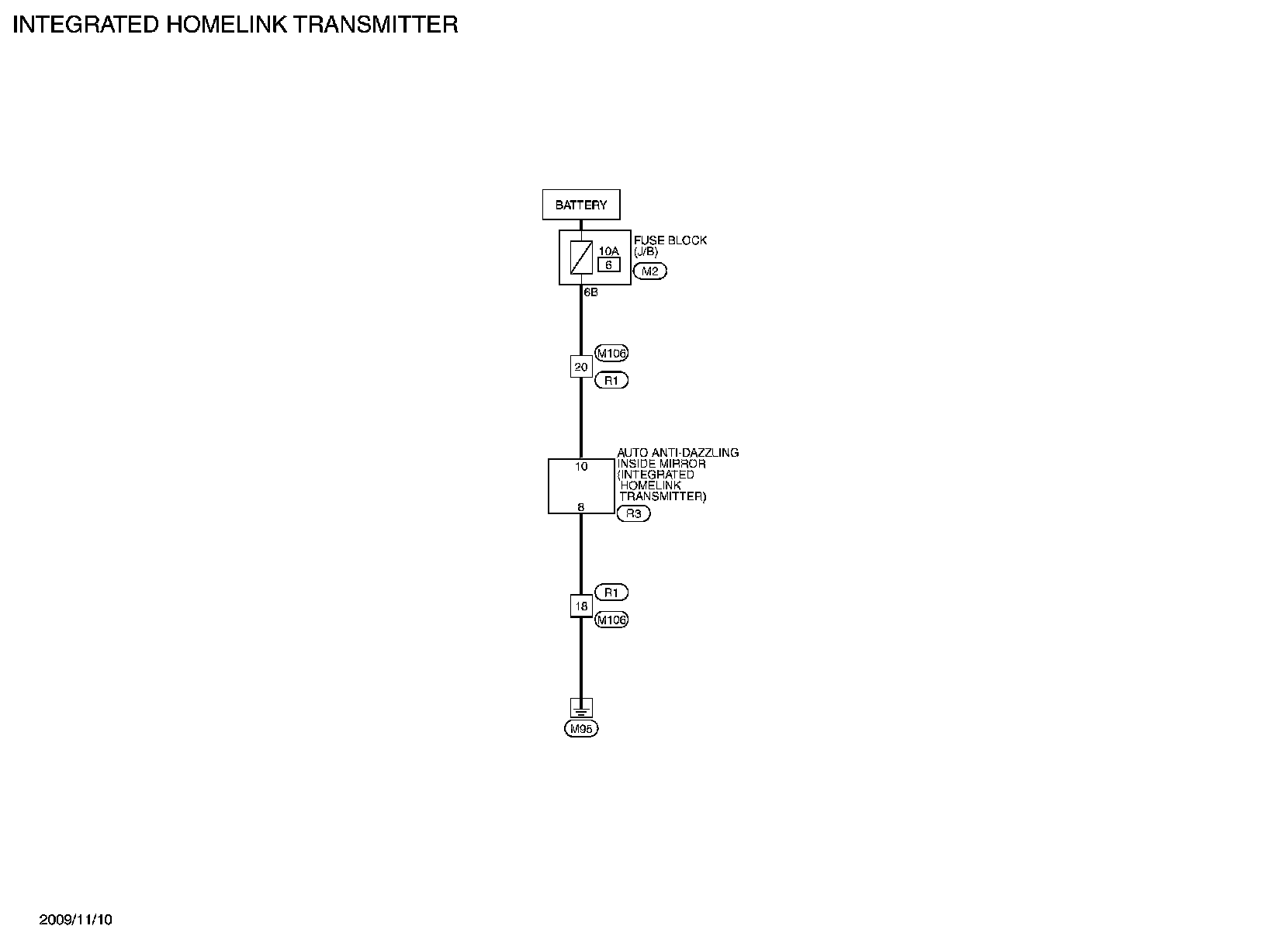

Wiring Diagram - INTEGRATED HOMELINK TRANSMITTER SYSTEM -
