Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

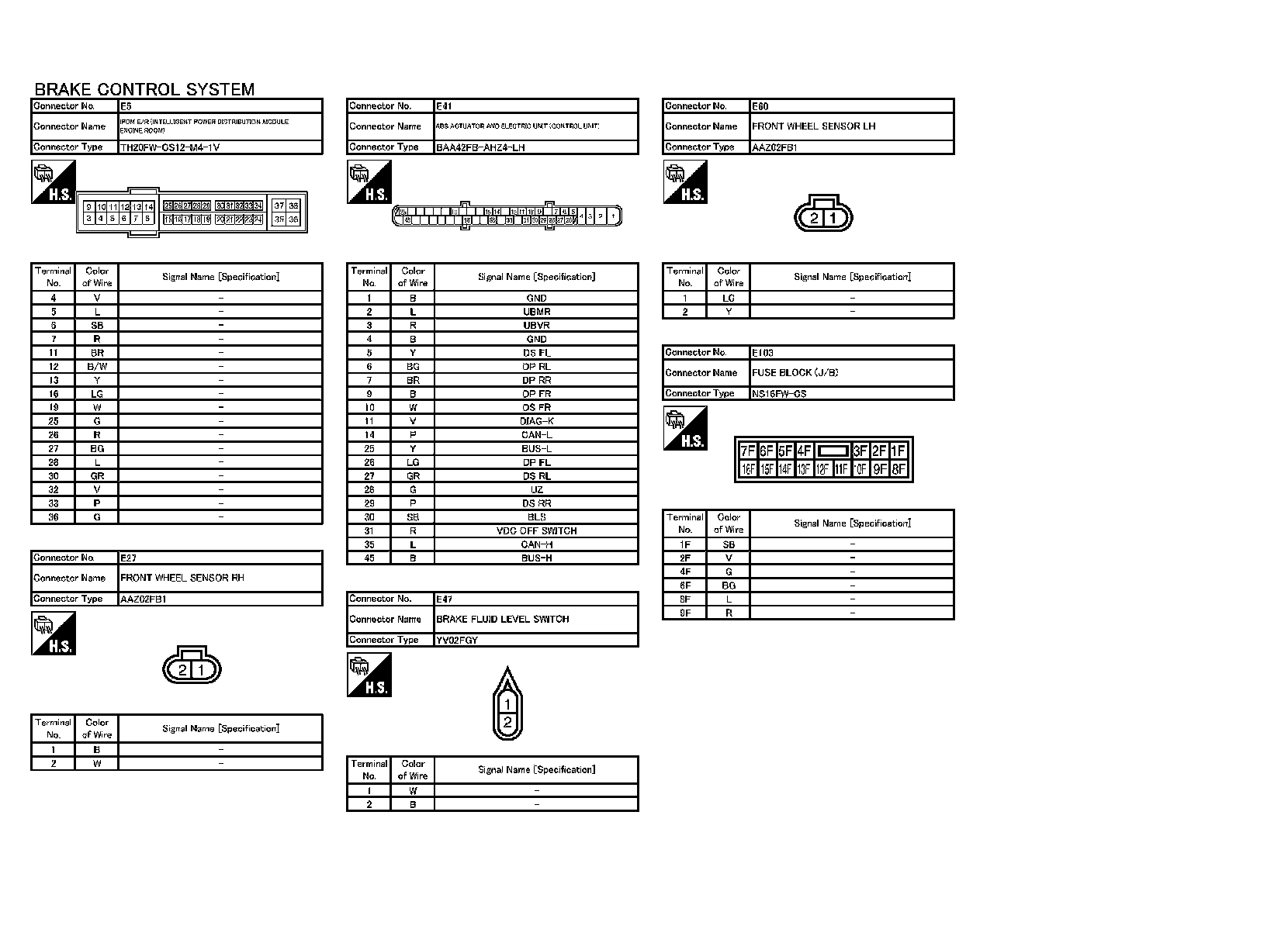

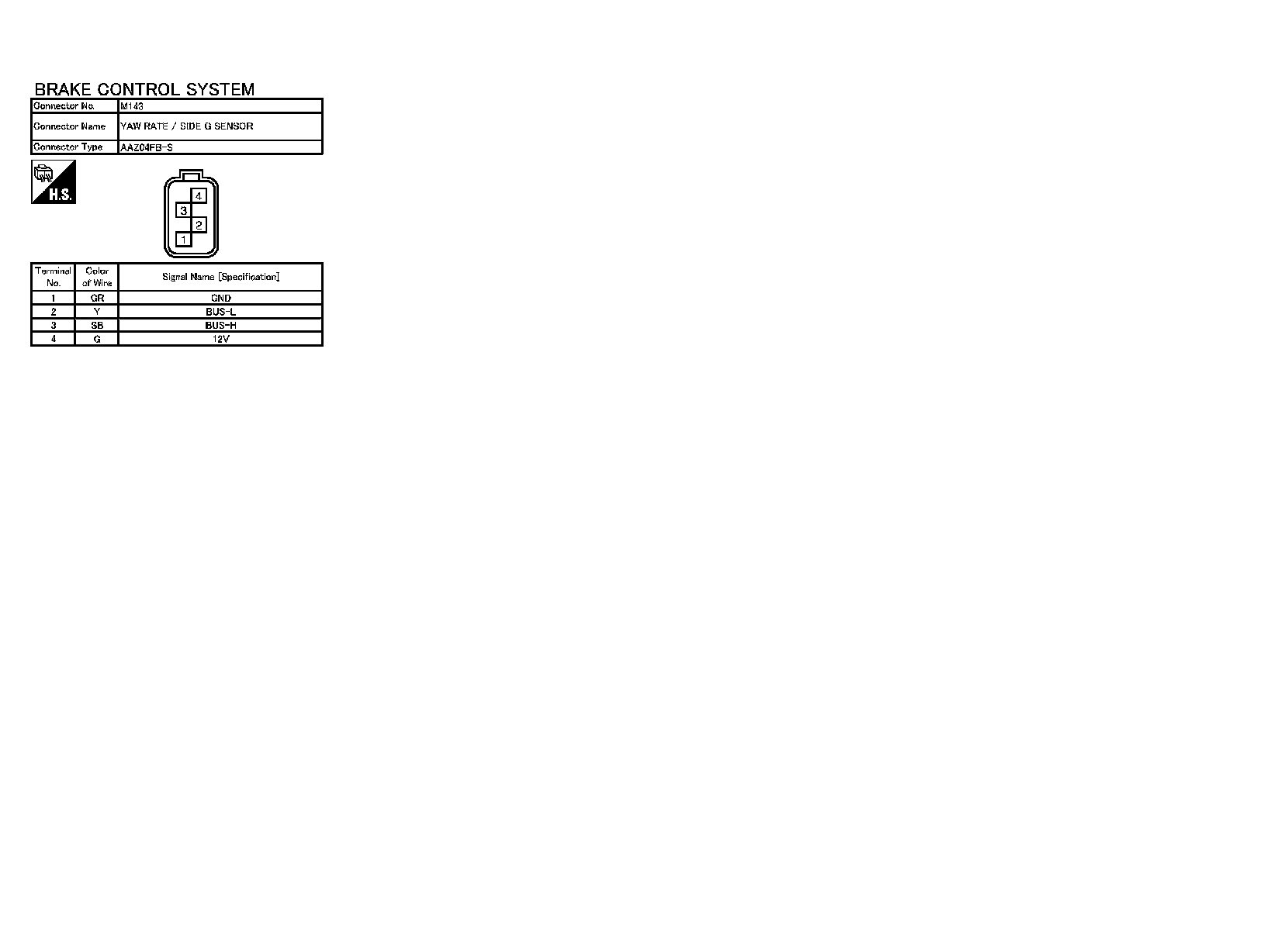

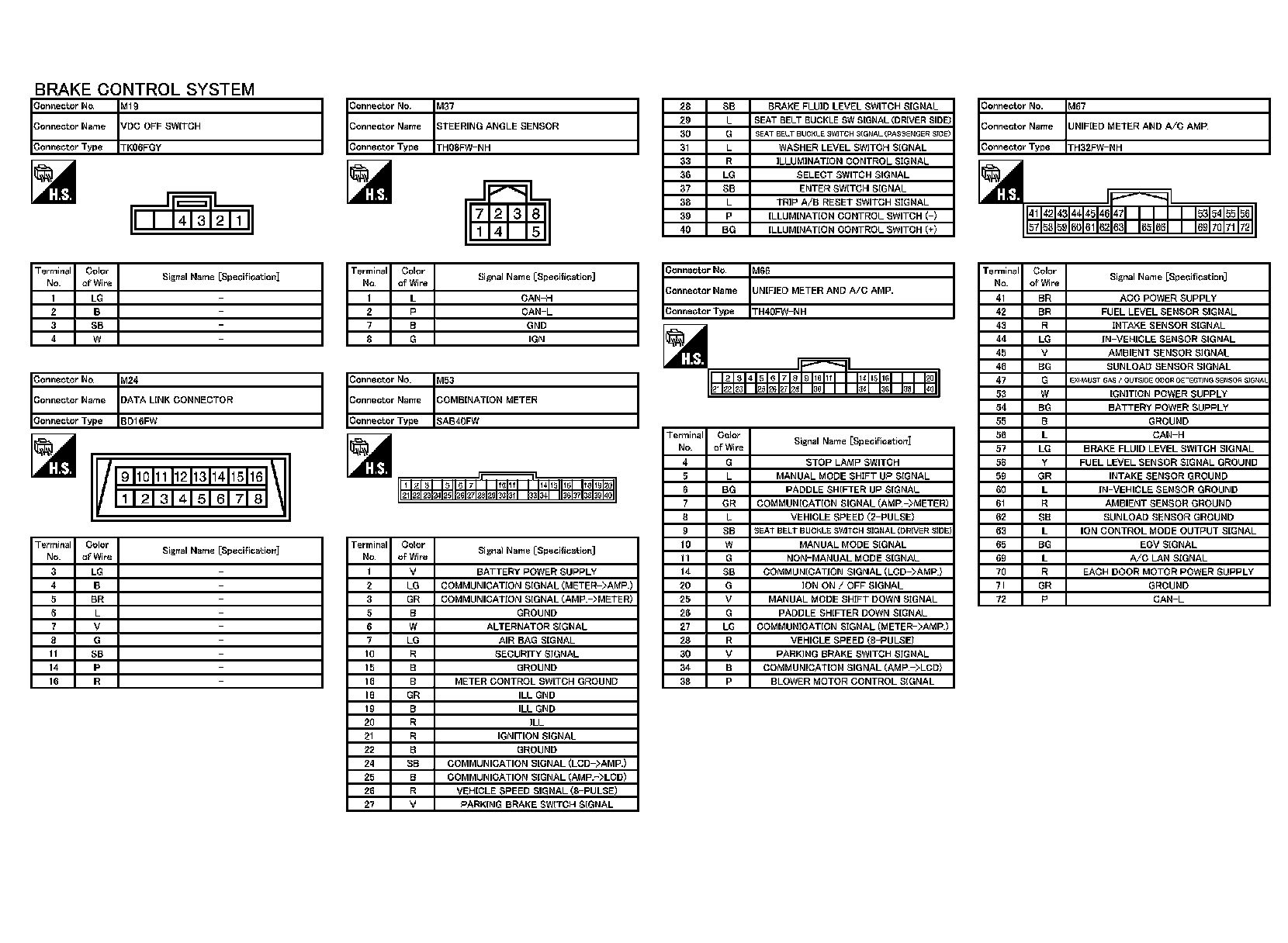

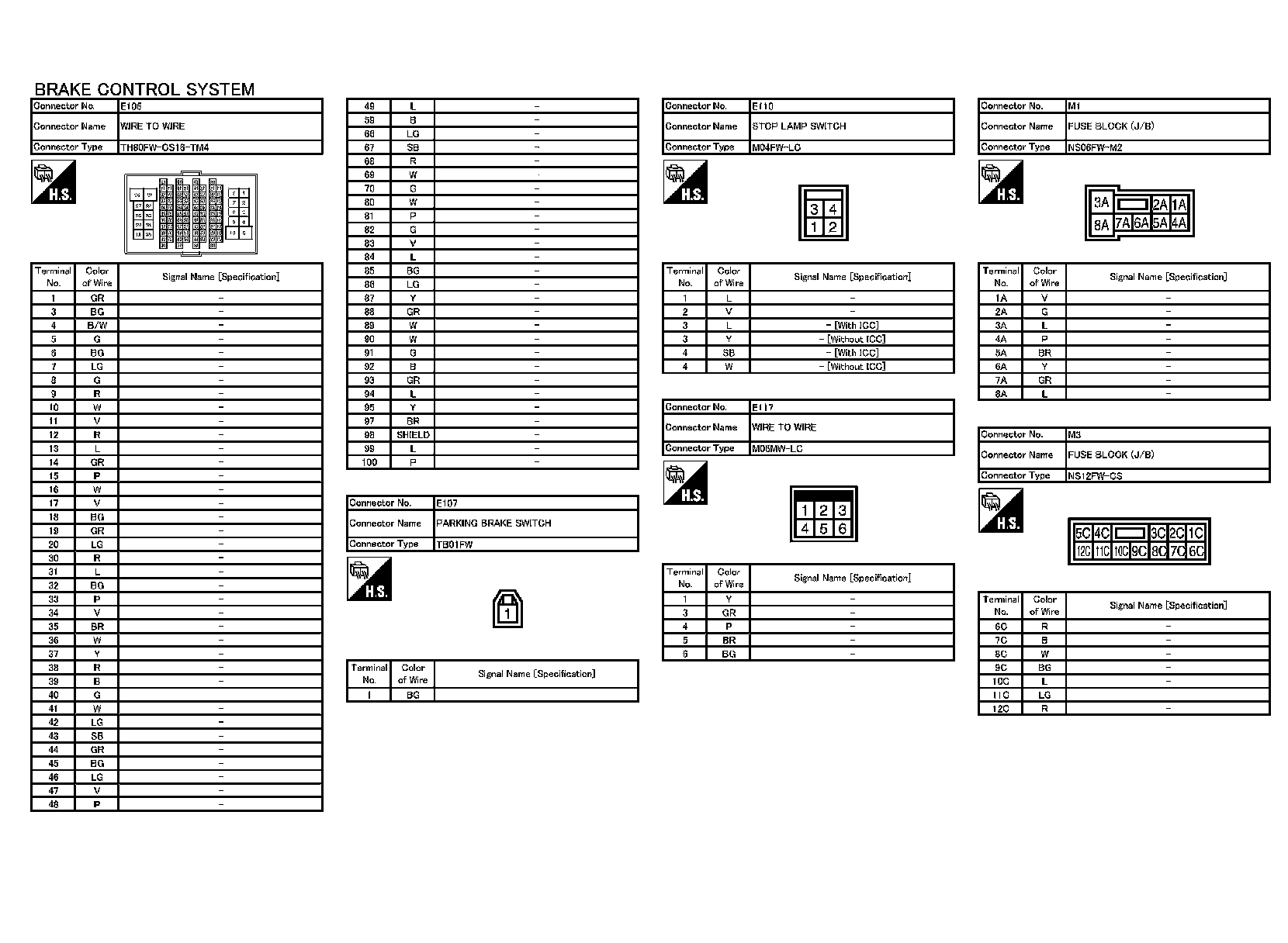

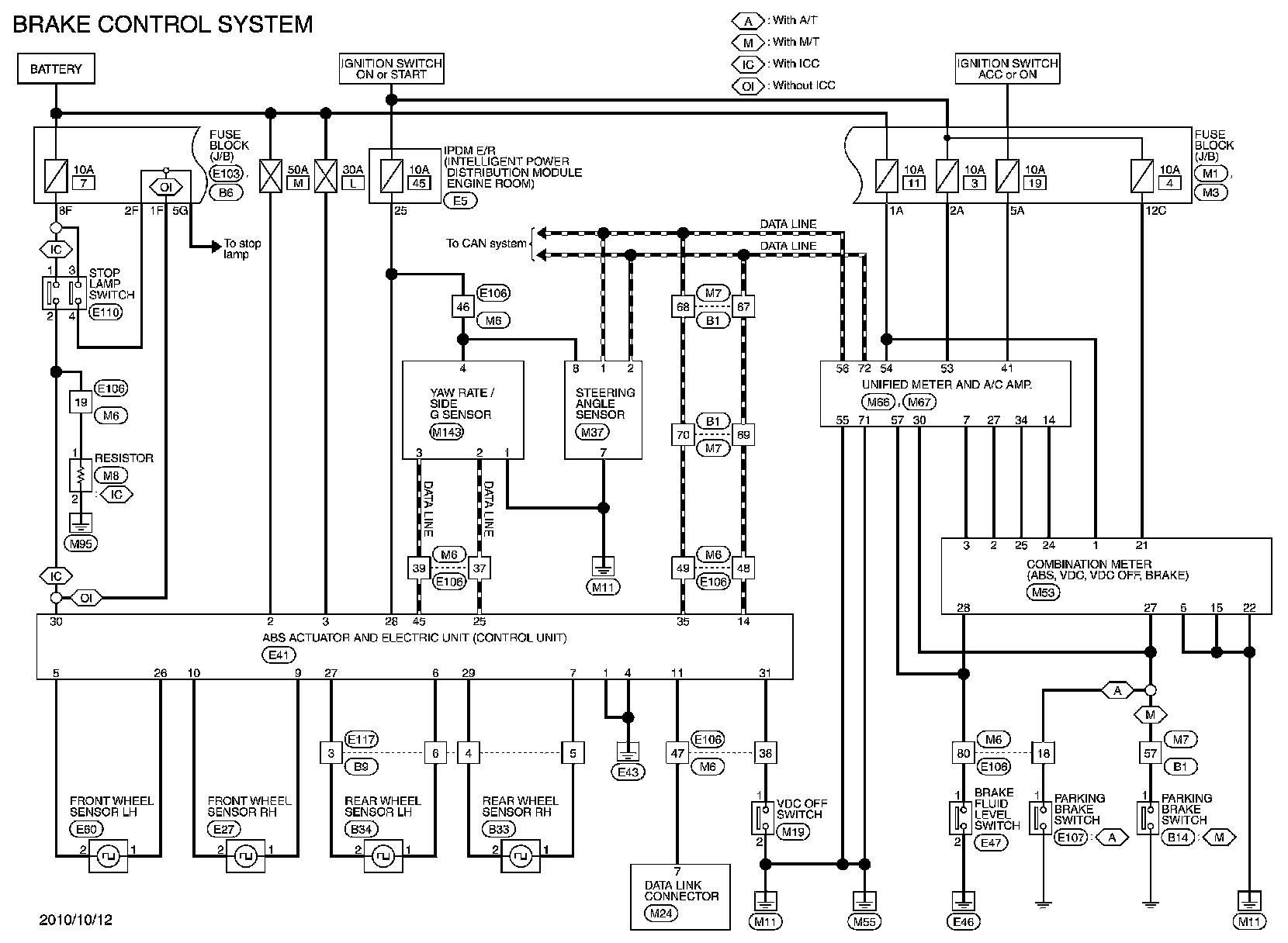

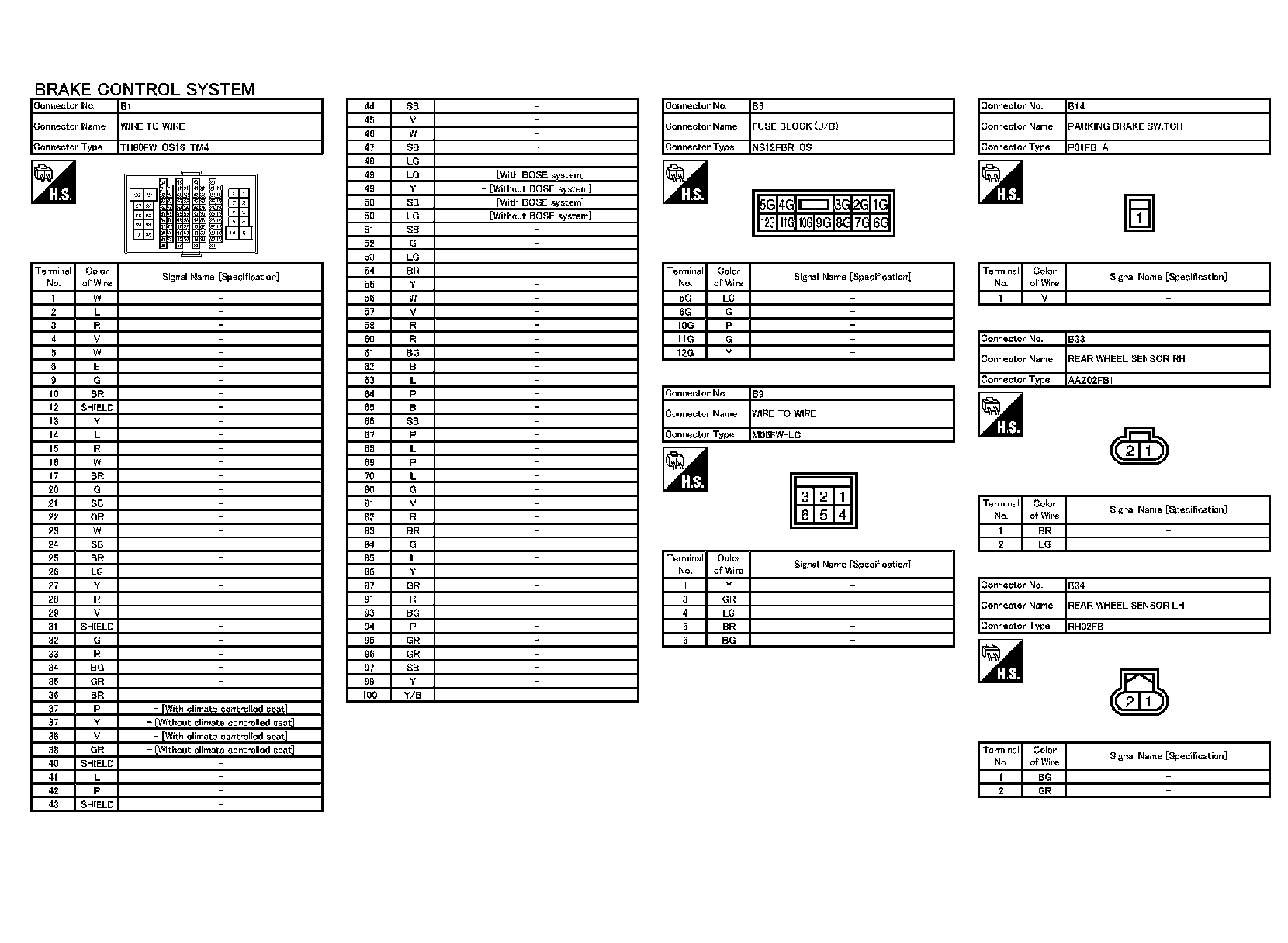

Wiring Diagram - BRAKE CONTROL SYSTEM -
