Brake Switch

ICC BRAKE SWITCH





Description
When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by those two types of input (ON/OFF signal). System Description for the ICC function.




Component Function Check
1.CHECK ICC BRAKE SWITCH FUNCTION
With CONSULT-III
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.

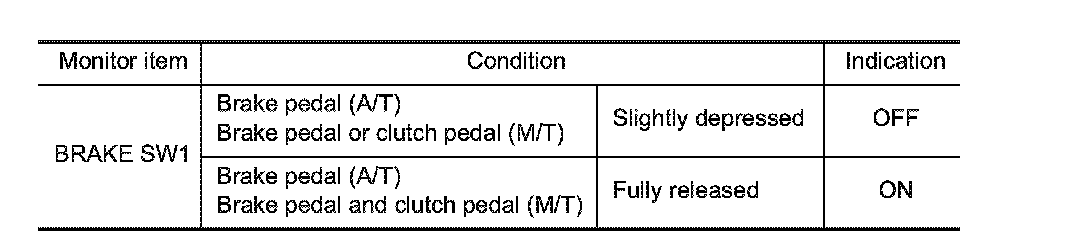

3. Check "BRAKE SW1" indication under the following conditions.





Without CONSULT-III
1. Turn ignition switch ON.

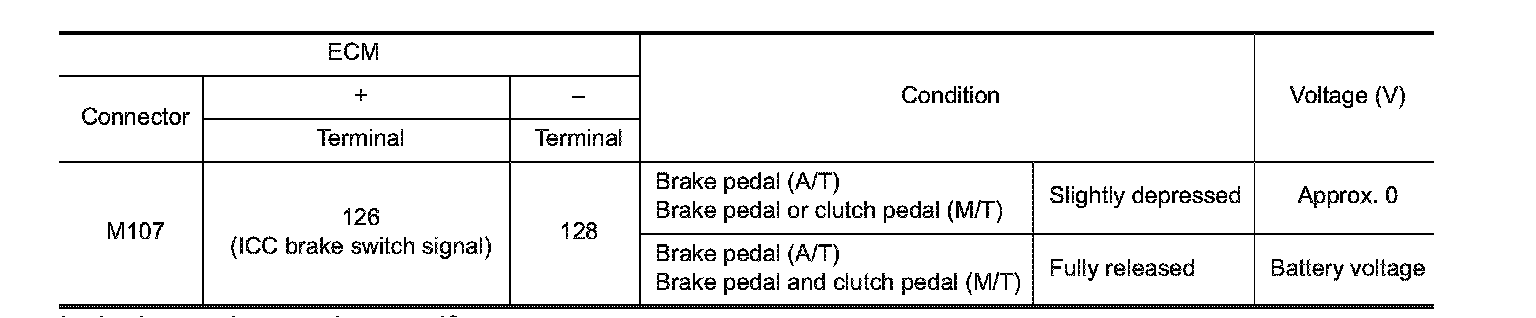

2. Check the voltage between ECM harness connector terminals as per the following.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to SEE Diagnosis Procedure.




Diagnosis Procedure
1.INSPECTION START
Check which type of transmission the vehicle is equipped with.
Which type of transmission?
A/T - GO TO 2.
M/T - GO TO 7.
2.CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Turn ignition switch ON.
4. Check the voltage between ICC brake switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
- Fuse block (J/B) connector E103
- 10A fuse (No. 3)
- Harness for open or short between ICC brake switch and fuse
- Repair open circuit or short to ground in harness or connectors.
4.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.

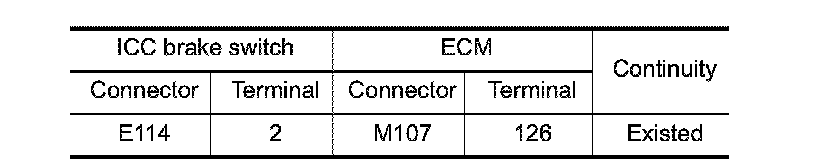

3. Check the continuity between ICC brake switch harness connector and ECM harness connector.





4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES - GO TO 6.
NO - GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E106, M6
- Harness for open or short between ICC brake switch and ECM
- Repair open circuit, short to ground or short to power in harness or connectors.
6.CHECK ICC BRAKE SWITCH
SEE Component Inspection (ICC Brake Switch).
Is the inspection result normal?
YES - GO TO 15.
NO - Replace ICC brake switch. ICC.
7.CHECK ICC BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Turn ignition switch ON.

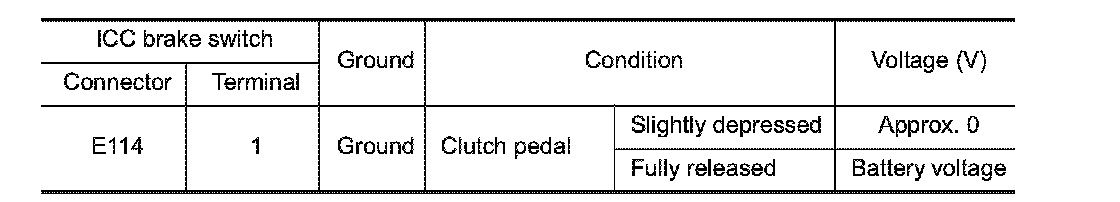

4. Check the voltage between ICC brake switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 12.
NO - GO TO 8.
8.CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.
3. Turn ignition switch ON.

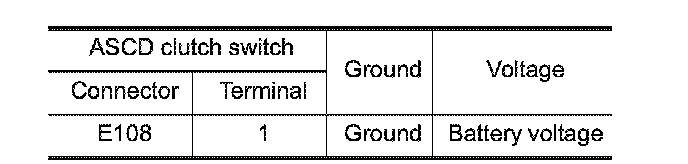

4. Check the voltage between ASCD clutch switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 10.
NO - GO TO 9.
9.DETECT MALFUNCTIONING PART
Check the following.
- Fuse block (J/B) connector E103
- 10 A fuse (No. 3)
- Harness for open or short between ASCD clutch switch and fuse
- Repair open circuit or short to ground in harness or connectors.
10.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.

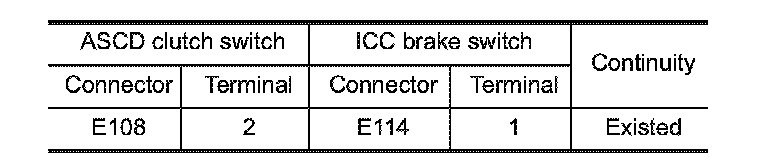

2. Check the continuity between ASCD clutch switch harness connector and ICC brake switch harness connector.





3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES - GO TO 11.
NO - Repair open circuit, short to ground or short to power in harness or connectors.
11.CHECK ASCD CLUTCH SWITCH
SEE Component Inspection (ASCD Clutch Switch).
Is the inspection result normal?
YES - GO TO 15.
NO - Replace ASCD clutch switch. ICC.
12.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.

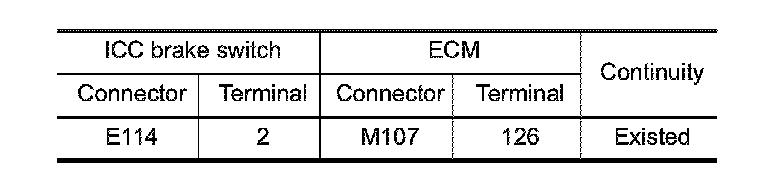

3. Check the continuity between ICC brake switch harness connector and ECM harness connector.





4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES - GO TO 14.
NO - GO TO 13.
13.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E106, M6
- Harness for open or short between ICC brake switch and ECM
- Repair open circuit, short to ground or short to power in harness or connectors.
14.CHECK ICC BRAKE SWITCH
SEE Component Inspection (ICC Brake Switch).
Is the inspection result normal?
YES - GO TO 15.
NO - Replace ICC brake switch. ICC.
15.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection (ICC Brake Switch)
1.CHECK ICC BRAKE SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.

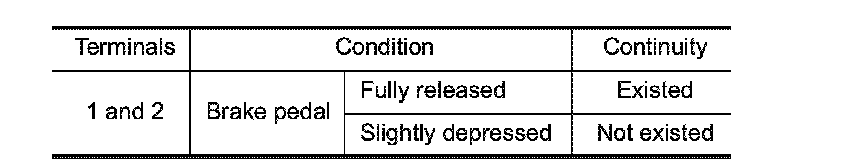

3. Check the continuity between ICC brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ICC BRAKE SWITCH-II
1. Adjust ICC brake switch installation. Inspection and Adjustment.

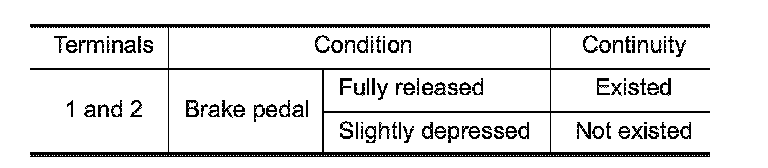

2. Check the continuity between ICC brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ICC brake switch. ICC.




Component Inspection (ASCD Clutch Switch)
1.CHECK ASCD CLUTCH SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.

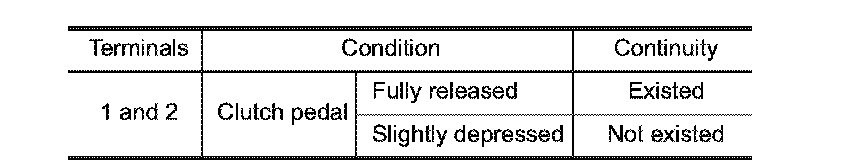

3. Check the continuity between ASCD clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ASCD CLUTCH SWITCH-II
1. Adjust ASCD clutch switch installation. Inspection and Adjustment.

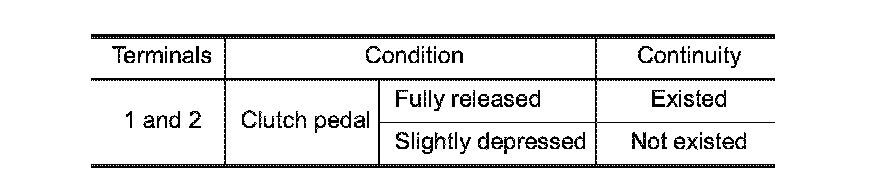

2. Check the continuity between ASCD clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ASCD clutch switch. Exploded View.
