Exploded View VDC/TCS/ABS





WHEEL SENSOR

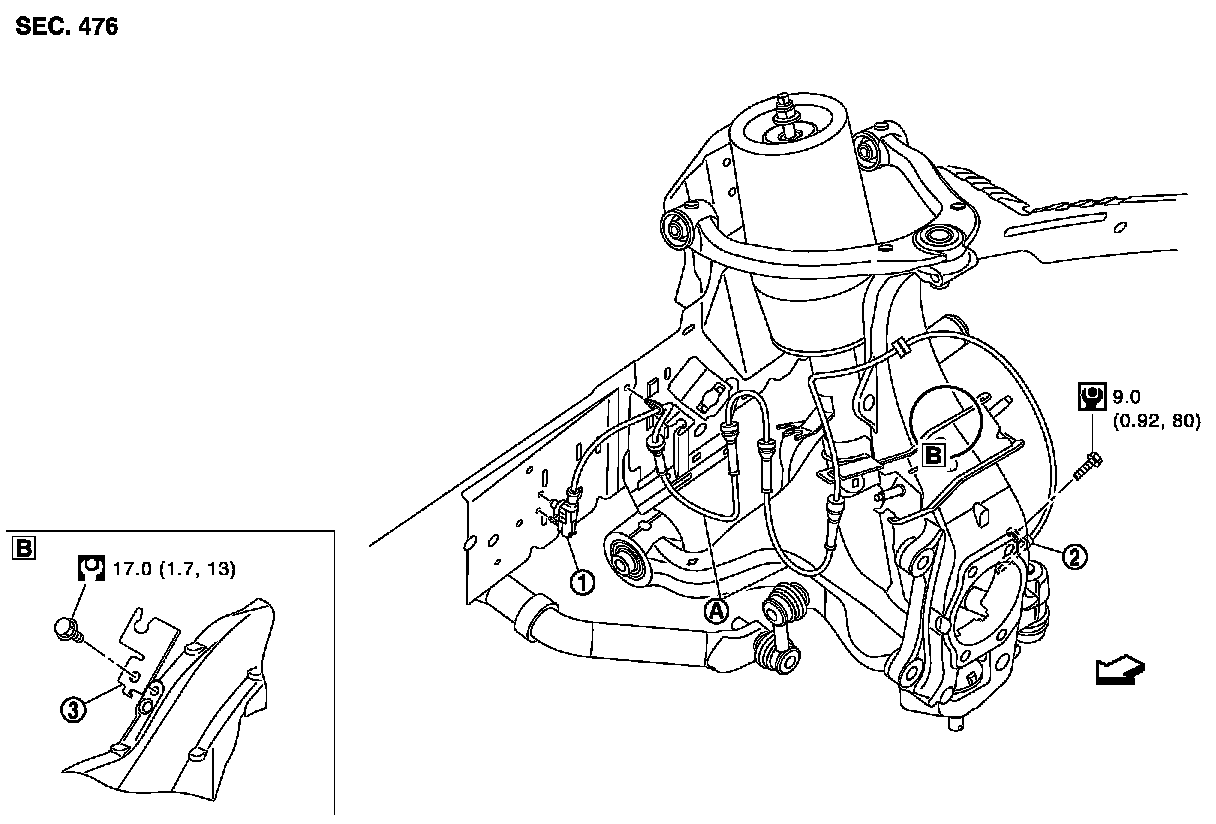

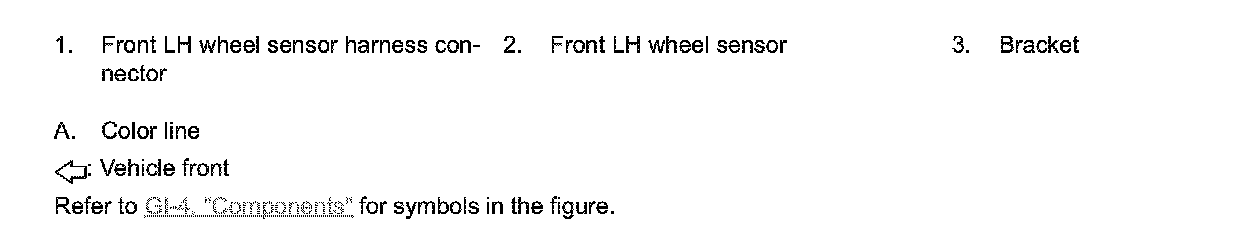

FRONT WHEEL SENSOR : Exploded View












NOTE:
The above figure (front side) shows left side. Right side is the mirror image.
