Removal And Installation

VACUUM LINES


Removal and Installation


REMOVAL
1. Remove the engine cover. Exploded View.
2. Remove the cowl top cover. Exploded View.
3. Remove the vacuum hose and tube.

INSTALLATION
Note the following, install in the reverse order of removal.
- Because vacuum hose contains a check valve, it must be installed in the correct position. Refer to the stamp to confirm correct installation. Brake booster will not operate normally if the hose is installed in the wrong direction.

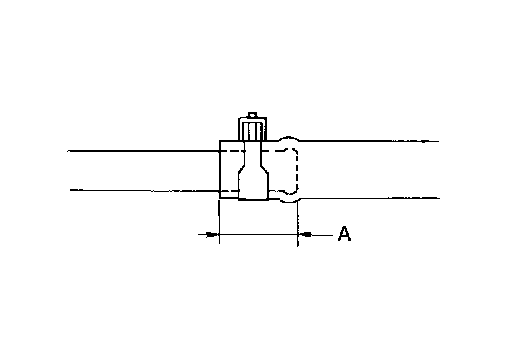

- When installing vacuum hose, insert it until its tip reaches the back-end of length (A) or further as shown in the figure.

Standard
A :24 mm (0.95 in) or more

- Face the marking side up when assembling.

CAUTION:
Never use lubricating oil during assembly.
