VDC Off Indicator Lamp

VDC OFF INDICATOR LAMP

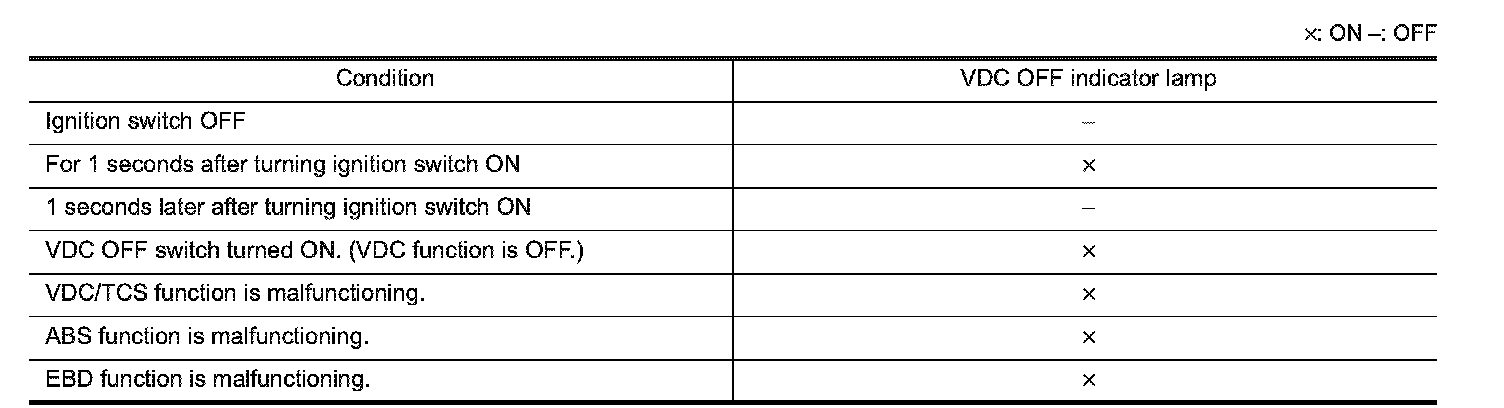

Description









Component Function Check
1.VDC OFF INDICATOR LAMP OPERATION CHECK 1
Check that the lamp illuminates for approximately 1 seconds after the ignition switch is turned ON.
Is the inspection result normal?
YES - GO TO 2.
NO - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
2.VDC OFF INDICATOR LAMP OPERATION CHECK 2
Check that the VDC OFF indicator lamp in the combination meter turns ON/OFF correctly when operating the
VDC OFF switch.
Is the inspection result normal?
YES - INSPECTION END
NO - Check VDC OFF switch. VDC Off Switch.




Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis for "ABS" with CONSULT-III.
Is any DTC detected?
YES - Check the DTC.
NO - GO TO 2.
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. Consult-III Function.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Exploded View VDC/TCS/ABS.
NO - Repair or replace error-detected parts.




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Special Repair Requirement
- END
