Removal And Installation

TRUNK LID OPENER REQUEST SWITCH


Removal and Installation


REMOVAL

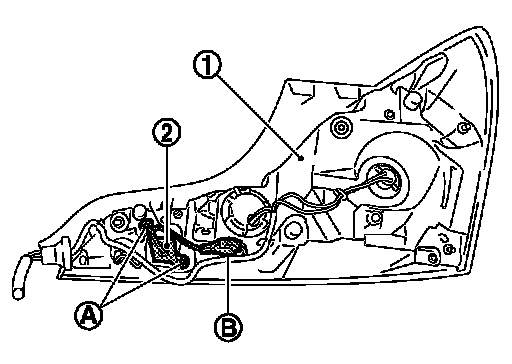

1. Remove the rear combination lamp LH (1). Removal And Installation Xenon Type.





2. Remove the trunk lid opener request switch connector (B).
3. Remove the trunk lid opener request switch mounting screw (A), and then remove trunk lid opener request switch (2) from rear combination lamp LH.

INSTALLATION
Install in the reverse order of removal.
