Removal And Installation

TRUNK LID OPENER CANCEL SWITCH


Removal and Installation


REMOVAL
1. Remove the instrument assist lower panel. Removal And Installation A/T Models.

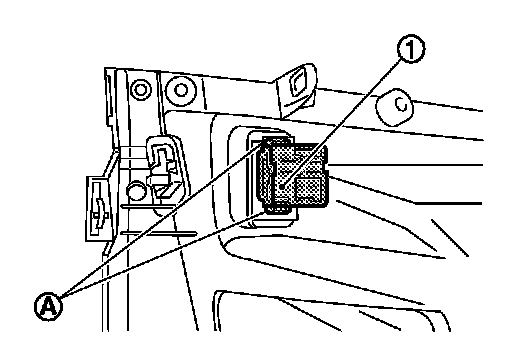

2. Remove the trunk lid opener cancel switch (1) from instrument assist lower panel, and then remove pawl (A). Press trunk lid opener cancel switch back side to disengage from instrument assist lower panel.

INSTALLATION
Install in the reverse order of removal.
