Passenger Side

HEATED SEAT SWITCH INDICATOR - PASSENGER SIDE





Description
Illuminates the indicator that indicates the operating status of heated seat.




Component Function Check
1.CHECK FUNCTION
Check that the related indicator lamp illuminates when heated seat switch is set to ON.
Is the inspection result normal?
YES - Heated seat switch indicator function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK HEATED SEAT SWITCH INDICATOR GROUND CIRCUIT
1. Turn ignition switch OFF
2. Disconnect heated seat switch connector.

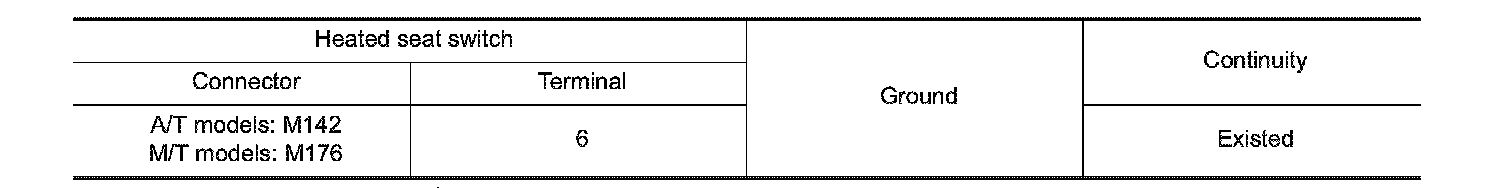

3. Check continuity between heated seat switch harness connector and ground.





Is the inspection result normal?
YES - Replace heated seat switch. Removal And Installation.
NO - Repair or replace harness.
