Driver Side

SLIDING SWITCH - DRIVER SIDE





Description
- Sliding switch is equipped to the power seat switch on the seat cushion side surface.
- The operation signal is input to the driver seat control unit when the sliding switch is operated.




Component Function Check
1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "SLIDE SW-FR", "SLIDE SW-RR" in the "Data monitor" mode using CONSULT-III.

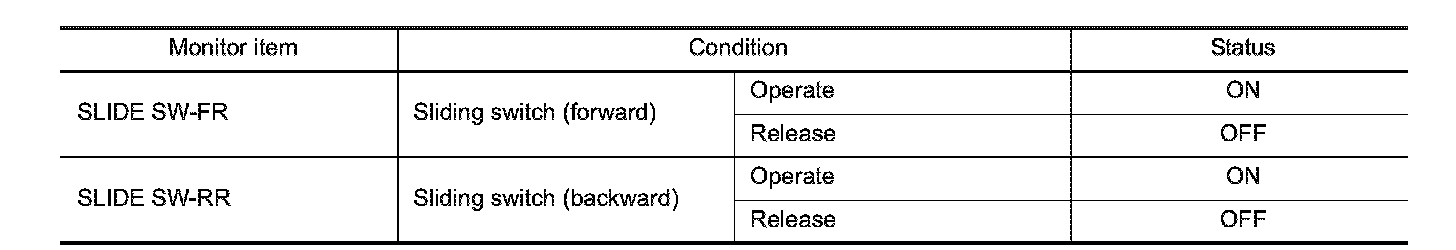

3. Check sliding switch signal under the following conditions.





Is the indication normal?
YES - Sliding switch function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK SLIDING SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

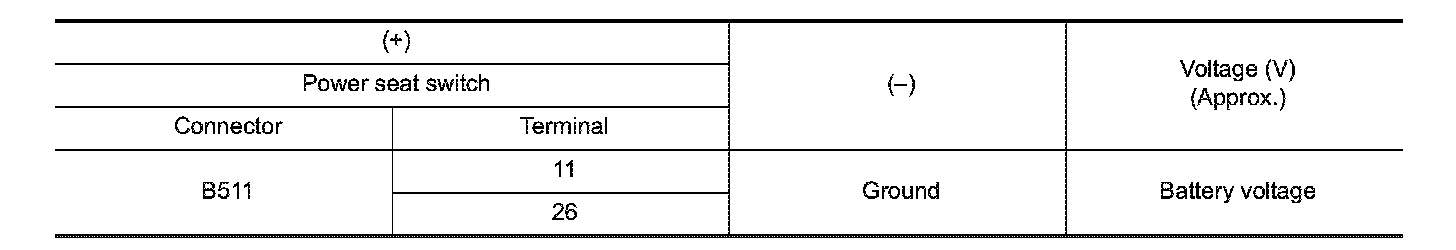

3. Check voltage between power seat switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK SLIDING SWITCH CIRCUIT
1. Disconnect driver seat control unit connector.

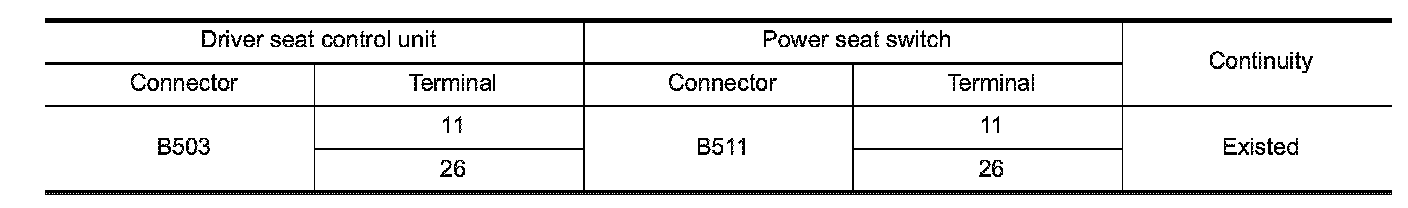

2. Check continuity between driver seat control unit harness connector and power seat switch harness connector.

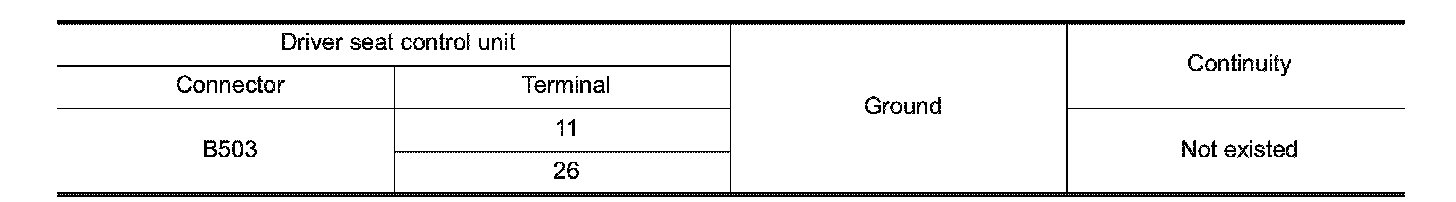

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Removal And Installation.
NO - Repair or replace harness.
3.CHECK SLIDING SWITCH
Check sliding switch. SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 4.
NO - Replace power seat switch. Power Seat Switch.
4.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK SLIDING SWITCH
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

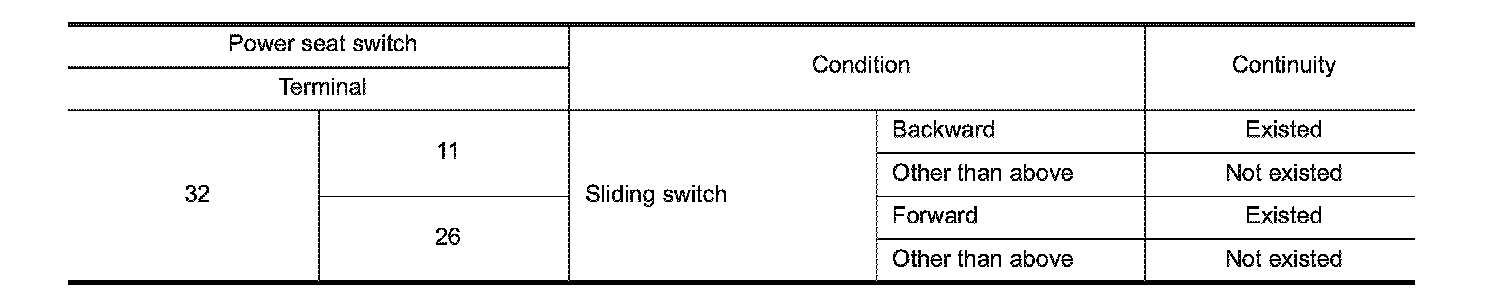

3. Check continuity between power seat switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace power seat switch. Power Seat Switch.
