SLIDING LIMIT SWITCH - PASSENGER SIDE





Description
- Sliding limit switch is installed on seat cushion frame.
- Sliding limit switch detects condition of seat sliding.




Component Function Check
1.CHECK FUNCTION
Check whether or not power walk-in function activates normally when power walk-in switch is pressed.
Is the inspection result normal?
YES - Sliding limit switch function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK SLIDING LIMIT SWITCH SIGNAL
1. Turn ignition switch OFF.

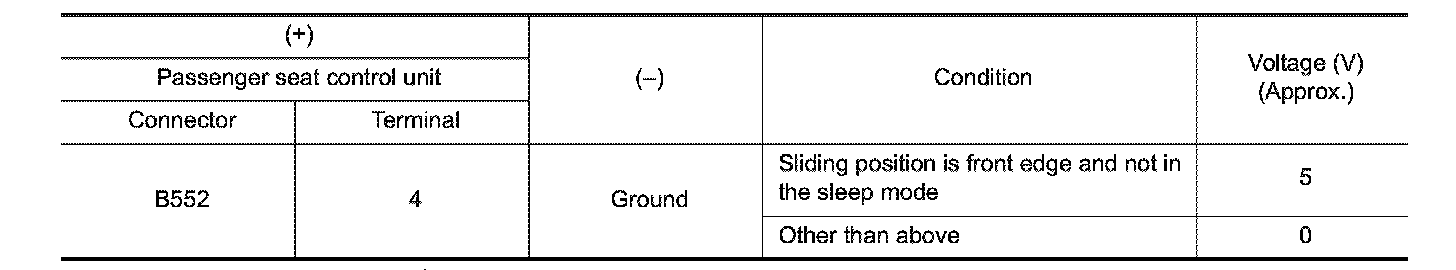

2. Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - Sliding switch circuit is OK.
NO - GO TO 2.
2.CHECK SLIDING LIMIT SWITCH CIRCUIT
1. Disconnect passenger seat control unit connector and sliding limit switch connector.

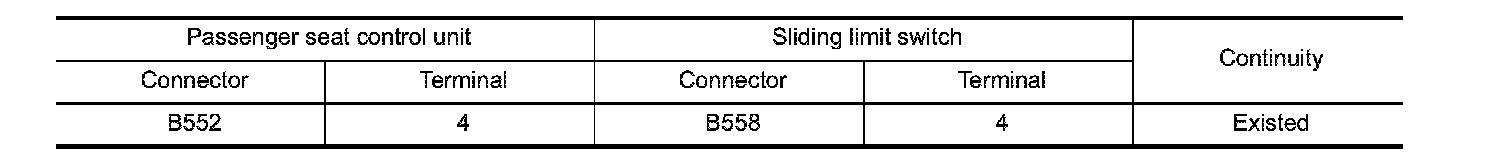

2. Check continuity between passenger seat control unit harness connector and sliding limit switch harness connector.

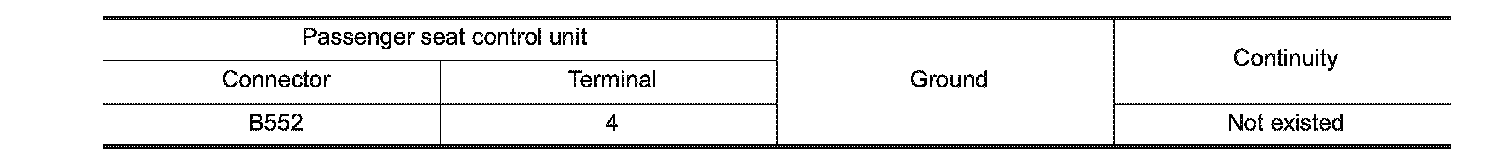

3. Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK SLIDING LIMIT SWITCH GROUND CIRCUIT

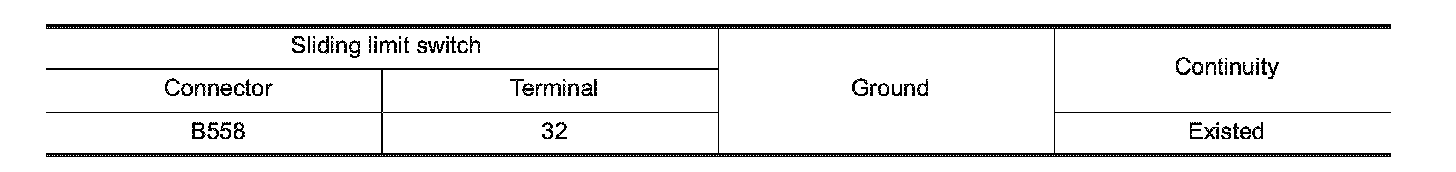

Check continuity between sliding limit switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK SLIDING LIMIT SWITCH
Check sliding limit switch. SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace sliding limit switch. Exploded View.
5.CHECK PASSENGER SEAT CONTROL UNIT OUTPUT SIGNAL
1. Connect passenger seat control unit connector.

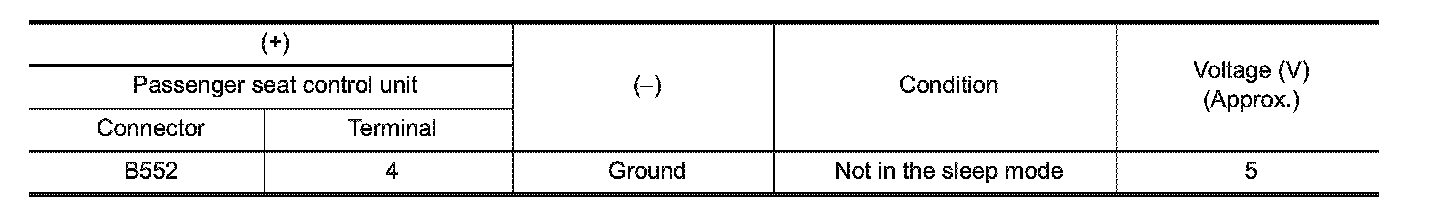

2. Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - Replace passenger seat control unit. Removal And Installation.
6.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK SLIDING LIMIT SWITCH
1. Turn ignition switch OFF.
2. Disconnect sliding limit switch connector.

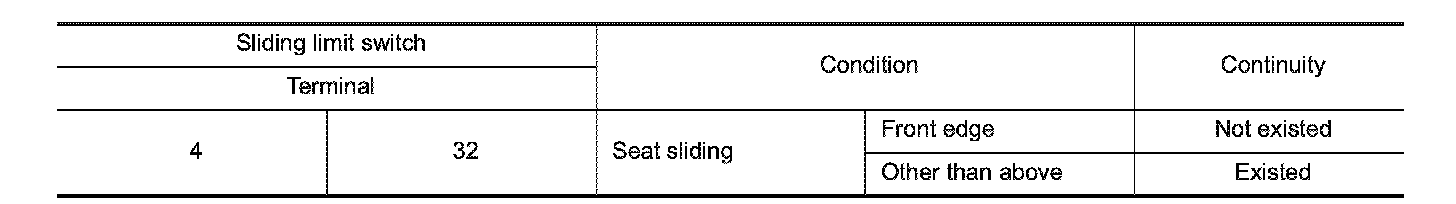

3. Check continuity between sliding limit switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace sliding limit switch. Exploded View.
