Driver Side

SEAT BELT BUCKLE SWITCH - DRIVER SIDE





Description
- Seat belt buckle switch is installed in seat belt buckle.
- Seat belt buckle switch detects condition of seat belt.




Component Function Check
1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "SEAT BELT SW" in the "Data Monitor" mode using CONSULT-III.

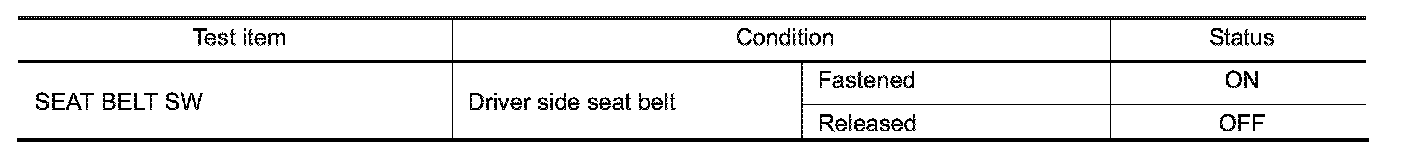

3. Check the forward switch signal under the following condition.





Is the indication normal?
YES - Seat belt buckle switch (driver side) function is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE) INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch (driver side) connector.

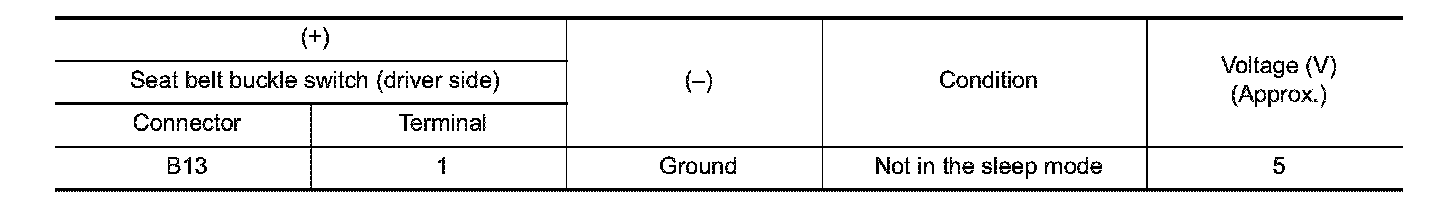

3. Check voltage between seat belt buckle switch (driver side) harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE) CIRCUIT
1. Disconnect driver seat control unit connector.

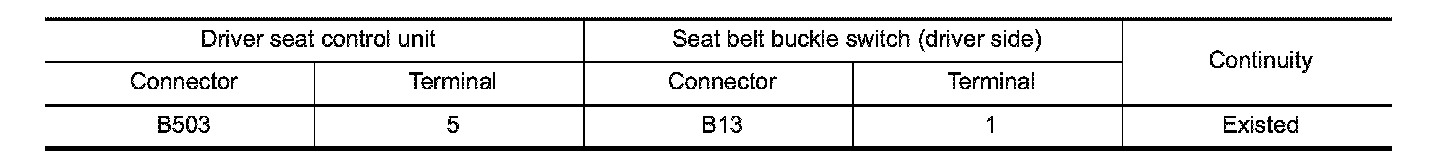

2. Check continuity between driver seat control unit harness connector and seat belt buckle switch (driver side) harness connector.

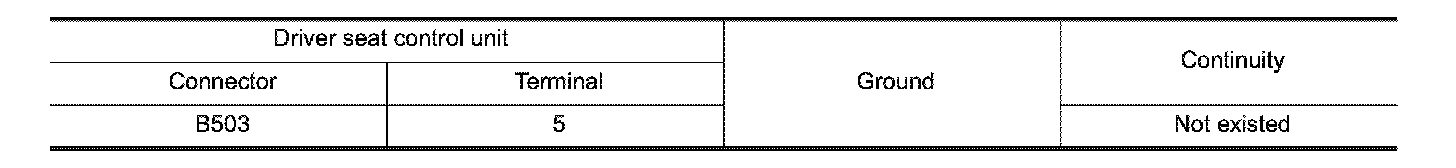

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Removal And Installation.
NO - Repair or replace harness.
3.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE) GROUND CIRCUIT

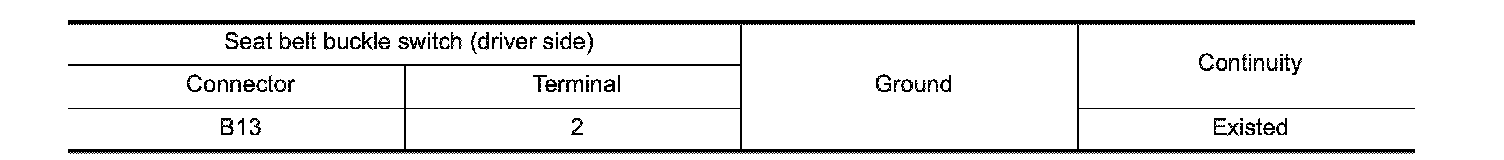

Check continuity between seat belt buckle switch (driver side) harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK SEAT BELT BUCKLE SWITCH
Check seat belt buckle switch (driver side). SEE Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace seat belt buckle switch (driver side). Exploded View.
5.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch (driver side) connector.

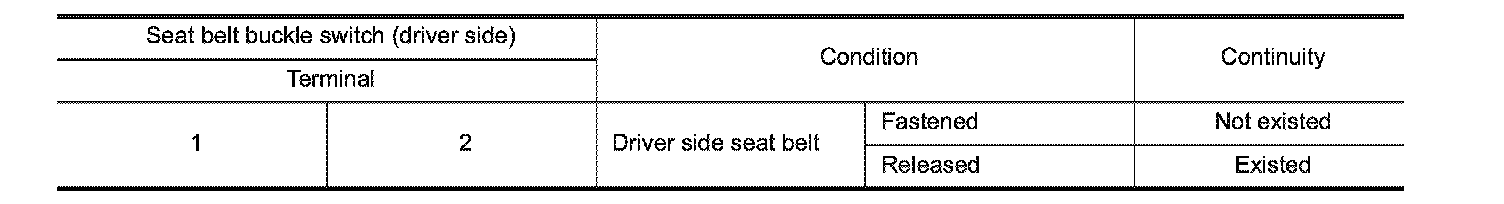

3. Check continuity between seat belt buckle switch (driver side) terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat belt buckle switch (driver side). Exploded View.
