Rear Seat

REAR SEAT


Disassembly and Assembly


SEATBACK

Disassembly
1. Remove the hog rings, and remove the seatback retainer.
2. Remove the hog rings to separate the seatback trim and seatback pad.
3. Remove seatback inner bezels (LH/RH).

Assembly
Assemble in the reverse order of disassembly.

CAUTION:
Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with the seatback frame.

SEAT CUSHION

Disassembly
1. Remove seat cushion tray.

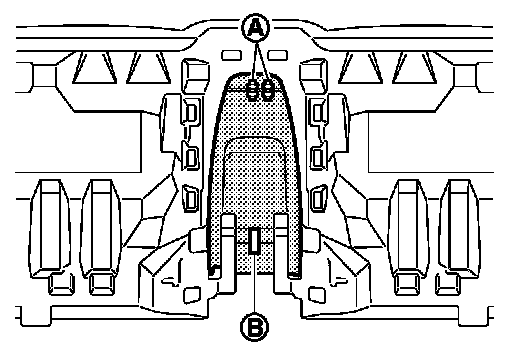

Remove the clips (A) from the seat cushion backside, and then remove hook (B) when pulling seat cushion tray.
2. Remove the seat cushion trim and seat cushion pad.
Remove the hog rings to separate the seat cushion trim and seat cushion pad.

Assembly
Assemble in the reverse order of disassembly.

CAUTION:
Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord with the seat cushion pad wire.
