Removal And Installation

CLIMATE CONTROLLED SEAT BLOWER FILTER


SEAT CUSHION : Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1. Remove the seat cushion rear finisher.

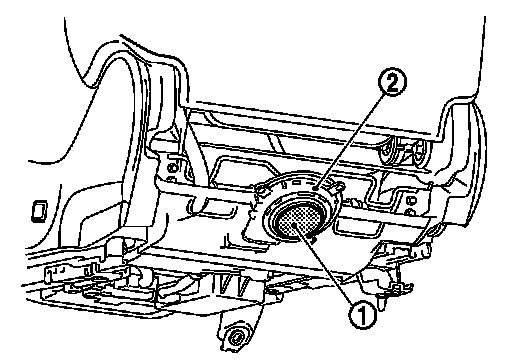

2. Turn blower filter (1) counter clockwise and remove it from climate controlled seat blower motor (2).

INSTALLATION
Install in the reverse order of removal.
