Removal And Installation

DRIVER SEAT CONTROL UNIT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

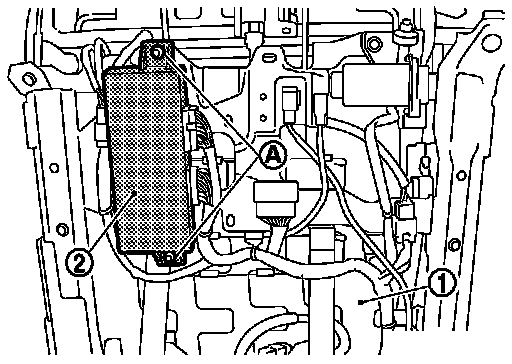

1. Remove driver seat (1). Removal and Installation.
2. Remove mounting bolts (A).
3. Remove driver seat control unit (2).

INSTALLATION
Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.

NOTE:
After installing driver seat, perform additional service when replacing control unit. Special Repair Requirement.
