Passenger Side


MIRROR SENSOR - PASSENGER SIDE





Description
- The mirror sensor (passenger side) is installed to the door mirror (passenger side).
- The resistance of 2 sensors (horizontal and vertical) is changed when the door mirror (passenger side) is operated.
- Automatic drive positioner control unit calculates the door mirror position according to the change of the voltage of 2 sensor input terminals.




Component Function Check
1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "MIR/SEN RH U-D", "MIR/SEN RH R-L" in the "Data monitor" using CONSULT-III.

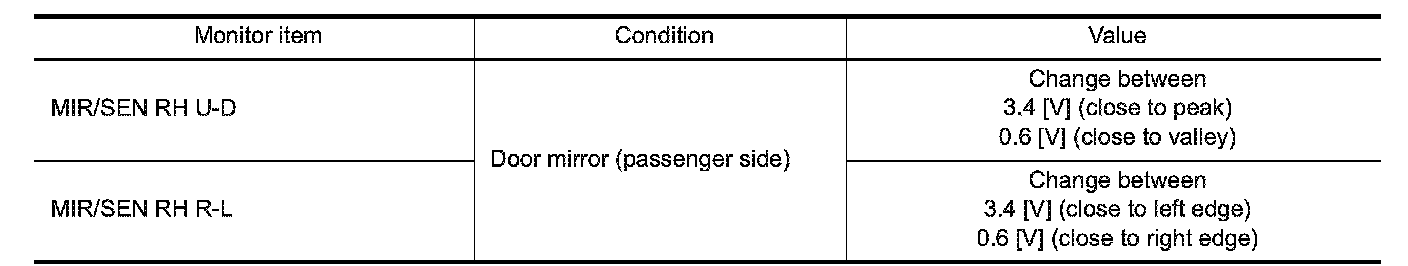

3. Check the mirror sensor (passenger side) signal under the following conditions.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK DOOR MIRROR SENSOR (PASSENGER SIDE) SIGNAL
1. Turn ignition switch ON.
2. Check voltage automatic drive positioner control unit harness connector and ground.





Is the inspection result normal?
YES - Replace automatic drive positioner control unit. Removal And Installation.
NO - GO TO 2.
2.CHECK DOOR MIRROR (PASSENGER SIDE) SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (passenger side) connector.

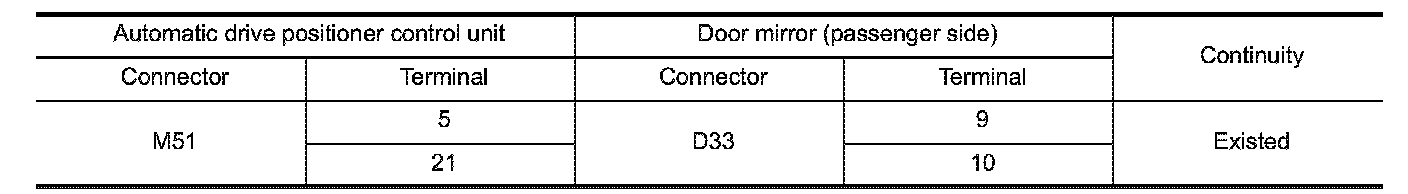

3. Check continuity between automatic drive positioner control unit harness connector and door mirror (passenger side) harness connector.





4. Check continuity between automatic drive positioner control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK DOOR MIRROR SENSOR (PASSENGER SIDE) POWER SUPPLY
1. Connect automatic drive positioner control unit connector.
2. Turn ignition switch ON.

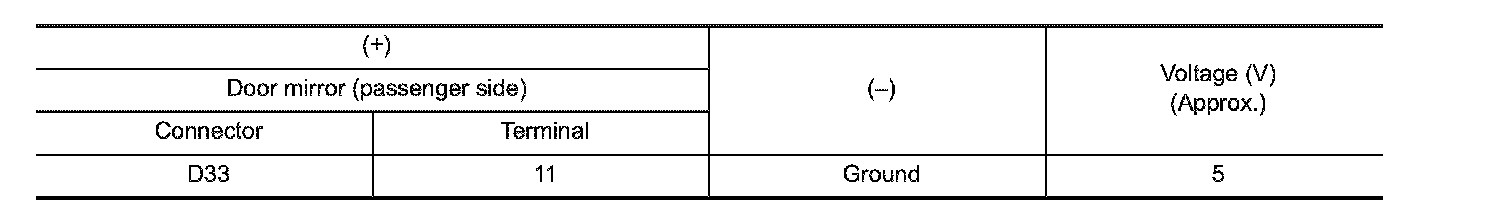

3. Check voltage between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK DOOR MIRROR (PASSENGER SIDE) SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector, tilt&telescopic switch connector and door mirror (driver side) connector.

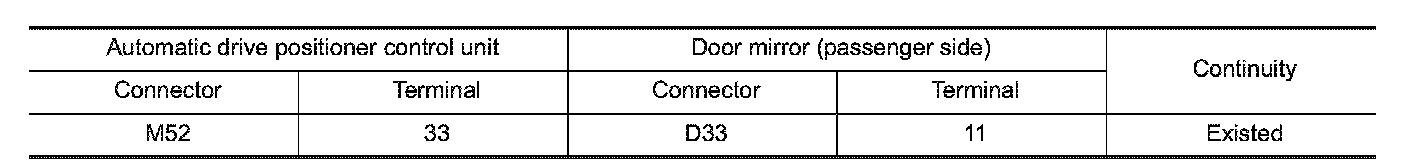

3. Check continuity between automatic drive positioner control unit harness connector and door mirror (passenger side) harness connector.

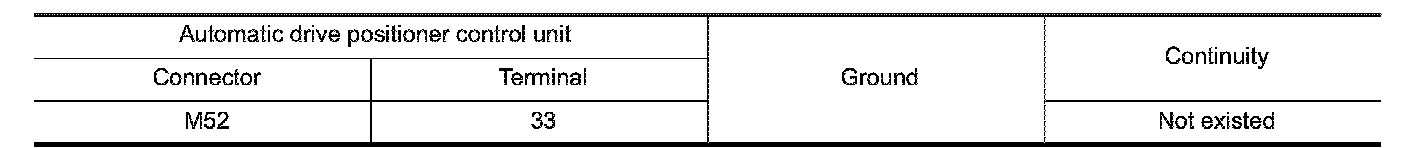

4. Check continuity between automatic drive positioner control unit harness connector and ground.





Is the inspection result normal?
YES - Replace automatic driver positioner control unit. Removal And Installation.
NO - Repair or replace harness.
5.CHECK DOOR MIRROR (PASSENGER SIDE) SENSOR GROUND 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector.

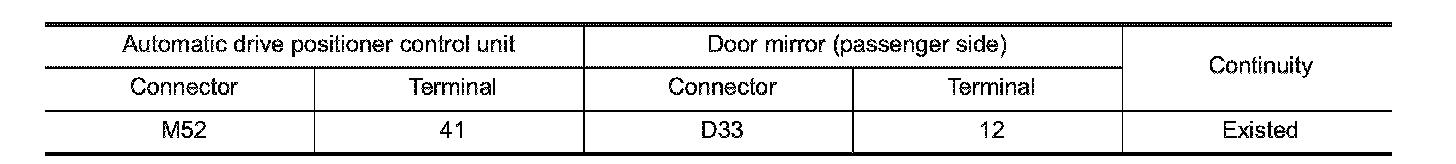

3. Check continuity between automatic drive positioner control unit harness connector and door mirror (passenger side) connector.





Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness.
6.CHECK DOOR MIRROR (PASSENGER SIDE) SENSOR GROUND 2
1. Connect automatic drive positioner control unit connector.

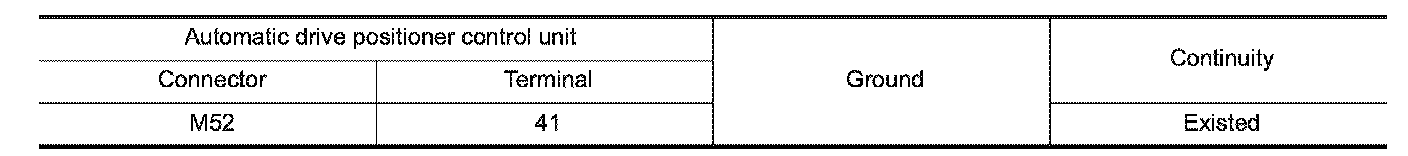

2. Check continuity between automatic drive positioner control unit harness connector and ground.





Is the inspection result normal?
YES - Replace automatic drive positioner control unit. Removal And Installation.
NO - Replace door mirror sensor (Built in passenger side door mirror). Removal And Installation.
