Home >> Infiniti >> 2011 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Power Seat For Driver Side >> Power Seat Function

Power Seat Function





POWER SEAT FOR DRIVER SIDE

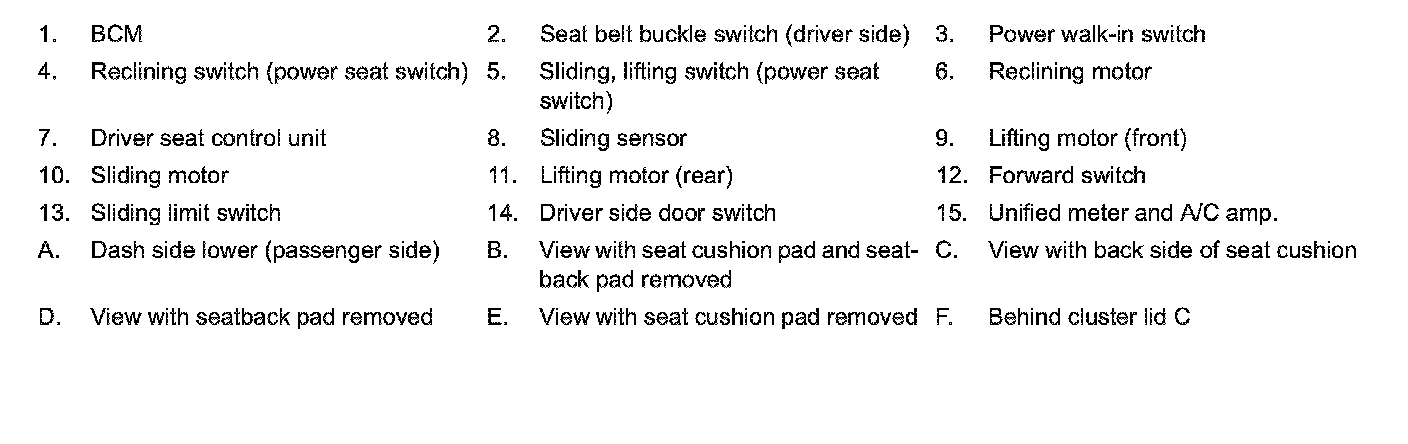

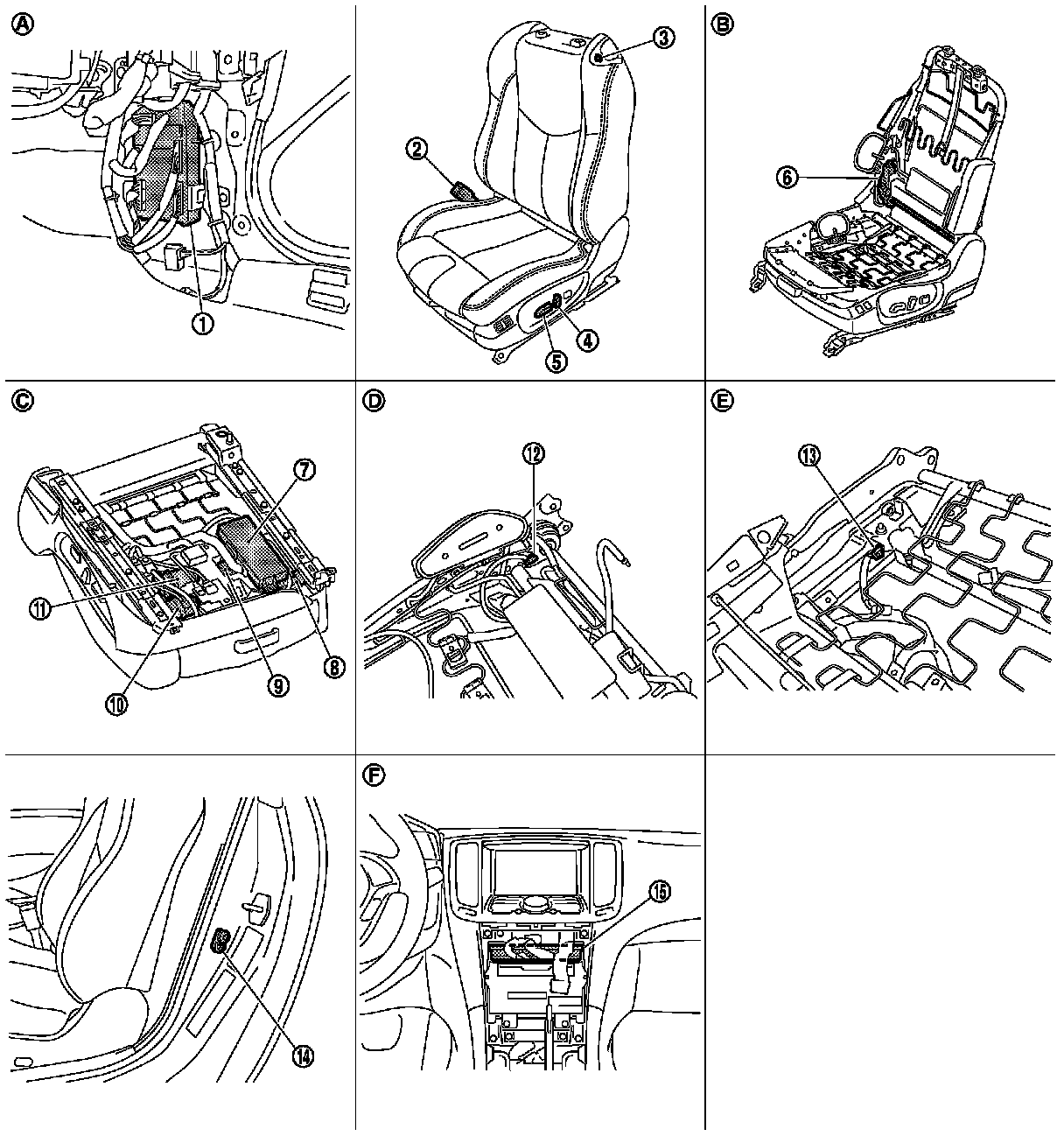

POWER SEAT FUNCTION : Component Parts Location
